Back Window Lock: Components

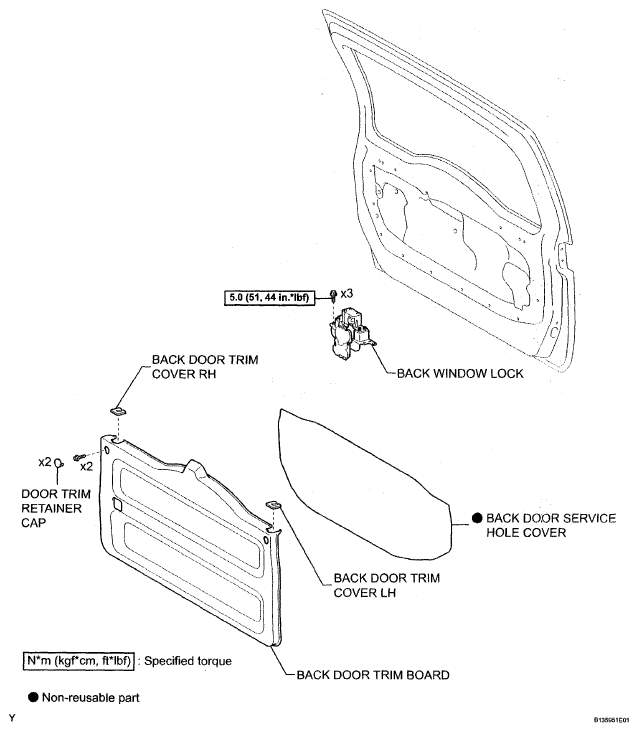

Fig 1: Back Window Lock Replacement Components With Torque Specifications
G05114390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
