Power Windows Do Not Operate At All: Wiring Diagram

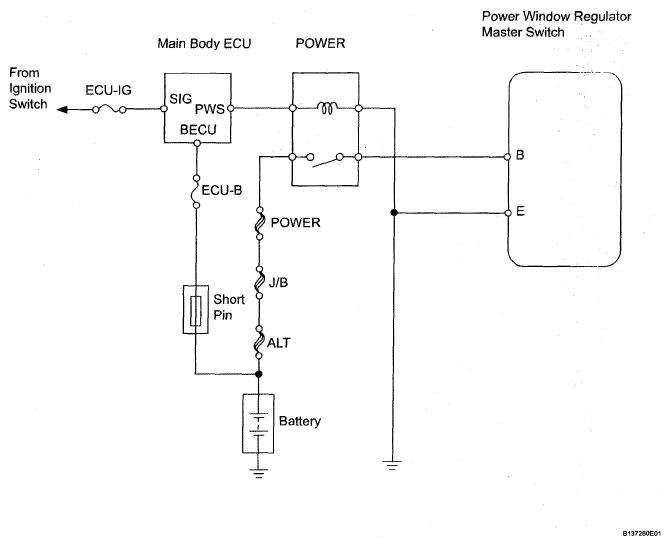

Fig 1: Identifying Power Windows Do Not Operate At All Wiring Diagram
G05114292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
