Power Window Regulator Motor: Components

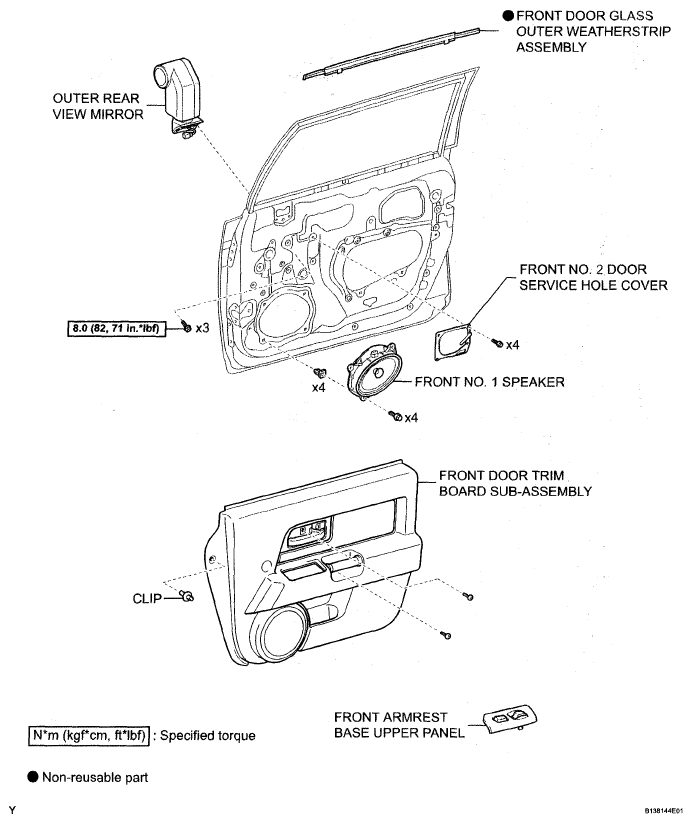

Fig 1: Power Window Regulator Motor Replacement Components With Torque Specifications (1 Of 3)
G05114306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

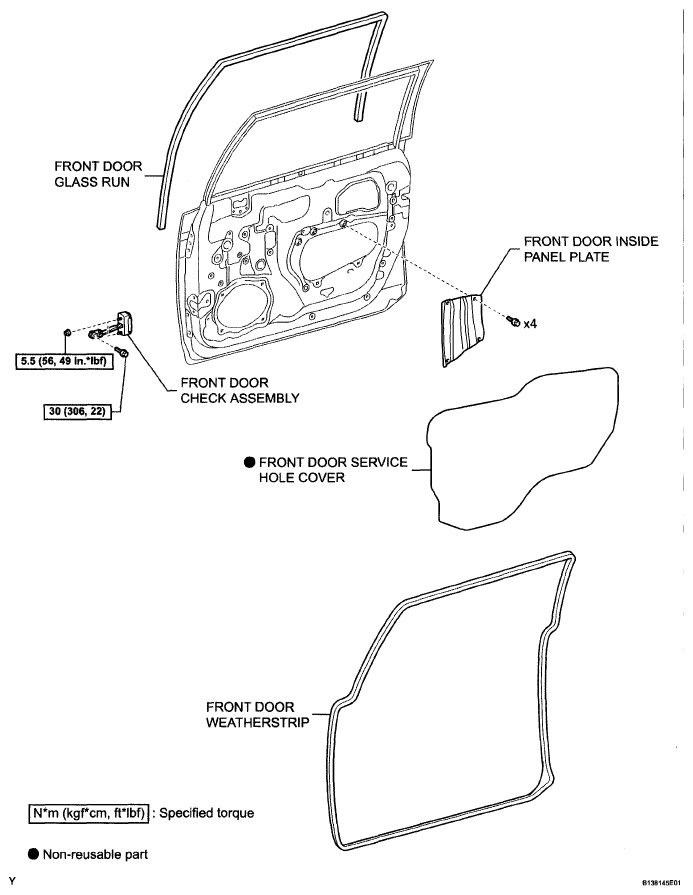

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 3)
G05114307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

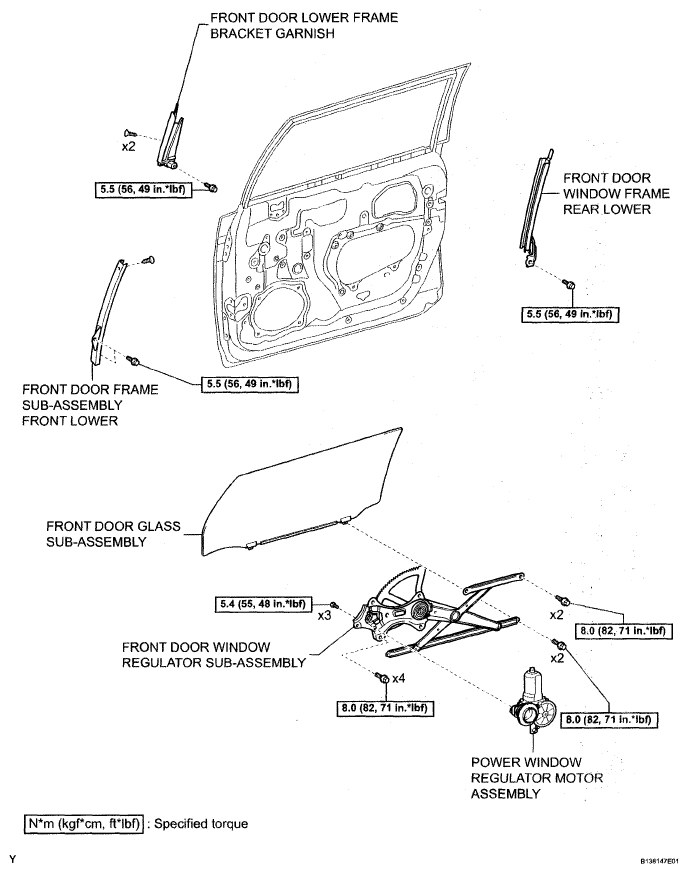

Fig 3: Power Window Regulator Motor Replacement Components With Torque Specifications (3 Of 3)
G05114308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
