DTC P0115, P0117, P0118: Engine Coolant Temperature Circuit; Engine Coolant Temperature Circuit Low Input; Engine Coolant Temperature Circuit High Input: Wiring Diagram

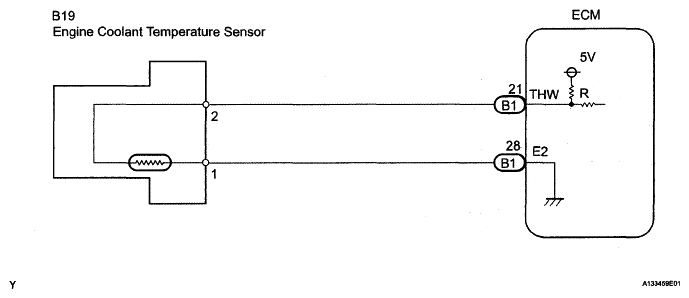

Fig 1: Identifying Engine Coolant Temperature Sensor Wiring Diagram
G05108636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
