Inspection Procedure

HINT:

Read freeze frame data using an intelligent tester. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.

1. CHECK FUSE (ETCS FUSE)
   1. Remove the ETCS fuse from the engine room R/B.
   2. Check the ETCS fuse resistance.

      Standard resistance:

      Below 1 Ω.

   3. Reinstall the ETCS fuse.

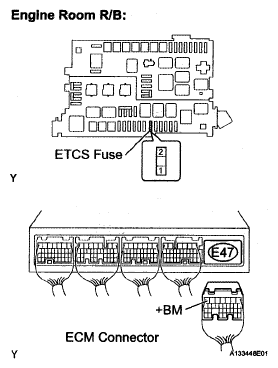

      Fig 1: Identifying ETCS Fuse

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

   OK: Go TO NEXT STEP

2. INSPECT ECM (+BM VOLTAGE)
   1. Measure the voltage between the terminals of the B2 and E47 ECM connectors.
      Fig 2: Identifying B2 & E47 ECM Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      STANDARD VOLTAGE SPECIFICATIONS



      Tester Connections	Specified Conditions
      +BM (E47-7) - ME01 (B2-3)	11 to 14 V

   OK: CHECK FOR INTERMITTENT PROBLEMS

   NG: Go TO NEXT STEP

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room R/B.
      2. Disconnect the E47 ECM connector.
      3. Check the resistance.

         Standard Resistance (Check for open)

         TESTER CONNECTIONS AND SPECIFIED CONDITIONS



         Tester Connections	Specified Conditions
         ETCS fuse (2) - +BM (E47-7)	Below 1 Ω

         Standard Resistance (Check for short)

         TESTER CONNECTIONS AND SPECIFIED CONDITIONS



         Tester Connections	Specified Conditions
         ETCS fuse (2) or +BM (E47-7) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the ECM connector.
   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room R/B.
      2. Disconnect the positive battery cable.
      3. Check the resistance.

         Standard Resistance (Check for open)

         TESTER CONNECTIONS AND SPECIFIED CONDITIONS



         Tester Connections	Specified Conditions
         Positive battery cable - ETCS fuse (1)	Below 1 Ω

         Fig 3: Identifying ETCS Fuse

         Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

         Standard Resistance (Check for short)

         TESTER CONNECTIONS AND SPECIFIED CONDITIONS



         Tester Connections	Specified Conditions
         Positive battery cable or ETCS fuse (1) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the positive battery cable.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM  (See REMOVAL  )
