DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction: Wiring Diagram

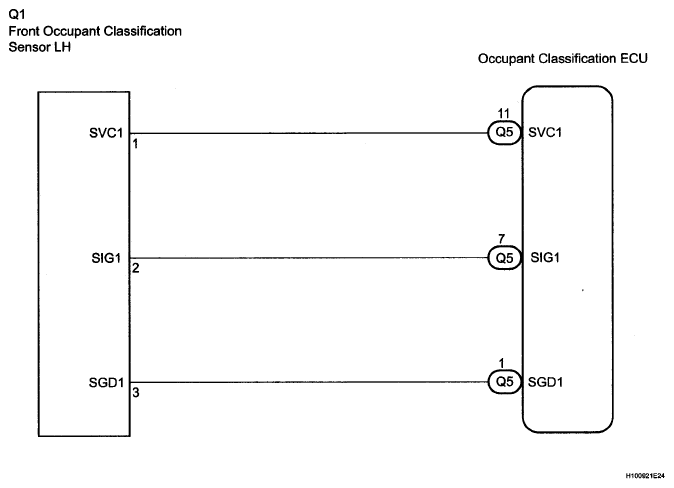

Fig 1: Identifying Front Occupant Classification Sensor LH Wiring Diagram
G05113180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
