POWER SOURCE (Current Flow Chart)
WARNING: This page is about a different variant/trim than selected.

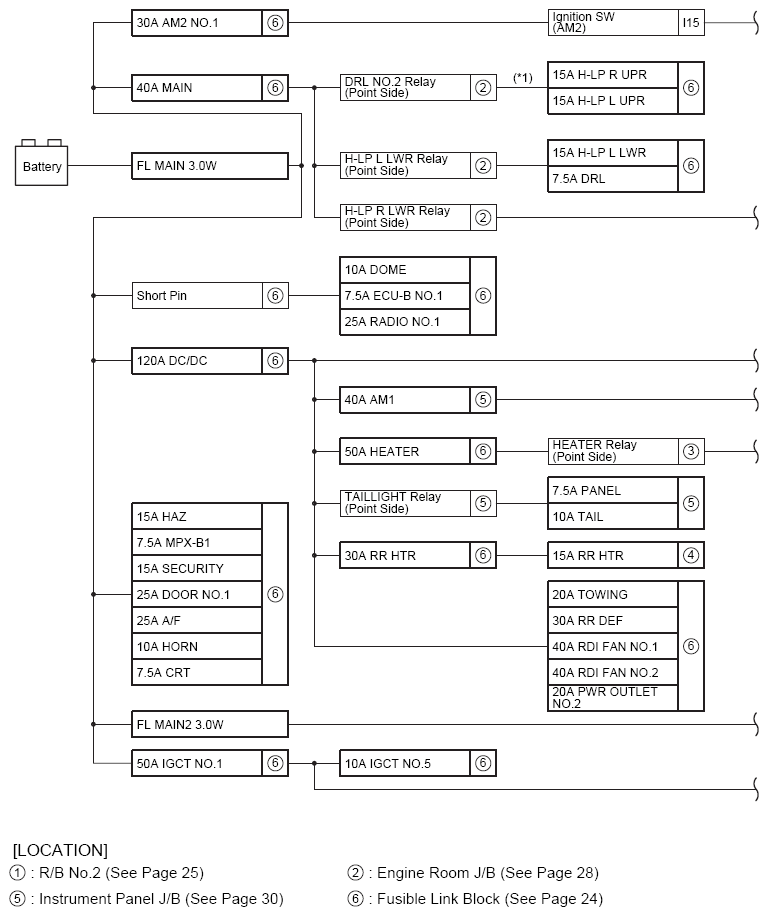

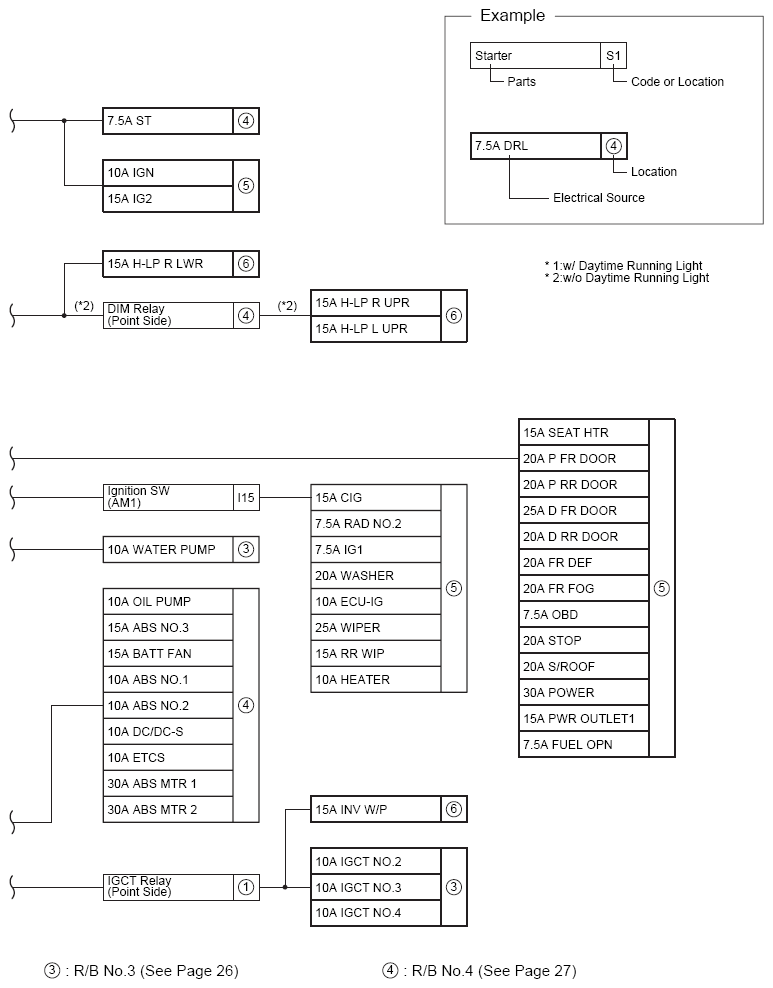

The chart below shows the route by which current flows from the battery to each electrical source (Fusible Link, Circuit Breaker, Fuse, etc.) and other Parts.
