System Diagram

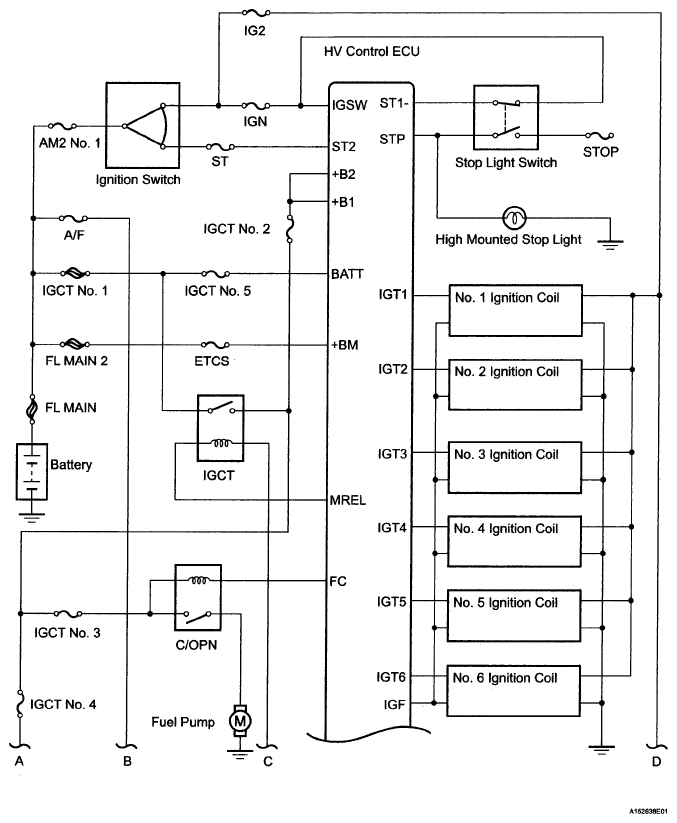

Fig 1: Engine Control System Diagram (1 Of 4)
G05199972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

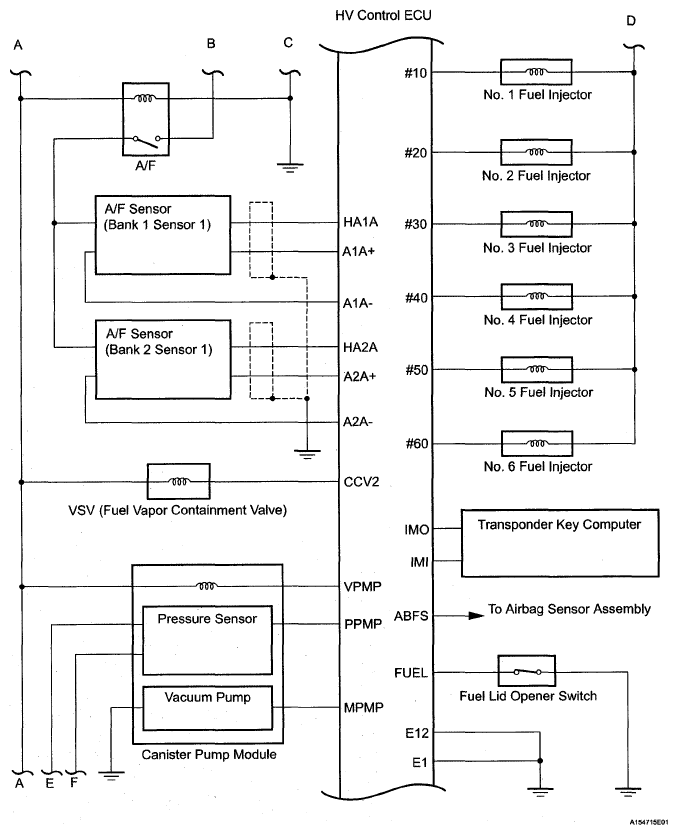

Fig 2: Engine Control System Diagram (2 Of 4)
G05199973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

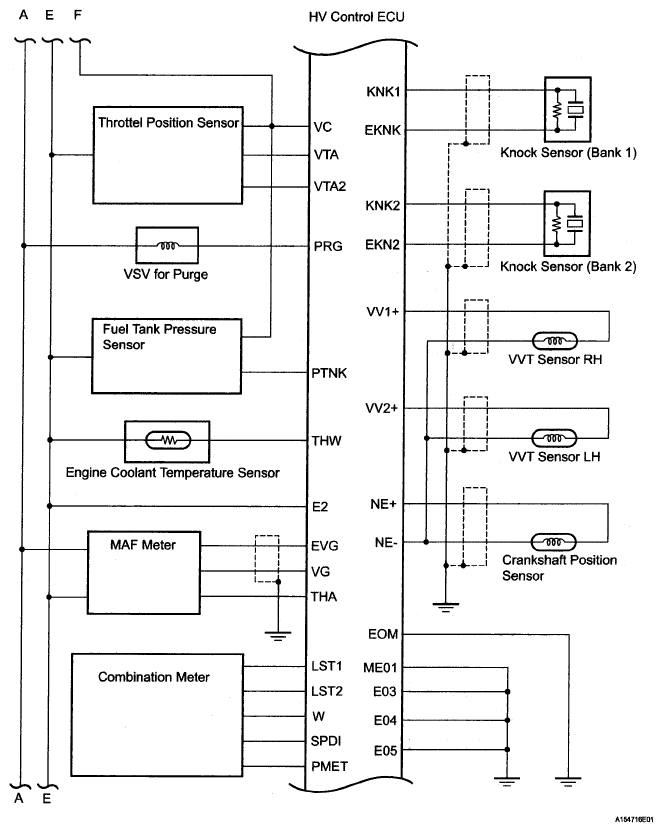

Fig 3: Engine Control System Diagram (3 Of 4)
G05199974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

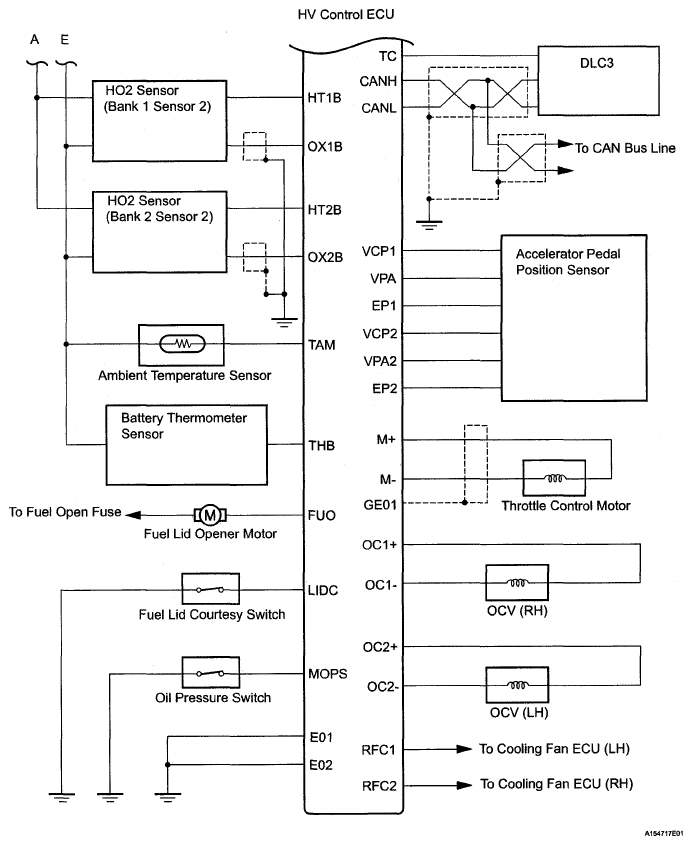

Fig 4: Engine Control System Diagram (4 Of 4)
G05199975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
