Inspection Procedure

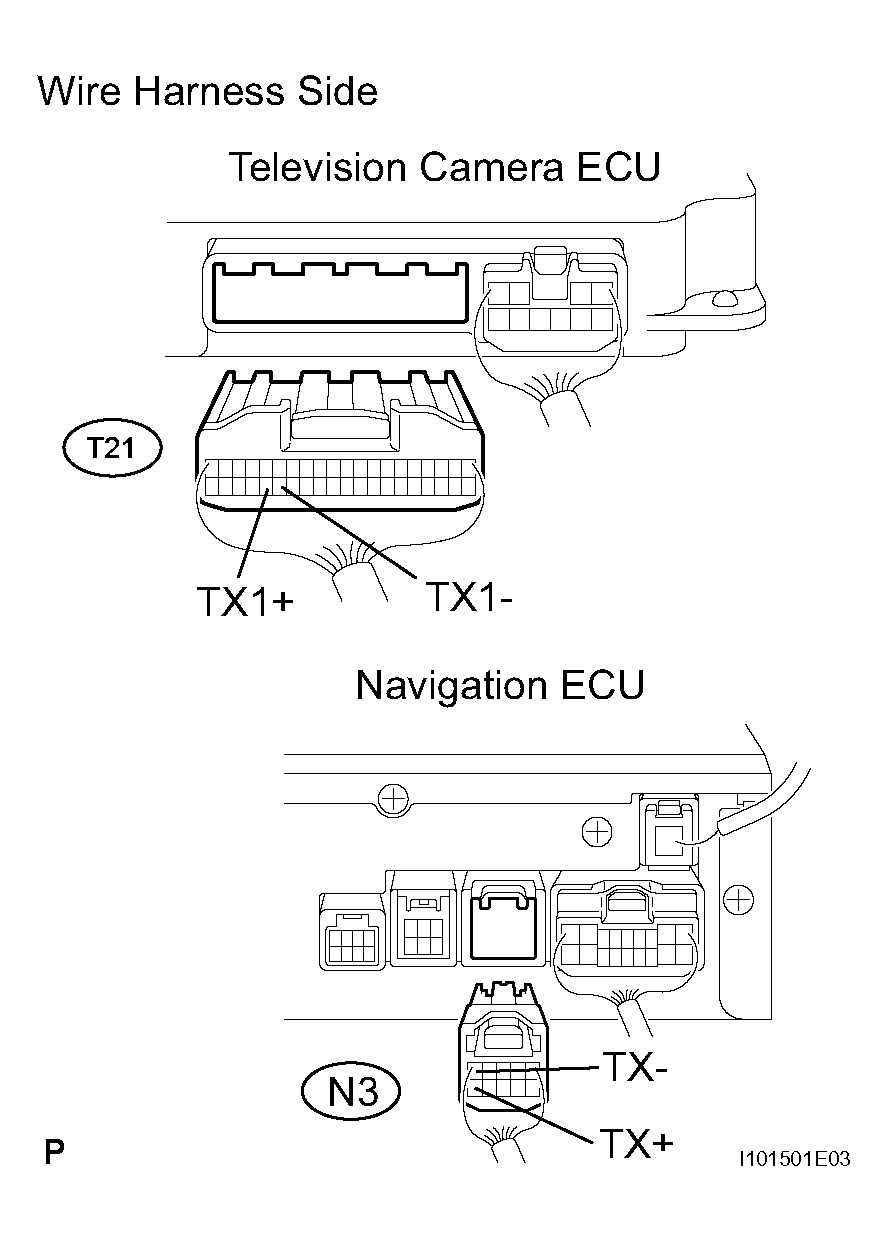

- CHECK WIRE HARNESS (TELEVISION CAMERA ECU - NAVIGATION ECU)
- Disconnect the T21 and N3 ECU connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TERMINALS RESISTANCE SPECIFICATIONTester Connection Specified Condition T21-36 (TX1+) - N3-5 (TX+) Below 1 Ω T21-35 (TX1-) - N3-10 (TX-) Below 1 Ω T21-36 (TX1+) - Body ground 10 kΩ or higher T21-35 (TX1-) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: Go To Next Step

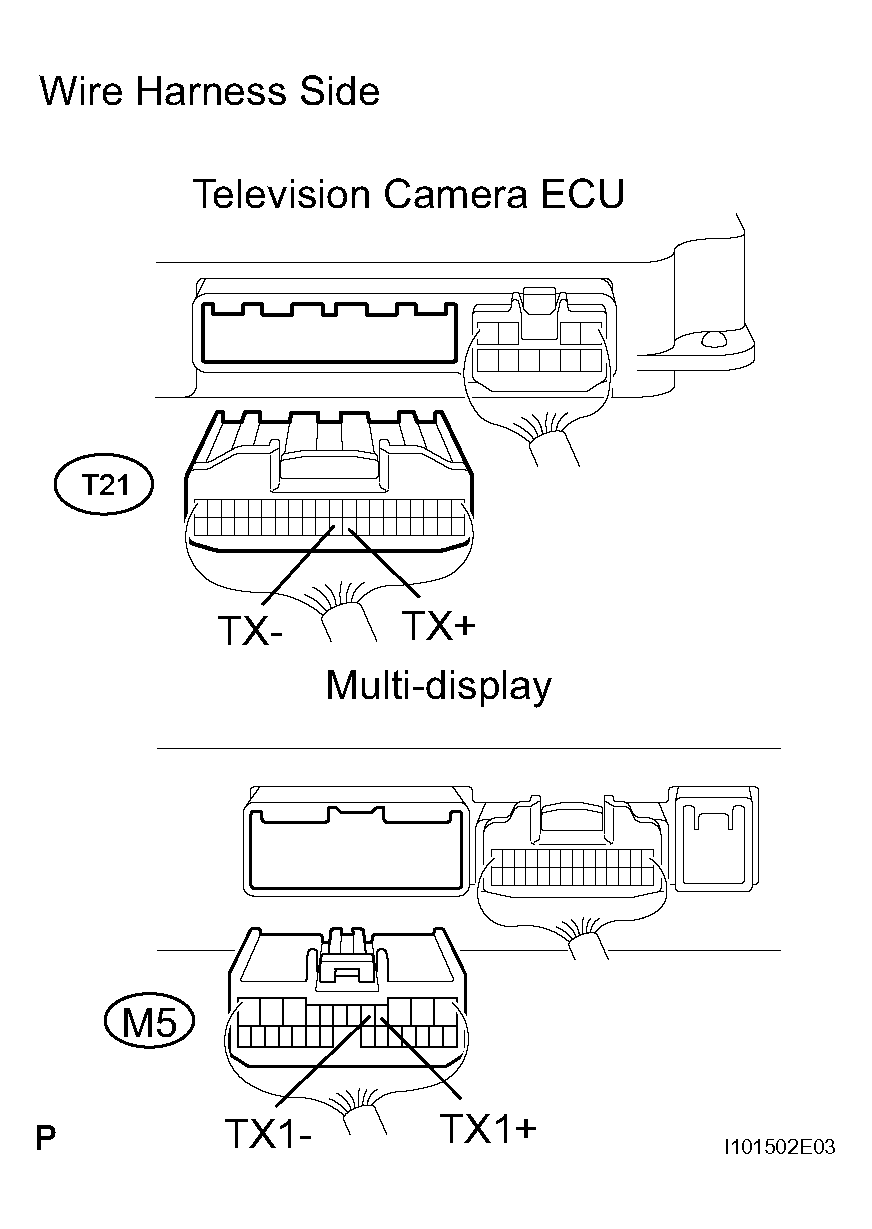

- CHECK WIRE HARNESS (TELEVISION CAMERA ECU - MULTI-DISPLAY)
- Disconnect the T21 ECU connector.
- Disconnect the M5 display connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TERMINALS RESISTANCE SPECIFICATIONTester Connection Specified Condition T21-29 (TX+) - M5-4(TX1+) Below 1 Ω T21-30 (TX-) - M5-5 (TX1-) Below 1 Ω T21-29 (TX+) - Body ground 10 kΩ or higher T21-30 (TX-) - Body ground 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
