Roof Headlining: Components

Fig 1: Identifying Roof Headlining Components & Replacements (1 Of 4)
G04439089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

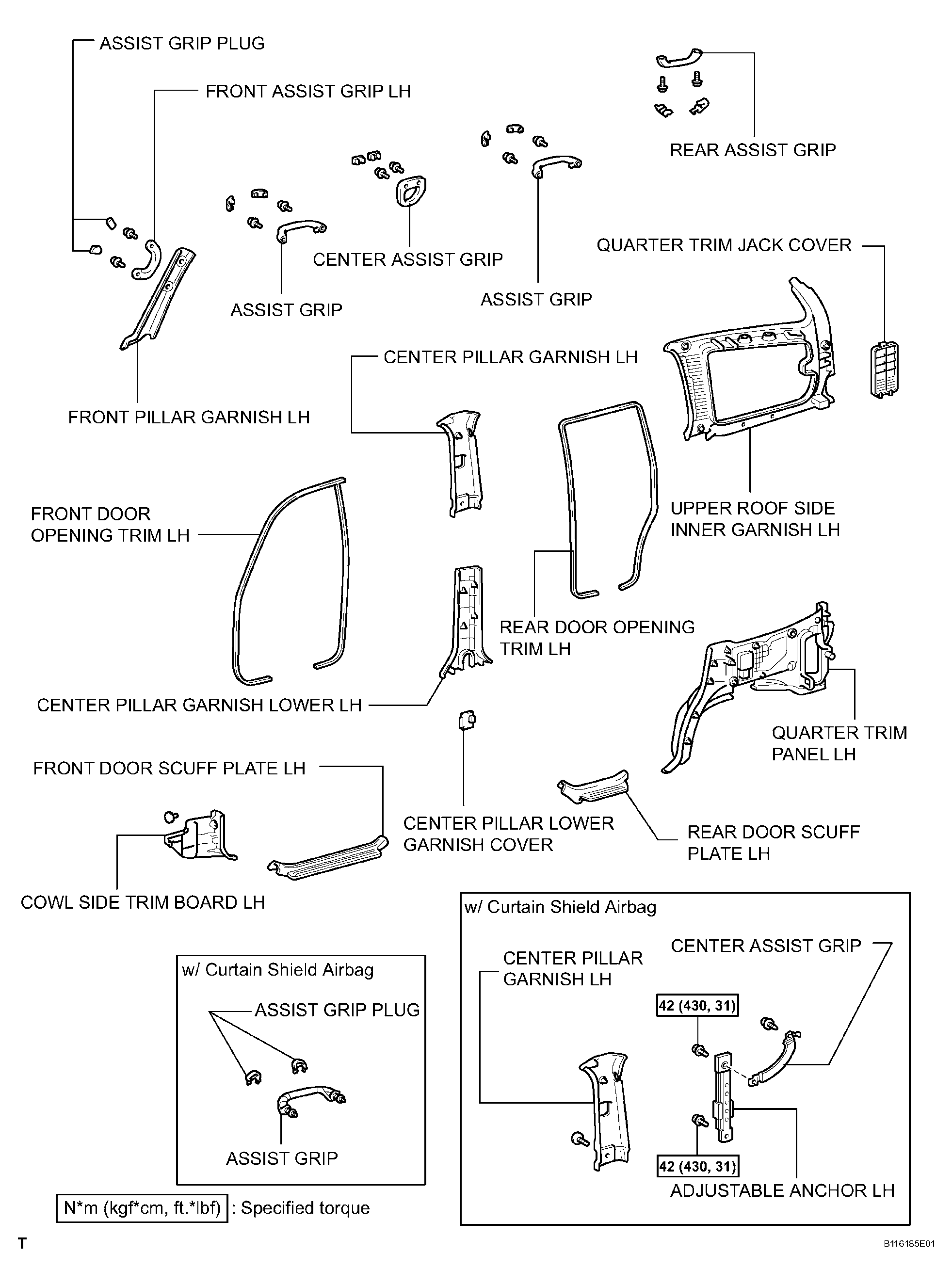

Fig 2: Identifying Roof Headlining Components & Replacements (2 Of 4)
G04439090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

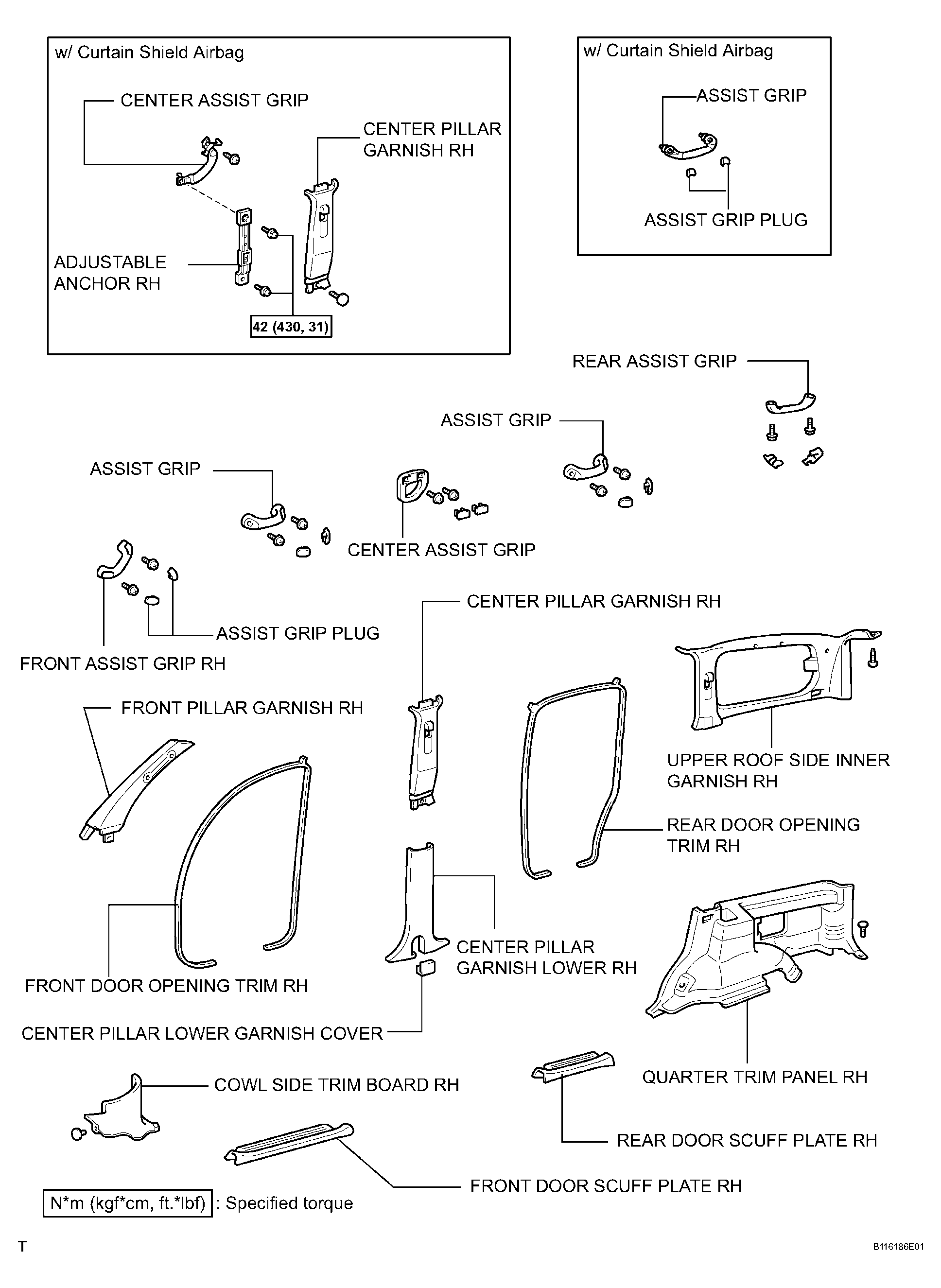

Fig 3: Identifying Roof Headlining Components & Replacements (3 Of 4)
G04439091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

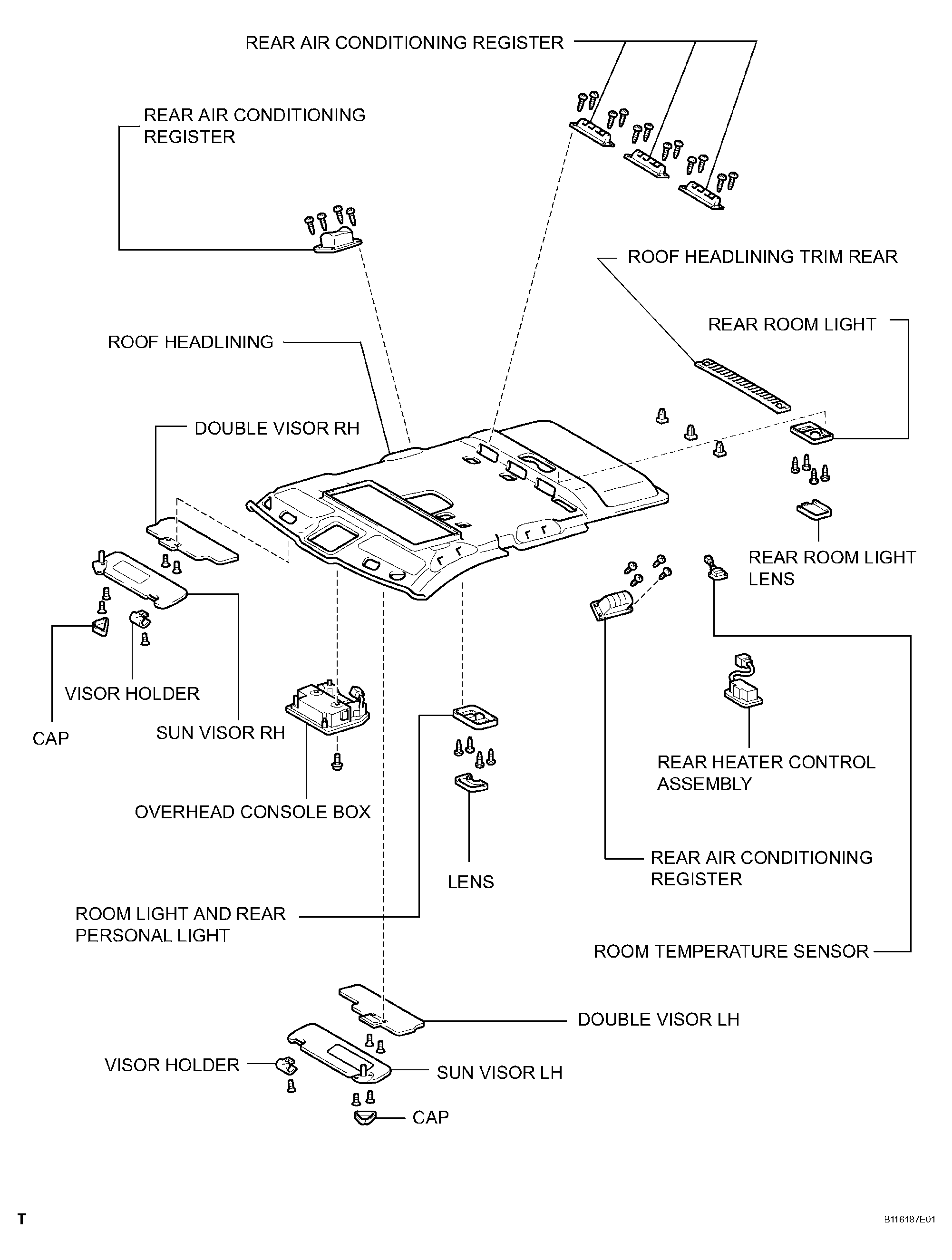

Fig 4: Identifying Roof Headlining Components & Replacements (4 Of 4)
G04439092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
