Rear Jam Protection Limit/Pulse Switch LH Circuit: Wiring Diagram

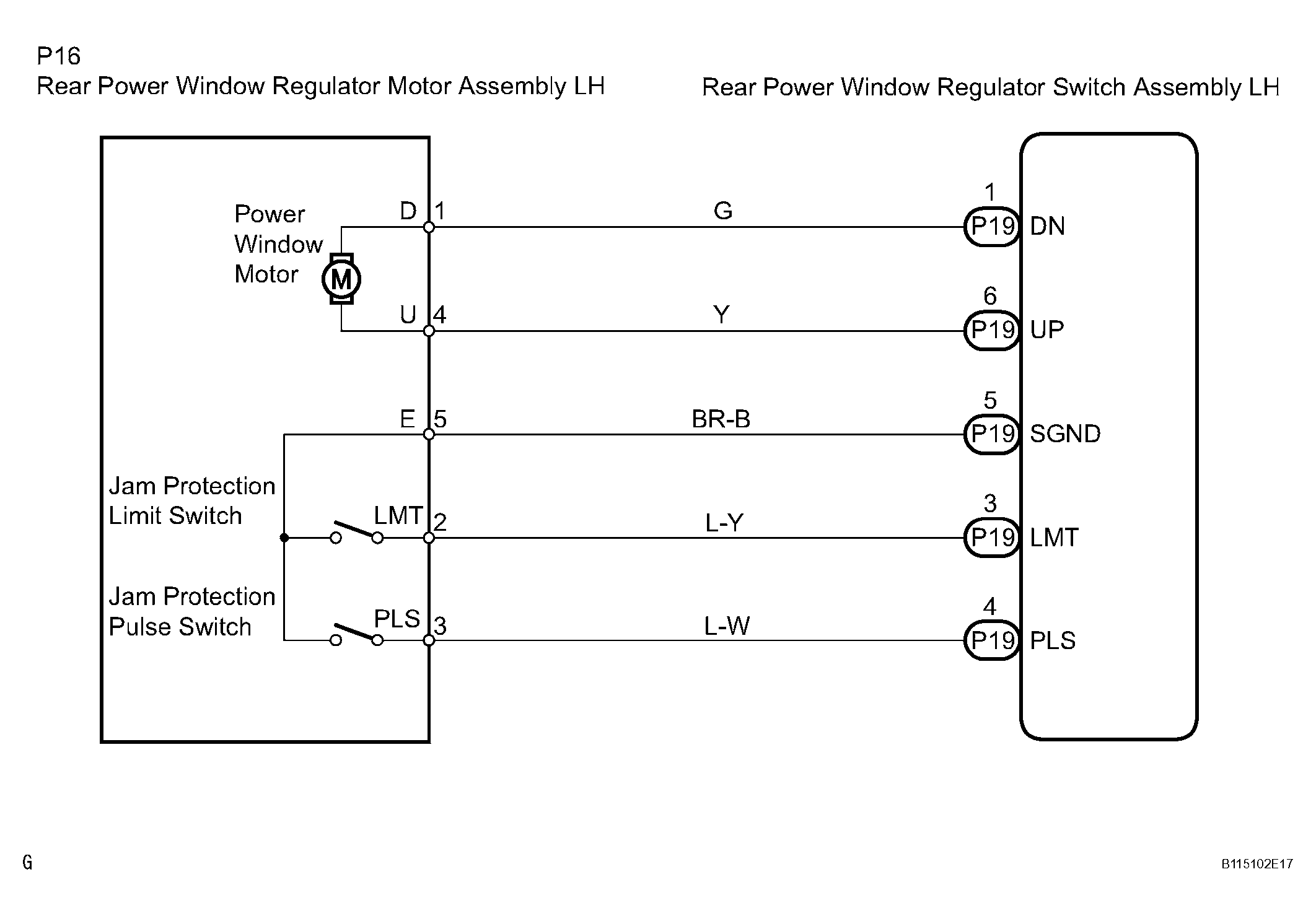

Fig 1: Rear Jam Protection Limit/Pulse Switch LH Circuit Wiring Diagram
G04443751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
