Steering Knuckle: Components

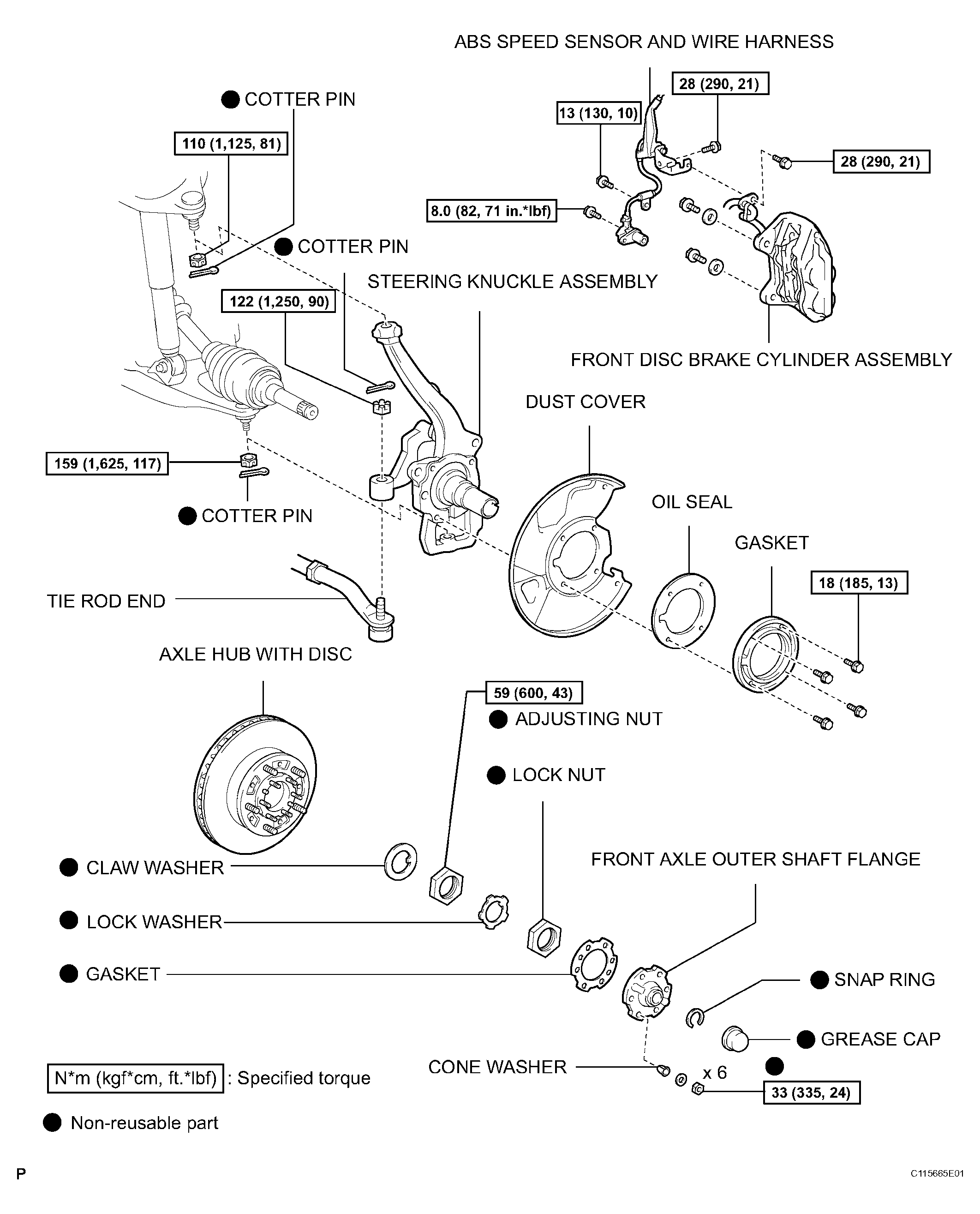

Fig 1: Exploded View Of Steering Knuckle & Torque Specifications (1 Of 2)
G04437352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

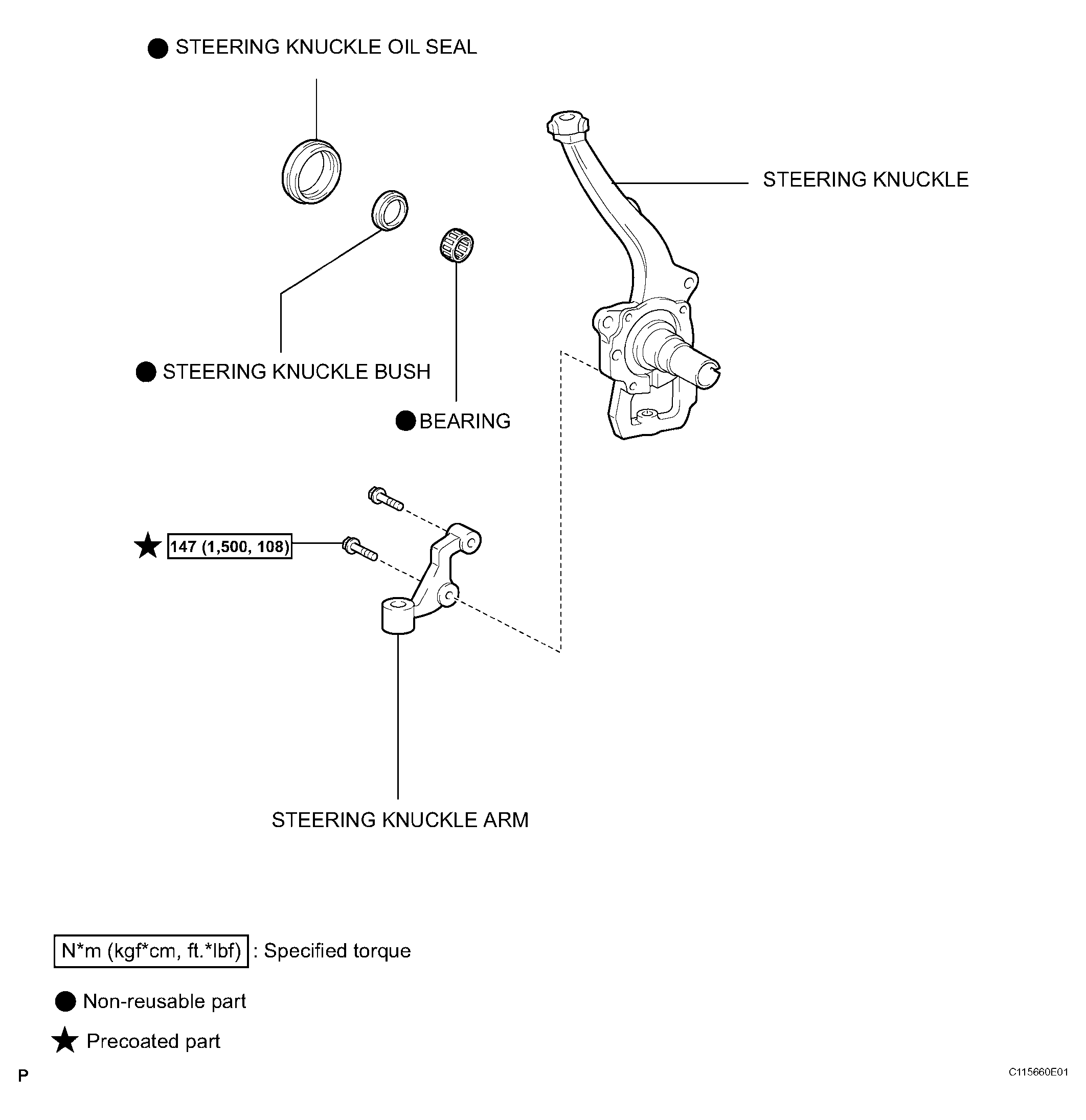

Fig 2: Exploded View Of Steering Knuckle & Torque Specifications (2 Of 2)
G04437353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
