ABS, TRAC And VSC: Notes

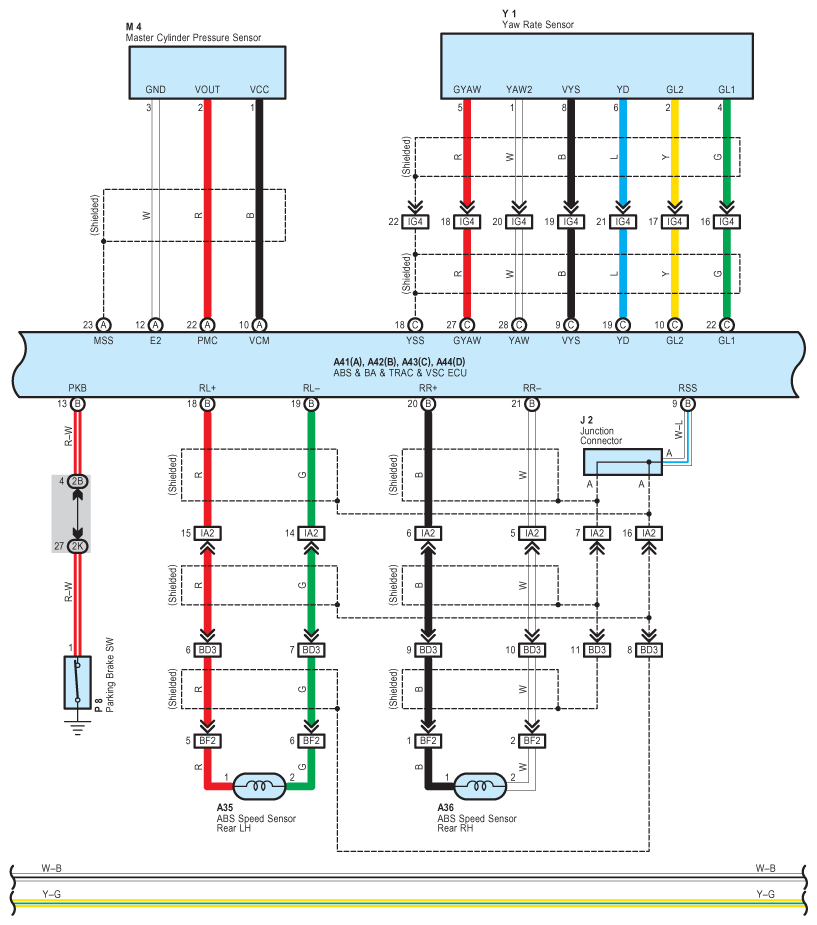

Fig 1: ABS, TRAC And VSC System Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

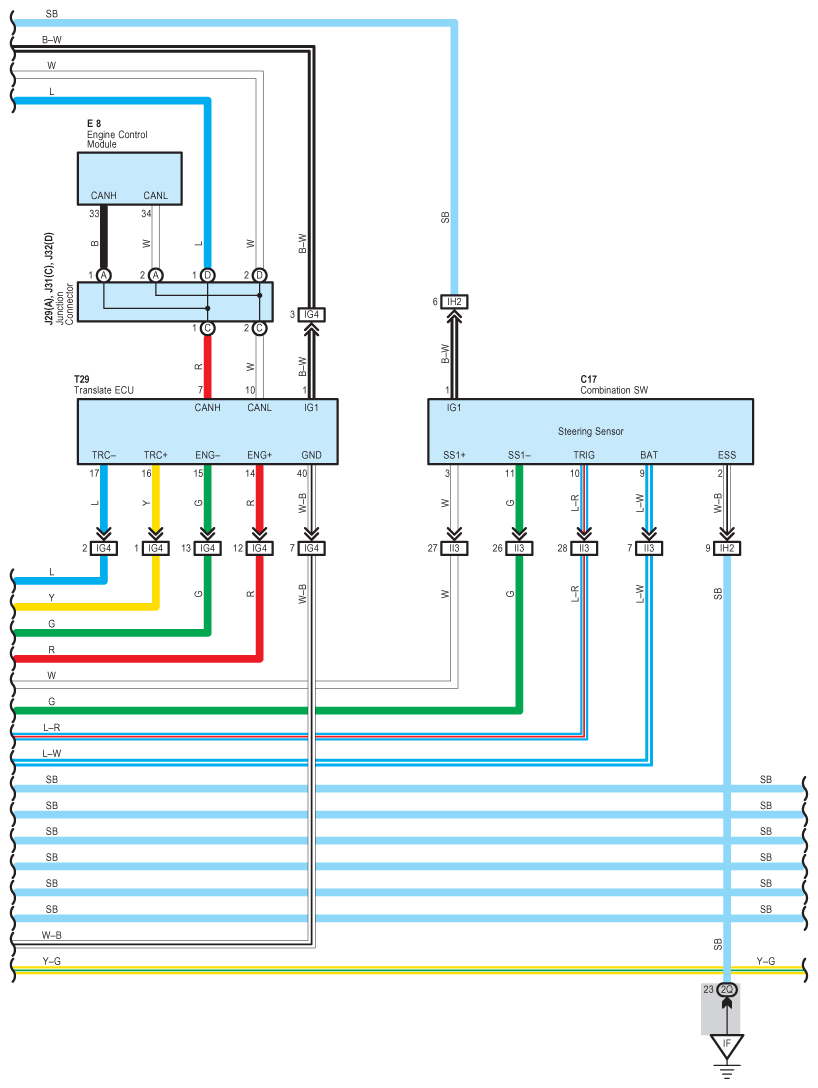

Fig 2: ABS, TRAC And VSC System Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

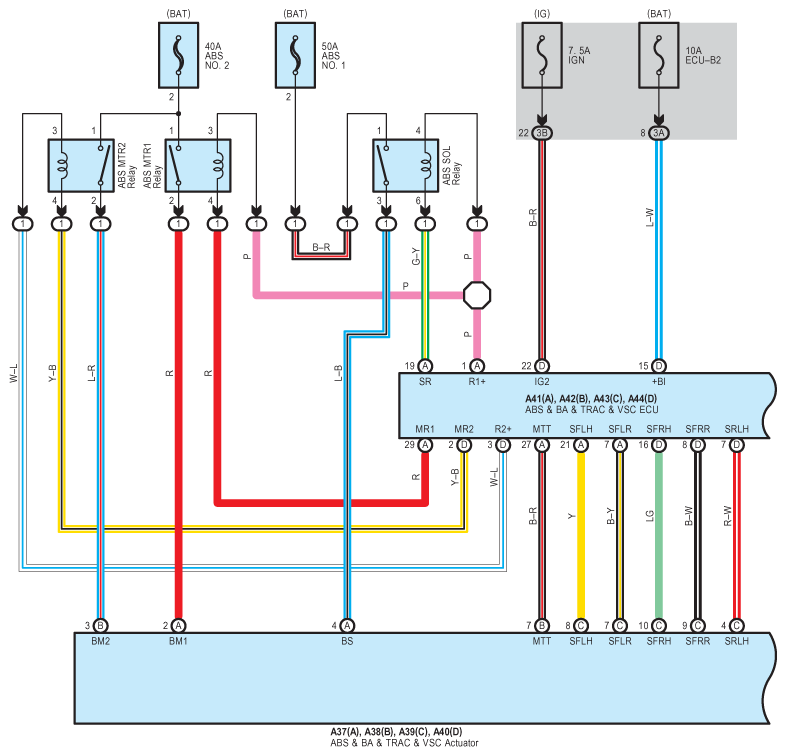

Fig 3: ABS, TRAC And VSC System Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

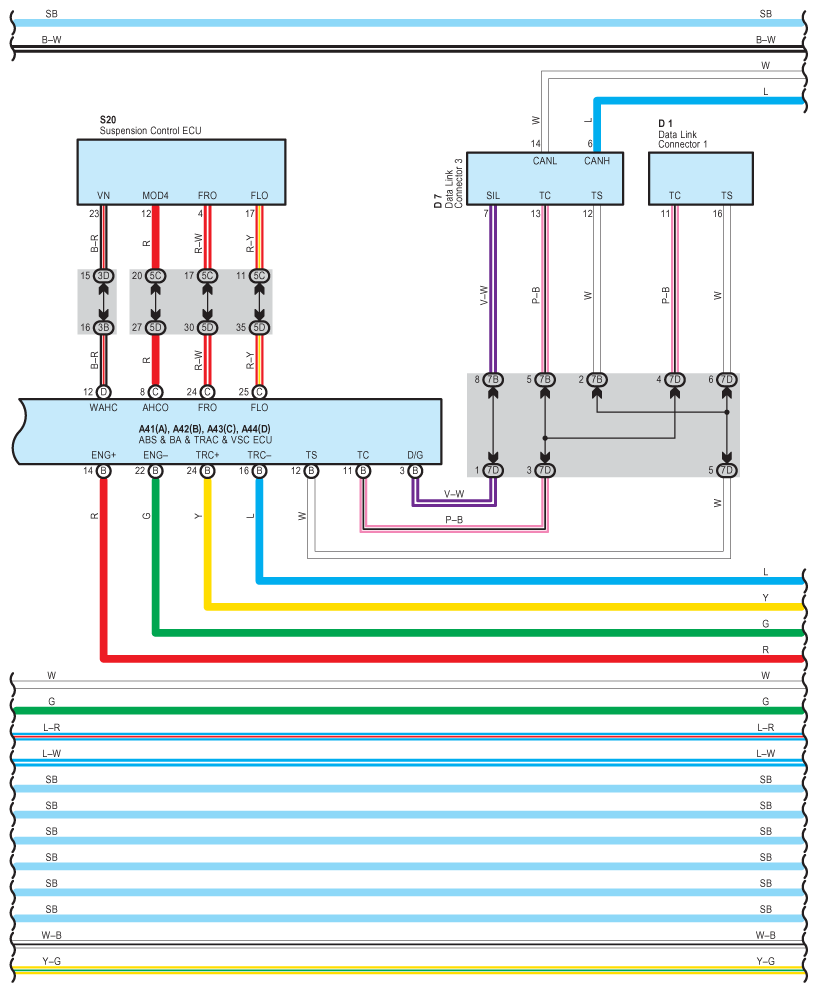

Fig 4: ABS, TRAC And VSC System Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

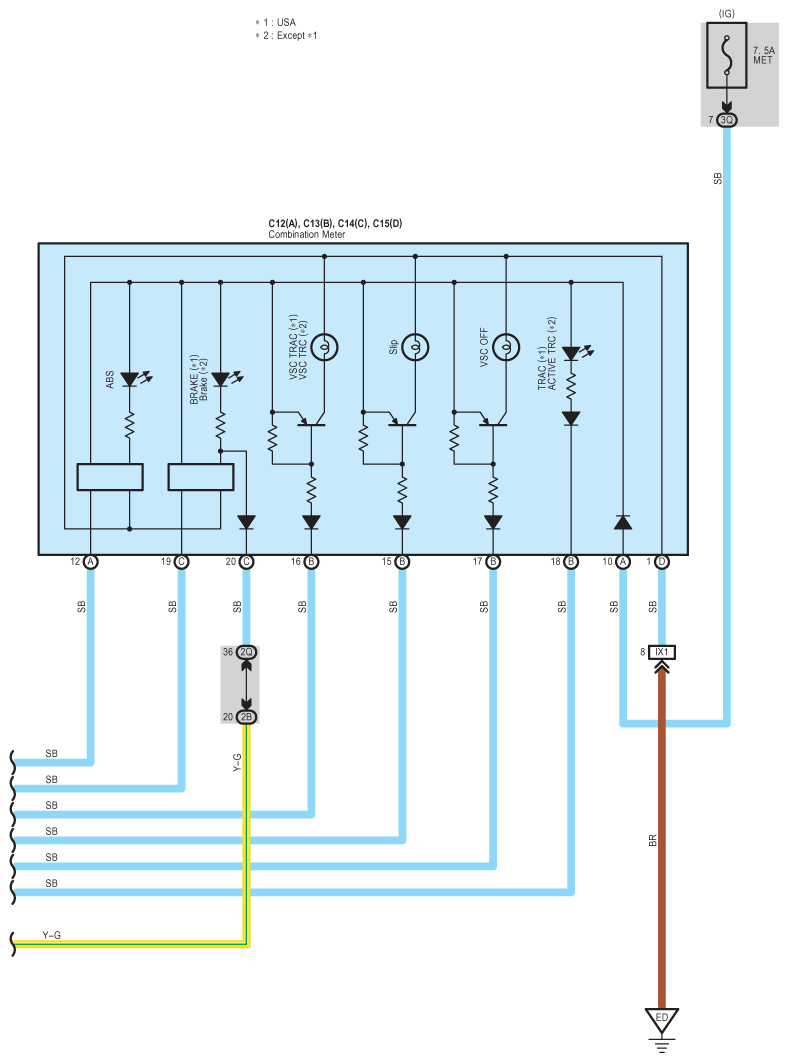

Fig 5: ABS, TRAC And VSC System Wiring Diagram (5 Of 7)

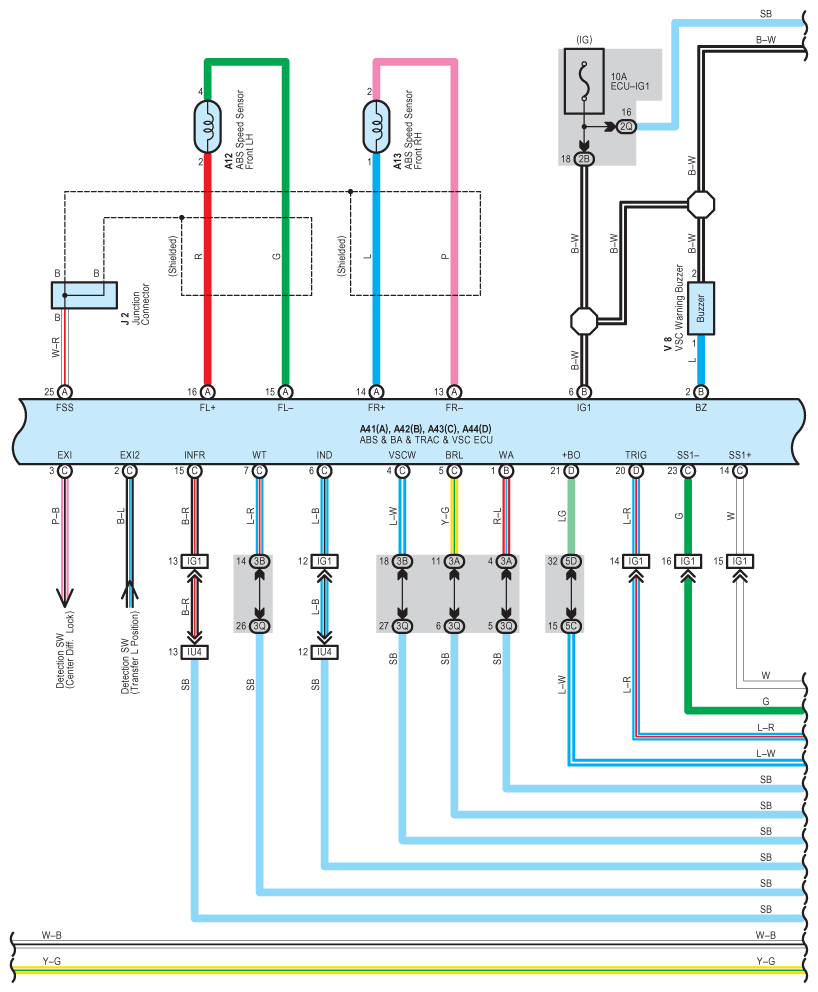

Fig 6: ABS, TRAC And VSC System Wiring Diagram (6 Of 7)

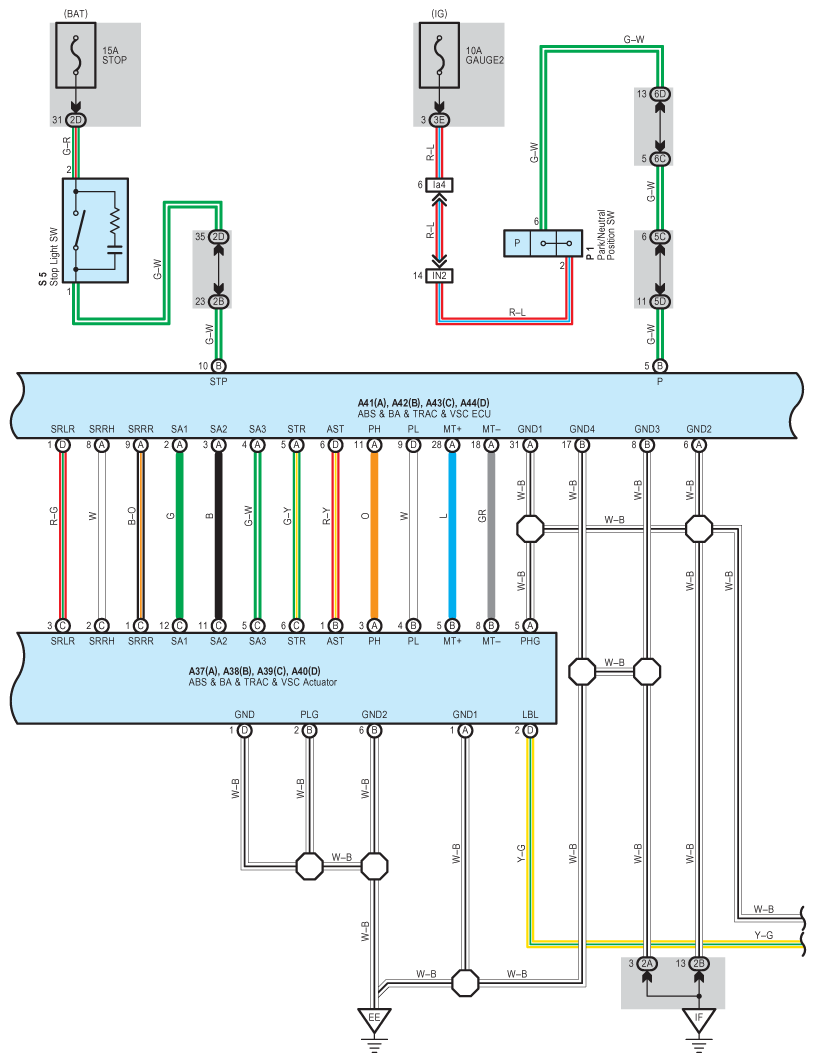

Fig 7: ABS, TRAC And VSC System Wiring Diagram (7 Of 7)
