Center Differential Lock: Notes

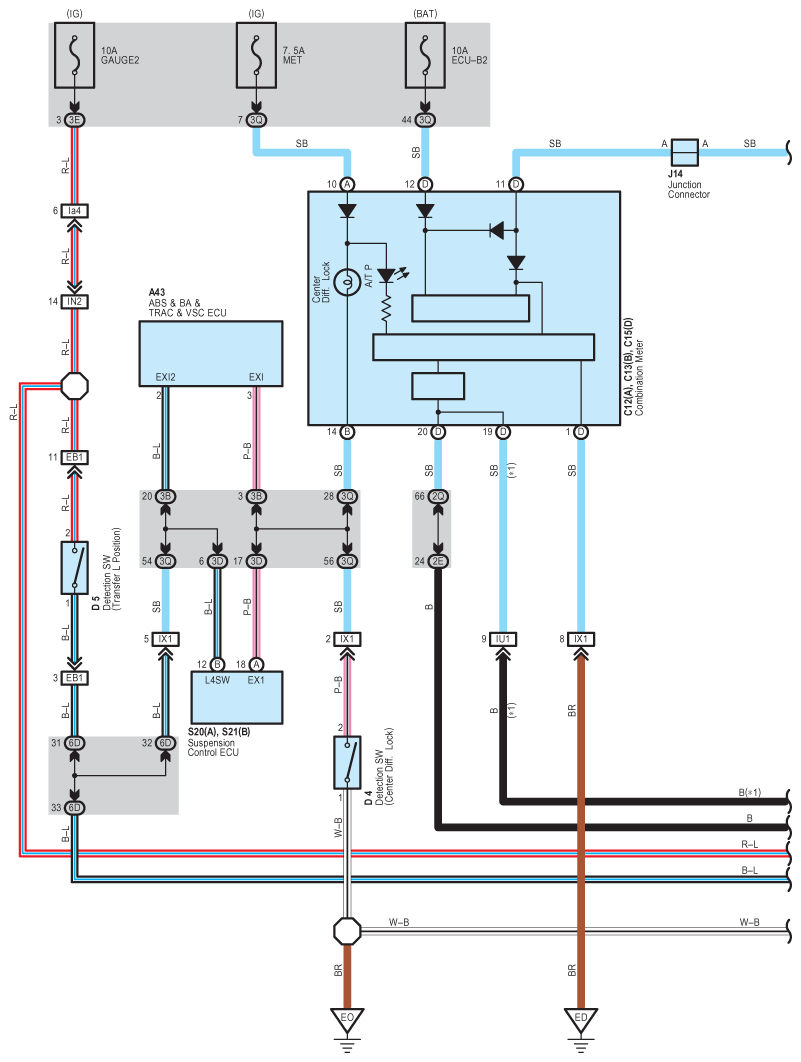

Fig 1: Center Differential Lock System Wiring Diagram (1 Of 3)
G08783427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

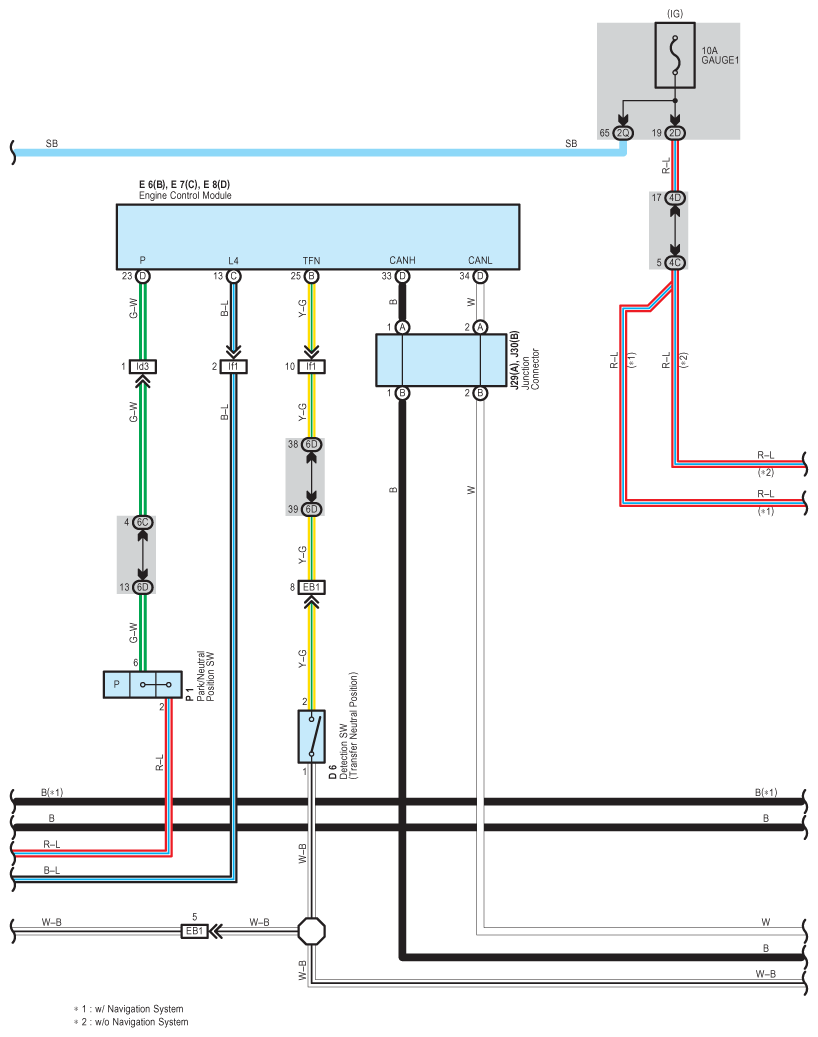

Fig 2: Center Differential Lock System Wiring Diagram (2 Of 3)
G08783428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

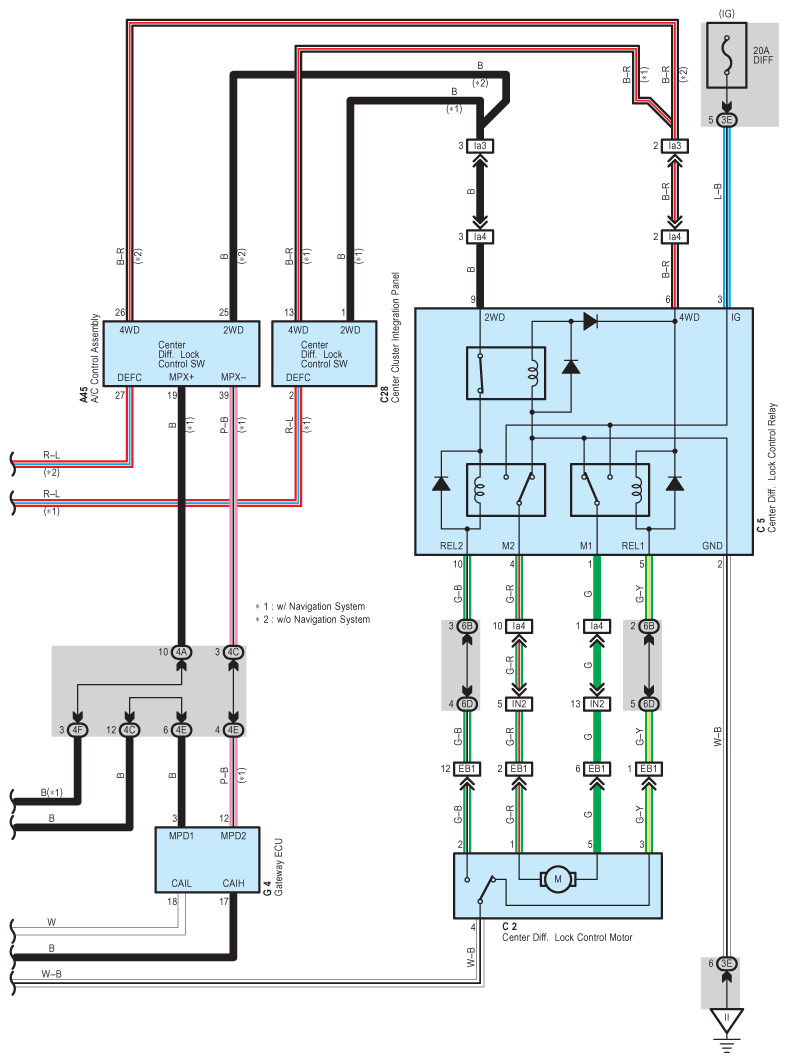

Fig 3: Center Differential Lock System Wiring Diagram (3 Of 3)
G08783429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
