Section 12 (Emission Control System): Canister: Components
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

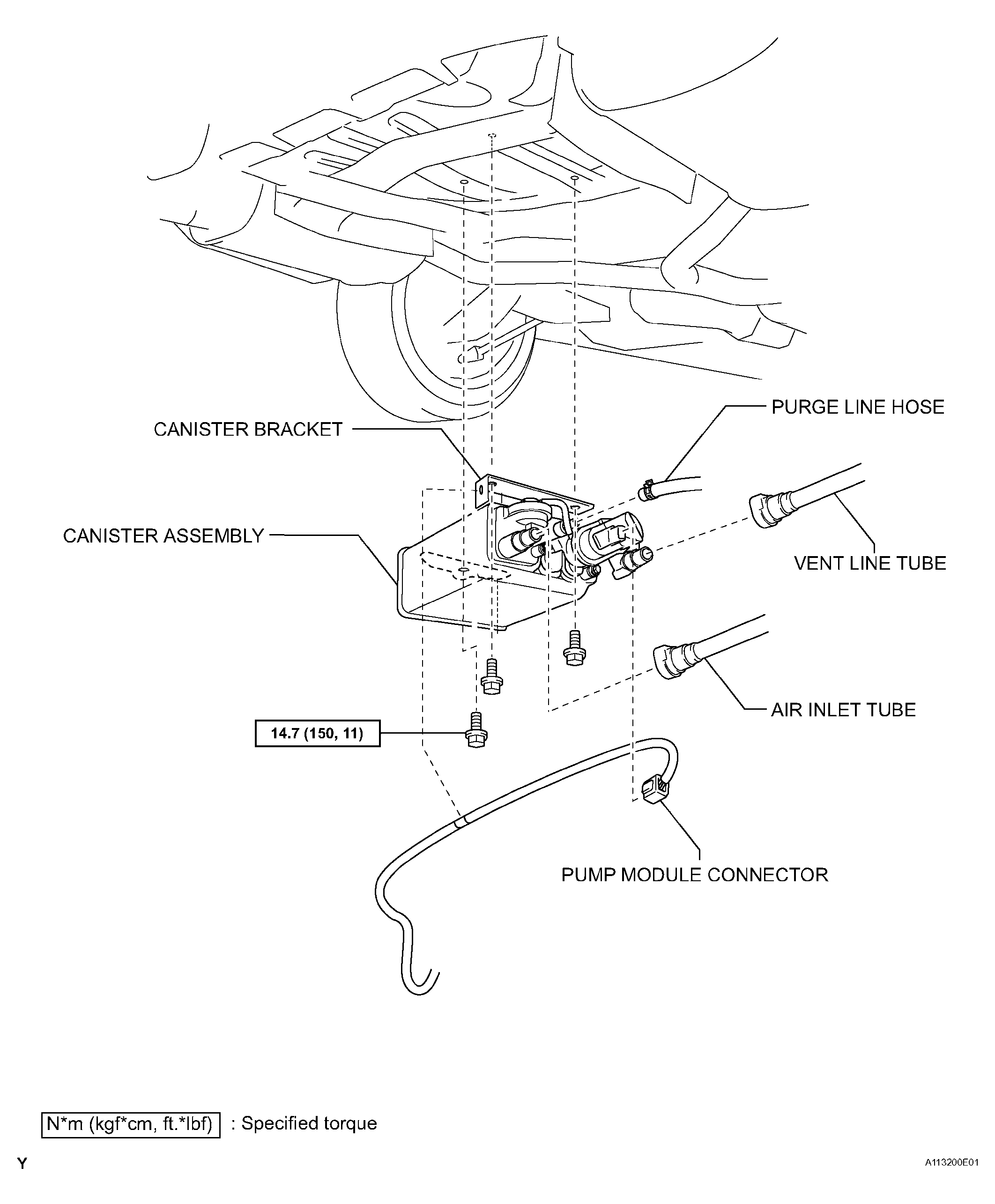

Fig 1: Canister Replacement Components With Torque Specifications
