Terminals Of Ecu

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

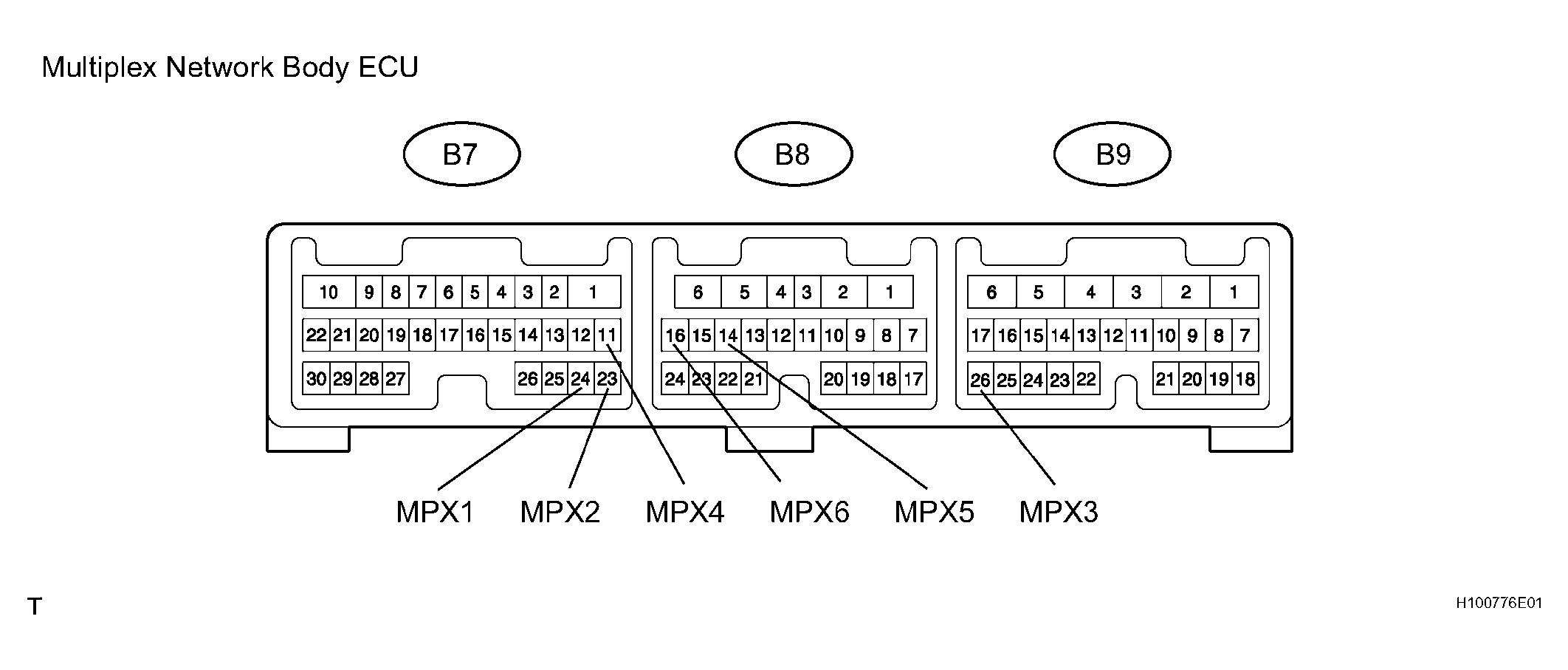

Fig 1: Identifying Multiplex Network Body ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

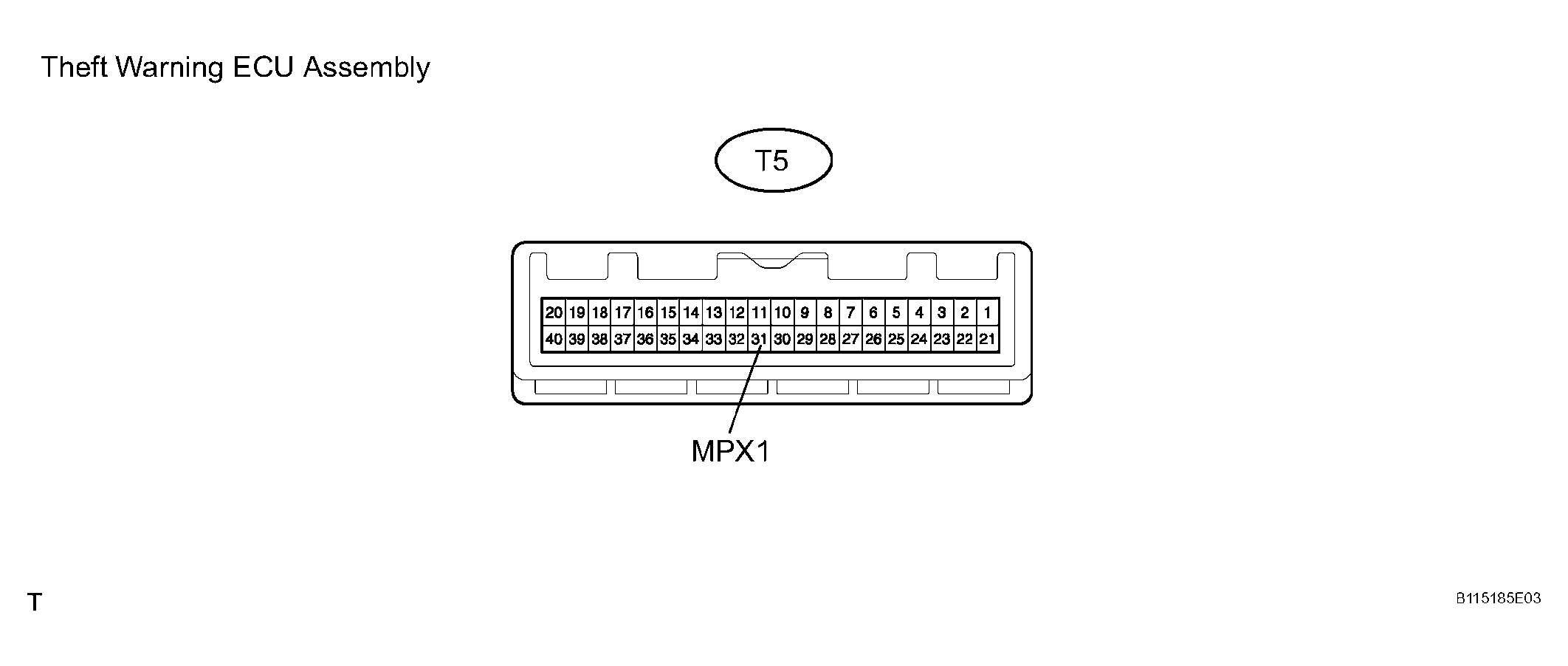

Fig 2: Identifying Theft Warning ECU Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

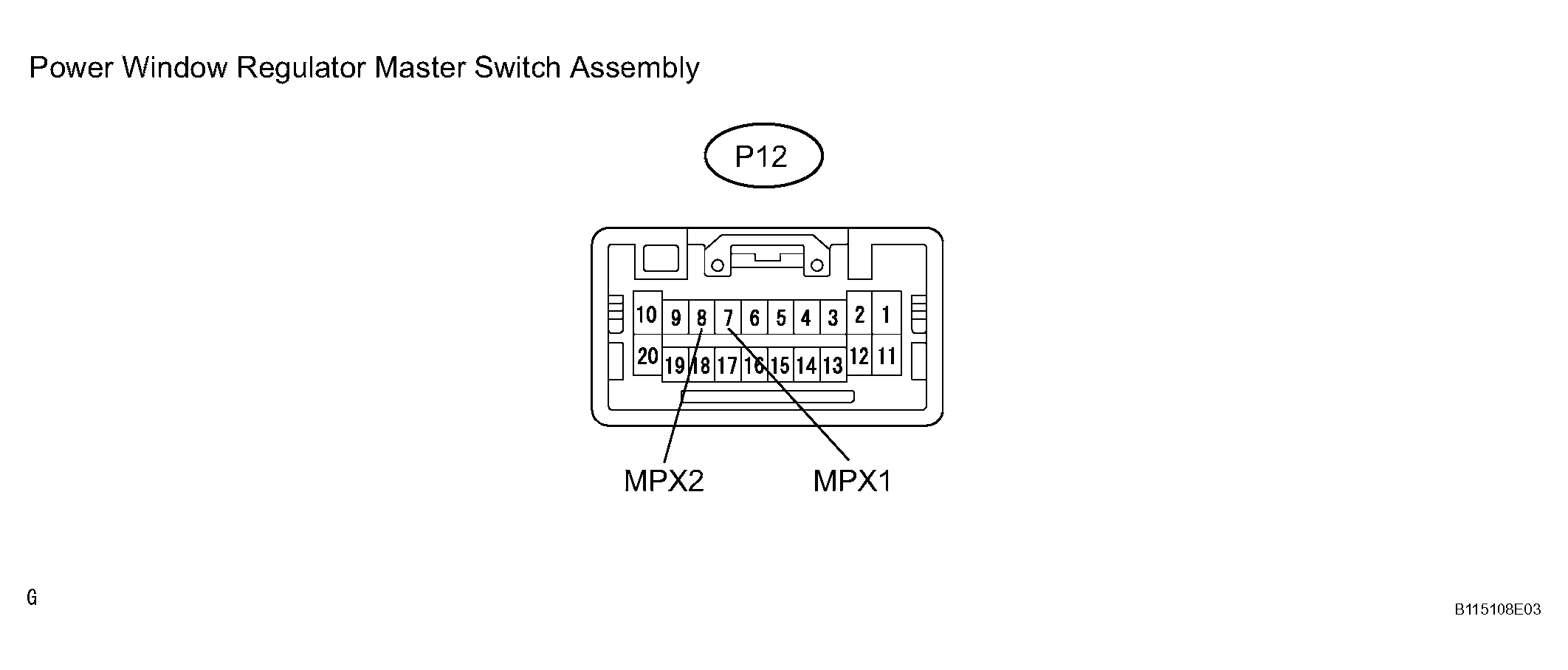

Fig 3: Identifying Power Window Regulator Master Switch Assembly Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

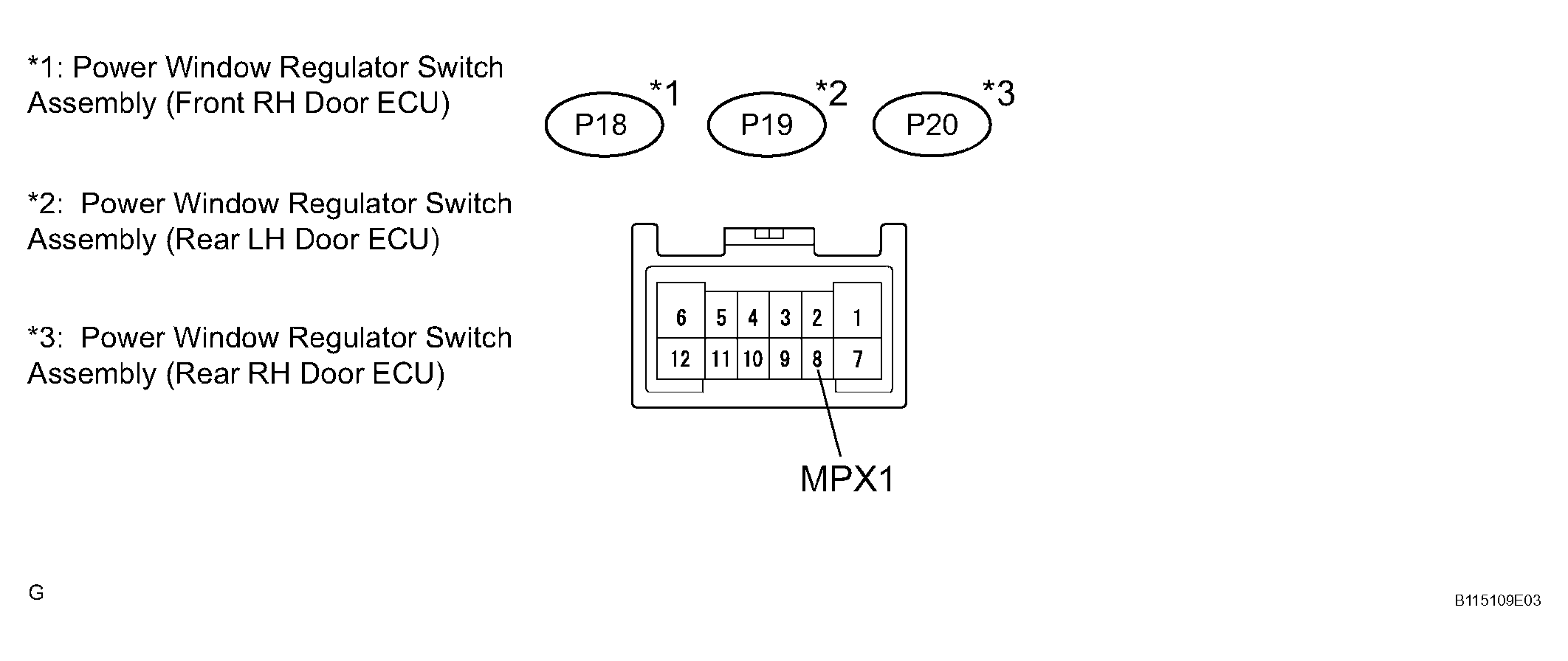

Fig 4: Identifying Power Window Regulator Switch Assembly Connector Terminals

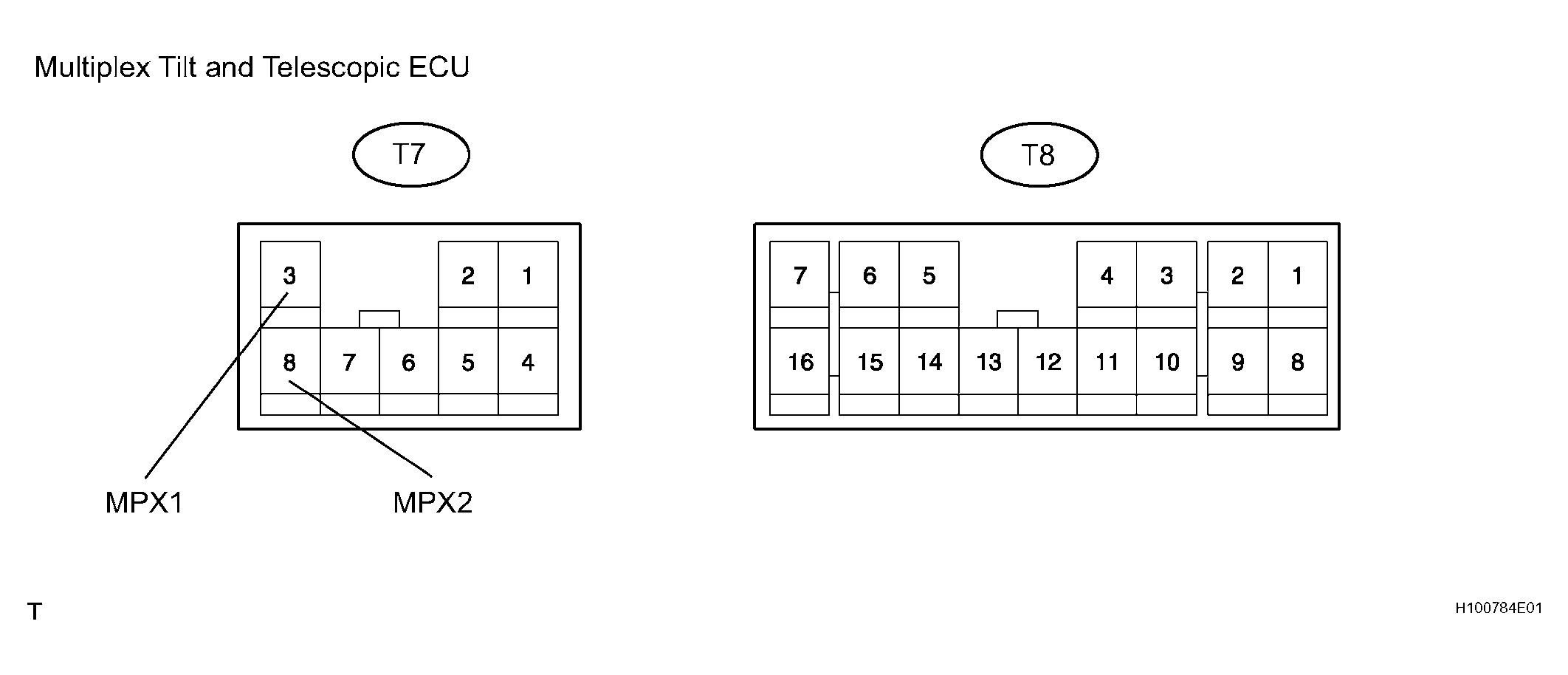

Fig 5: Identifying Multiplex Tilt & Telescopic ECU Connector Terminals
