Rear Lateral Control Rod: Components

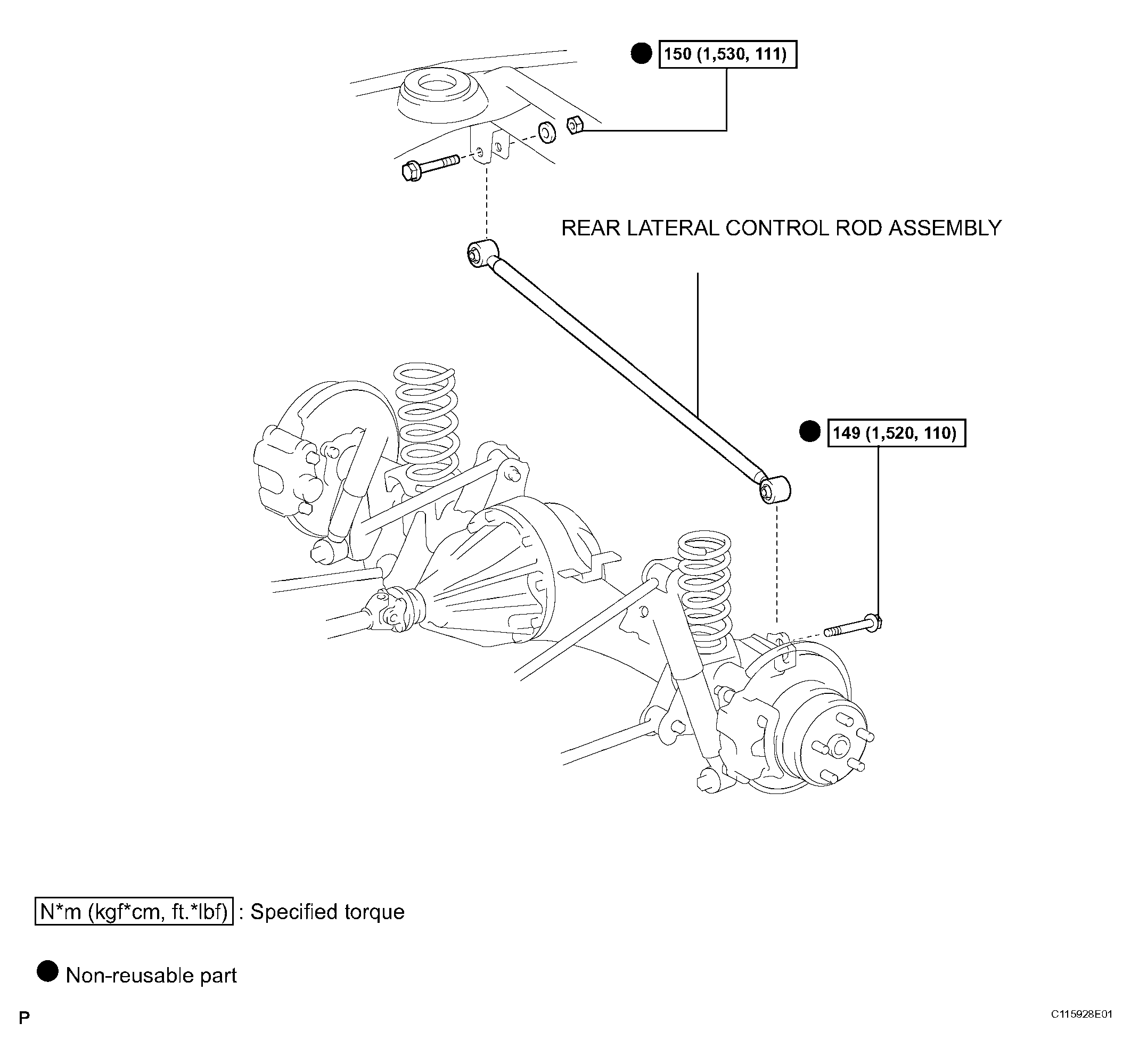

Fig 1: Rear Lateral Control Rod Replacement Components & Torque Specification
G04437605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
