Center Differential: Components

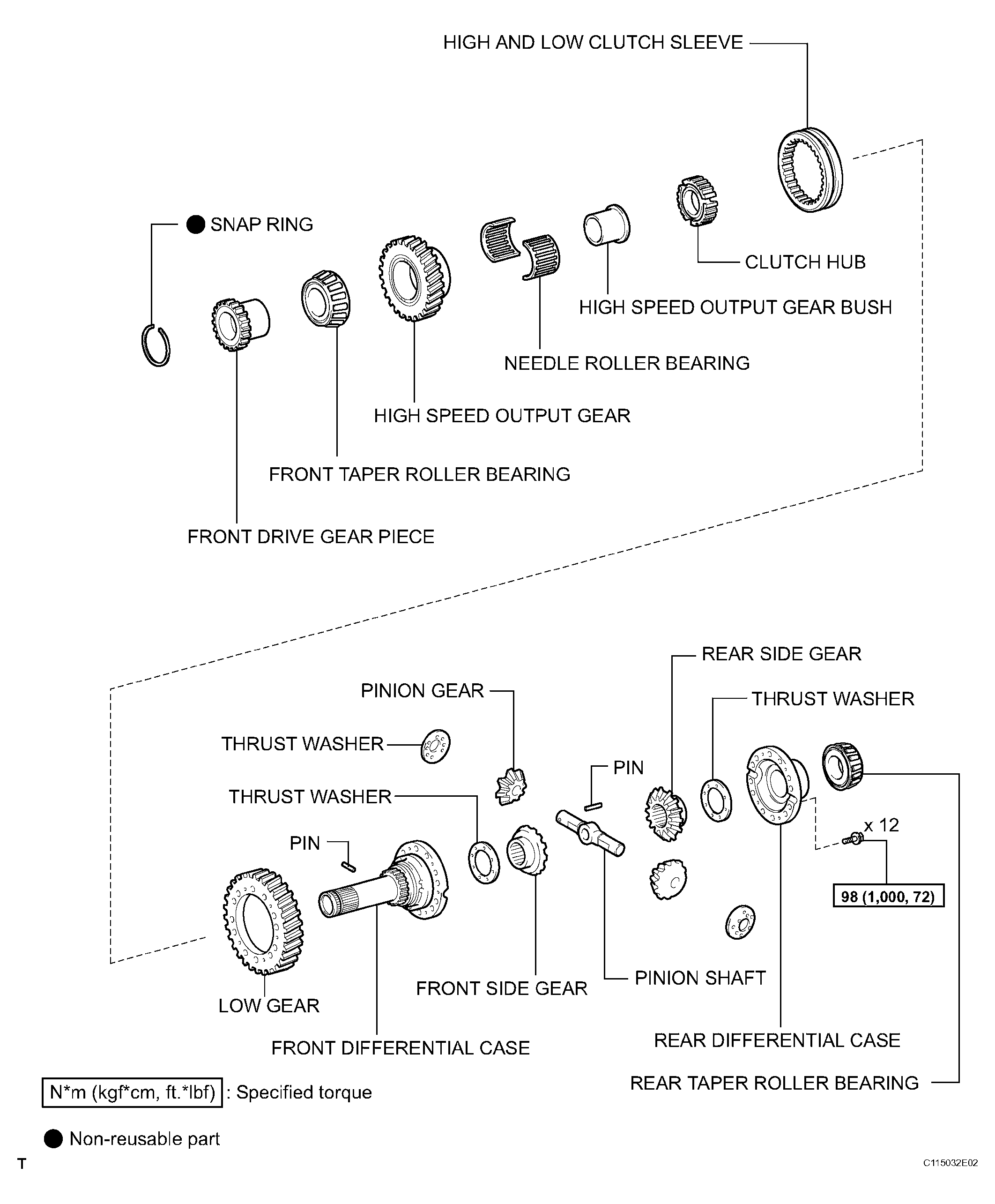

Fig 1: Center Differential Replacement Components With Torque Specifications
G04437050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
