Only Wireless Control Function is Inoperative: Wiring Diagram

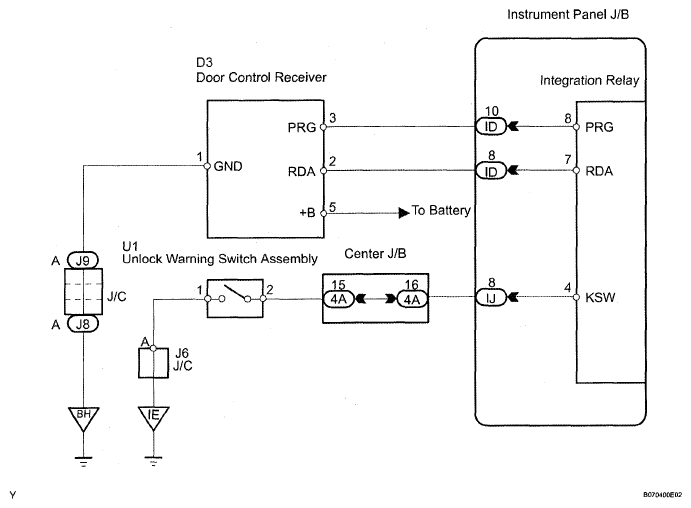

Fig 1: Only Wireless Control Function Is Inoperative - Wiring Diagram
G05196040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
