COMPRESSOR AND MAGNETIC CLUTCH (for 1ZZ-FE): Components

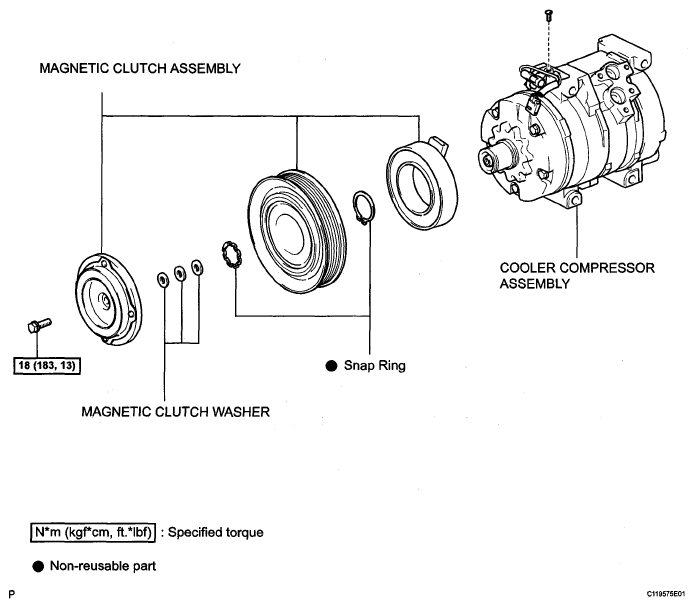

Fig 1: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (For 1ZZ-FE)
G05236272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
