Occupant Classification Ecu: Components

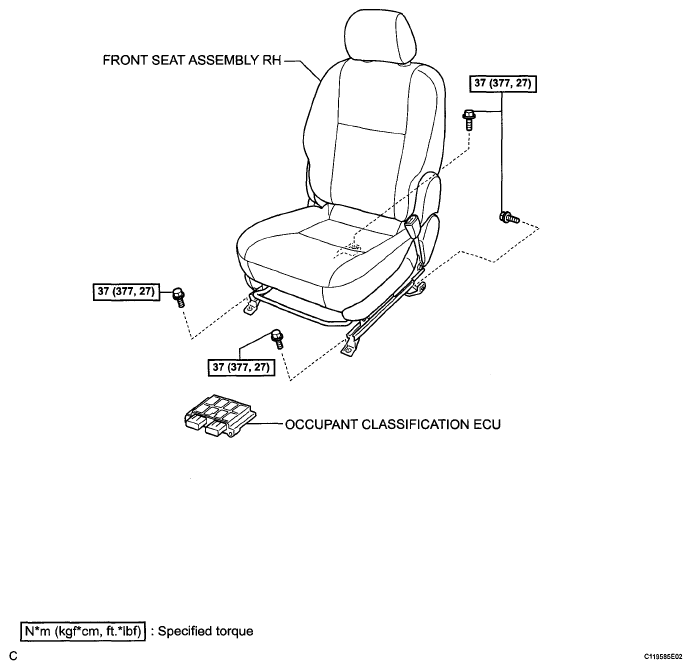

Fig 1: Occupant Classification ECU Replacement Components With Torque Specifications
G05236660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
