Automatic Transaxle Assembly: Components

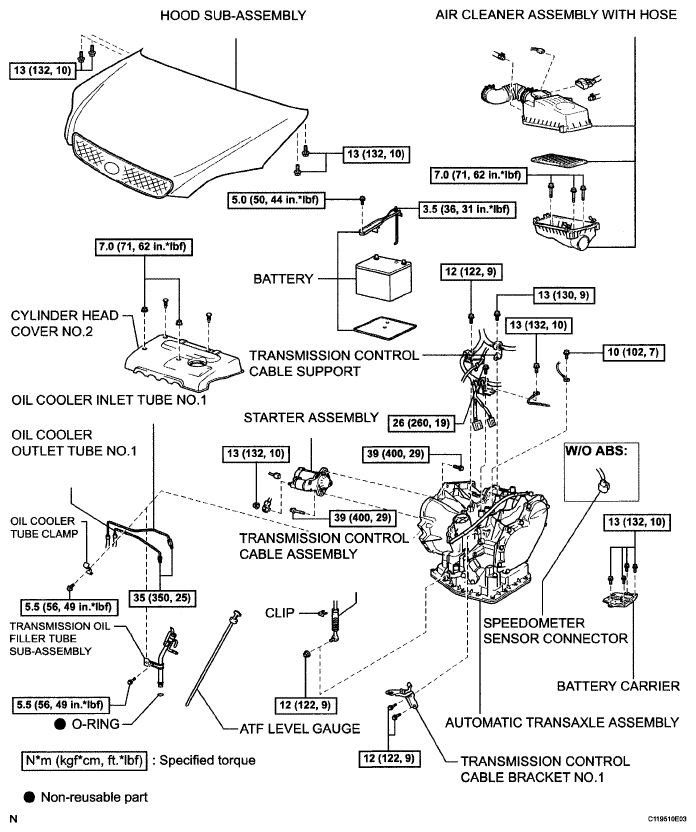

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)
G05234037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)
G05234038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

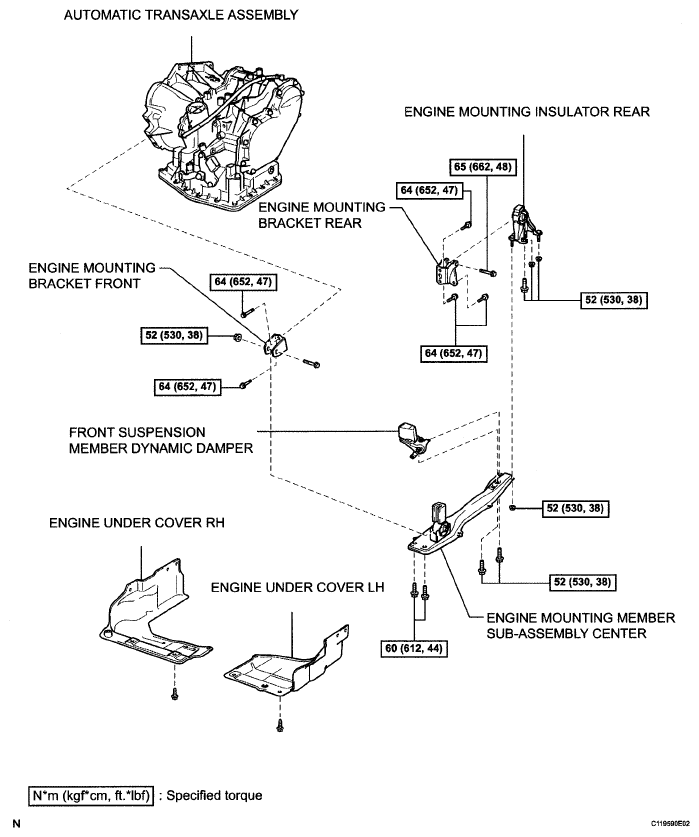

Fig 3: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)
G05234039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
