System Diagram

The configuration of the electronic control system in the A246E automatic transaxles is as shown in the following chart.

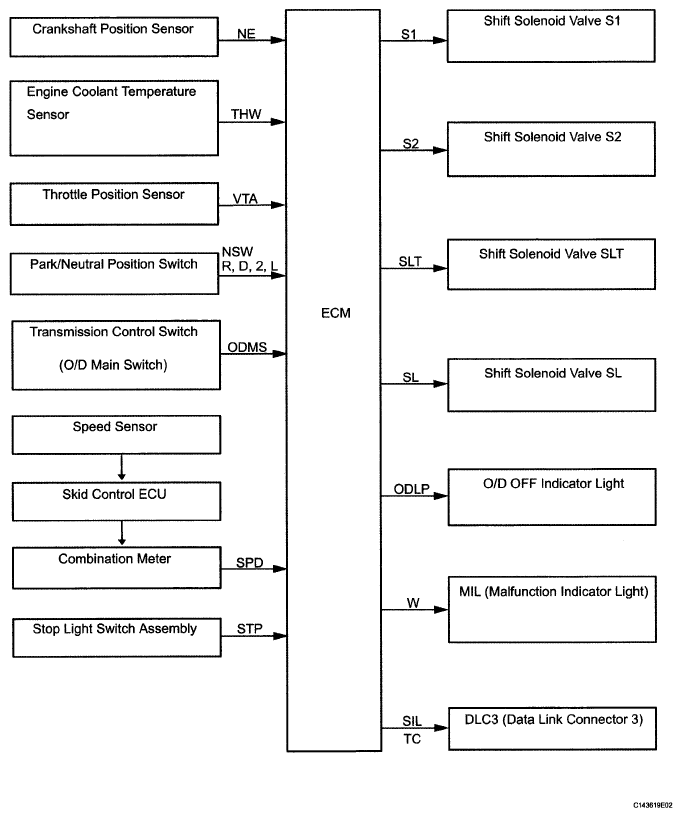

Fig 1: Automatic Transaxle System Diagram
G05233867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
