Transmission Control Cable Assembly: Components

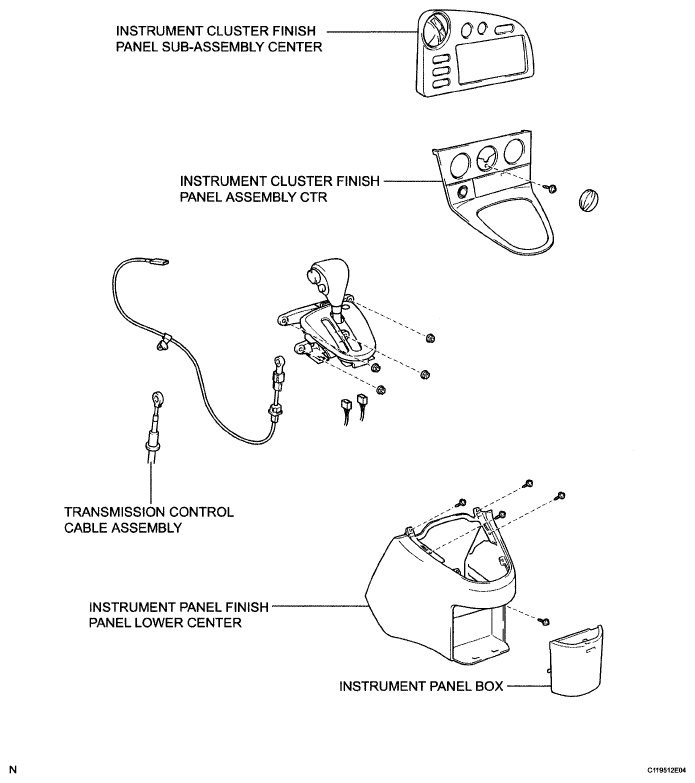

Fig 1: Identifying Transmission Control Cable Assembly Components (1 Of 4)
G05233953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 4)
G05233954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 4)
G05233955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Transmission Control Cable Assembly Replacement Components With Torque Specifications (4 Of 4)
G05233956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
