Turn Signal and Hazard Warning Light: Notes

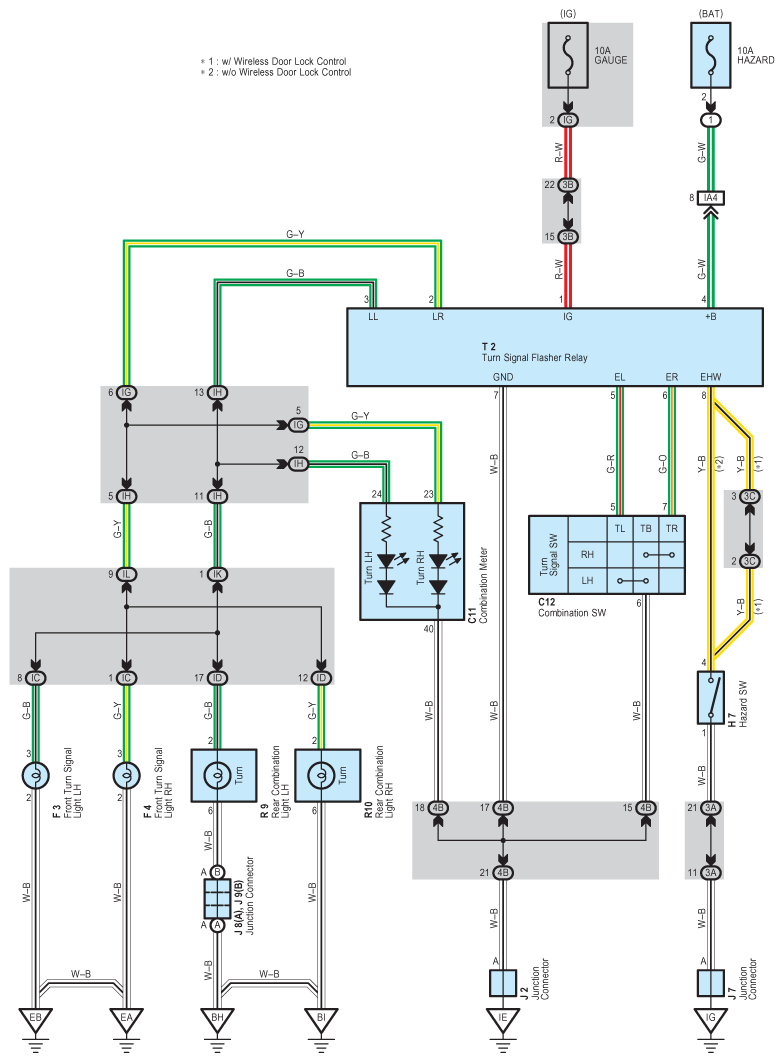

Fig 1: Turn Signal And Hazard Warning Light System Wiring Diagram
G08790381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
