Wireless Transmitter & Programming Guide (EL010-07)

Publication date: 2007-11-09
Reference number: EL010-07
Supersedes refnos: EL008-02, EL010-01

WIRELESS TRANSMITTER & PROGRAMMING GUIDE

WIRELESS TRANSMITTER & PROGRAMMING GUIDE

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL010-07, Date of Issue:  November 10, 2007
TOYOTA: '90 - '08 Applicable Toyota
SECTION: ELECTRICAL
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002
Superceded Bulletin(s): EL010-07, Date of Issue:  November 9, 2007
NOTE: TSB REVISION NOTICE: November 10, 2007: A TSB reference has been updated in the Programming column of the Application Chart. Previous versions of this TSB should be discarded.
NOTE: TSB UPDATE NOTICE: The information contained in this TSB supersedes TSB No. EL008-02. TSB No. EL008-02 is now obsolete and should be discarded.

Introduction

Difficulties during Remote Keyless Entry (RKE) Transmitter Programming can arise due to confusion between Toyota Factory Wireless systems and Toyota Port/Dealer installed systems. This bulletin will assist in identifying the system/correct remote transmitters for each vehicle, and provide the location of the most accurate programming procedure for each system.

Applicable Vehicles

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OFP T1 T2
N/A Not Applicable to Warranty - - - -

System Identification

The following Application Chart contains all of the necessary information to correctly identify the type of system installed, and where to go to get programming procedures for each vehicle.

NOTE: Should a vehicle having both VIP and Factory systems available (as identified in the Application Chart) be brought in without any remotes (or one non-working remote), use the following tips to help determine which type of wireless system (O.E. or PIO/DIO) the vehicle has.
  • Look at the Trim Level of the vehicle. Higher-grade vehicles will tend to have O.E. systems, while entry-grade vehicles will tend to have VIP. For example, the 2001 Camry XLE has Factory WRKE, but the LE and CE grades have VIP.
  • Look for a "Status Monitor" with a glass breakage sensor and an LED externally installed into the dashboard or on the center console. Most VIP systems will have this.
  • Locate the ECU (refer to the applicable vehicle VIP Manual installation instructions for location). Once located, refer to the part label.
  • Attempt to perform the factory wireless programming procedure to get a response from the vehicle. Select the "confirmation mode" and see if any "Lock/Unlock" response is received, if so, the vehicle has a factory system.

Application Chart

APPLICATION CHART

APPLICATION DEALER/PORT INSTALLED FACTORY INSTALLED
VEHICLE YEAR SYSTEM/REMOTE PROGRAMMING FACTORY REMOTE PROGRAMMING
4Runner 1990 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 RS3000 / Fig 4
1999
2000 - 2002 RS3200 / Fig. 5 2000 VIP Manual (6) Fig. 10 (5) RM 02 V2, BE-98
2003 - 2008 N/A N/A RM 03, 73-16
Avalon 1995 TVSS / Fig. 2 (1) TVSS Owner's Guide Fig. 8 TSB - EL003-99
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 - 1999 RS3000 / Fig. 4 Fig 9 (2)
2000 - 2002 RS3200 / Fig. 5 2000 VIP Manual (6) RM 02 V2, BE-99
2003 - 2004 N/A N/A Fig. 9 (2) TSB - EL009-07
2005 - 2008 N/A N/A Fig. 14 TIS Techstream or TSB - EL009-07
Camry 1990 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 RS3000 / Fig. 3 TSB - AX005-99 Fig. 7 TSB - EL008-98
1997
1998 - 1999 RS3000 / Fig. 4
2000 - 2001 RS3200 / Fig. 5 or 6 (7) 2000 VIP Manual (6) Fig. 11 RM 01 V2, BE-86
2002 - 2006 RS3200 / Fig. 5 or 6 (7) 2000 VIP Manual (6) Fig. 9 (2) TSB - EL009-07
2007 - 2008 N/A N/A Fig. 15 TIS Techstream
Celica 1990 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2*1
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 - 1999 RS3000 / Fig. 4
2000 - 2005 RS3200 / Fig. 5 2000 VIP Manual (6) Fig. 11 TSB - EL009-07
Corolla 1990 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 - 2002 RS3000 / Fig. 4
2003 - 2008 RS3200 / Fig. 5 2000 VIP Manual (6) Fig. 11 TSB - EL009-07
Cressida 1991 - 1992 TDSE / Fig. 1 (1) TVSS Owner's Guide N/A N/A
ECHO 2000 - 2005 RS3200 / Fig. 5 2000 VIP Manual (6) Fig. 11 TSB - EL009-07
FJ Cruiser 2007 - 2008 N/A N/A Fig. 11 TIS Techstream or TSB- EL009-07
Highlander 2001 - 2007 N/A N/A Fig. 11 TSB - EL009-07
2008 N/A N/A Fig. 16/Fig. 17 TIS Techstream or TSB- EL009-07
Land Cruiser 1991 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 - 2002 N/A N/A Fig. 13 RM 02 V1, DI-624
2003 - 2007 RM 03 V2, BE-93
Matrix 2003 -2008 N/A N/A Fig. 22 TSB - EL009-07
MR2 1991 - 1994 TDSE / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
2001 - 2003 RS3200 (3) / Fig.5 2003 VIP Manual
Paseo 1992 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 RS3000 / Fig. 4
Previa 1991 - 1994 TDSE / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
Prius 2001 - 2003 N/A N/A Fig. 11 TSB - EL009-07
RAV4 1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99 N/A N/A
1998 - 2000 RS3000 / Fig. 4
2001 - 2005 RS3200 / Fig. 5 2000 VIP Manual (6) Fig. 11 TSB-EL009-07
2006 - 2007 (Production through 12/06) N/A N/A Fig. 18 TIS Techstream or TSB-EL009-07
2007 (1/07 Production and Later) N/A N/A Fig. 15
2008 N/A N/A Fig. 15
Sequoia 2001 - 2003 N/A N/A Fig. 10 (5) RM 03 V2, BE-105
2004 - 2006 N/A N/A Fig. 10 (5) RM 03 V2, BE-105
2007 N/A N/A Fig. 10 (5) TIS Techstream or TSB-EL009-07
Sienna 1998 RS3000 / Fig. 4 TSB - AX005-99 Fig. 7 TSB - EL009-98
1999
2000 RS3000 / Fig.4 (4) Fig. 11/Fig. 12
2001 - 2002 RS3200 / Fig. 5 2000 VIP Manual (6) RM 02 V2, BE-87
2003 N/A N/A RM 03 V2, BE-91
2004 - 2008 N/A N/A Fig. 19 TIS Techstream or TSB-EL009-07
Solara 1999 - 2001 RS3000 / Fig. 4 TSB - AX005-99 Fig. 11 RM 02 V2, BE-87
2002 - 2003 N/A N/A Fig. 9 (2)
2004 - 2008 N/A N/A Fig. 20 TSB- EL009-07
Supra 1991 - 1992 TDSE / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TDSE / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 RS3000 / Fig. 4
T100 1993 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 RS3000 / Fig. 4
Tacoma 1995 TVSS / Fig. 2 (1) TSB - AX005-99 N/A N/A
1998 - 2001 RS3000 / Fig. 4
2002 RS3200 / Fig. 5 2000 VIP Manual (6)
2003 RS3200 (3) / Fig. 5 2003 VIP Manual (6)
2004 N/A N/A Fig. 5 RM BE-61
2005 - 2008 N/A N/A Fig. 21 TSB-EL009-07
Tercel 1991 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
1996 - 1997 RS3000 / Fig. 3 TSB - AX005-99
1998 RS3000 / Fig. 4
Truck 1990 - 1994 TVSS / Fig. 1 (1) TVSS Owner's Guide N/A N/A
1995 TVSS / Fig. 2 (1)
Tundra 2000 - 2001 RS3000/Fig. 4 TSB - AX005-99 N/A N/A
2002 - 2006 RS3200(3)/Fig. 5 2003 VIP Manual
2003 - 2006 Except D-Cab RS3200(3)/Fig. 5 TVIP Programming Manual Fig. 5 TSB- EL009-07
2004 - 2006 D-Cab N/A N/A Fig. 11 RM BE-157
2007 N/A N/A Fig. 21 TIS Techstream or TSB-EL009-07
Yaris 2007 - 2008 RS3200(3)/Fig. 5 TVIP Programming Manual Fig. 18 TSB-EL009-07
(1) Original style TVSS/TDSE system remotes are no longer available as replacement parts. Black  RS3000 remotes (Figure 3) can be used with these systems.
(2) While the outward appearances are the same, there are 3 different remotes of this style (not interchangeable). Check the FCC ID Number on the back of the remote to verify correct application:
  • Avalon 1998 - 1999 FCC ID: HYQ1512Y / 2000 - 2003 FCC ID: HYQ12BAN
  • Camry/Solara 2002 - 2003 FCC ID: GQ43VT14T

(3) This is a variant of the RS3200 TDS system, which does not include the security functions. The VIP manual outlines programming procedures used on these vehicles.

(4) RS3200 was launched prior to the 2001 MY Change Over. Please refer to the 2000 VIP Manual if necessary.

(5) While the outward appearances are the same, there are 2 different remotes of this style (not interchangeable). Check the FCC ID Number on the back of the remote to verify correct application:
  • 1999 - 2002 4Runner - FCC ID: HYQ1512Y
  • Sequoia / 2003 4Runner - FCC ID: HYQ12BAN
  • 2004 - 2007 4Runner/Sequoia - FCC ID: HYQ12BBX

(6) RS3200 programming procedures were sent as a supplement to the 2000 VIP Manual. This information can now be found on the TIS system.

(7) The RS3200 system was only available on early production vehicles in the 2003 model year.

Wireless Transmitter Identification

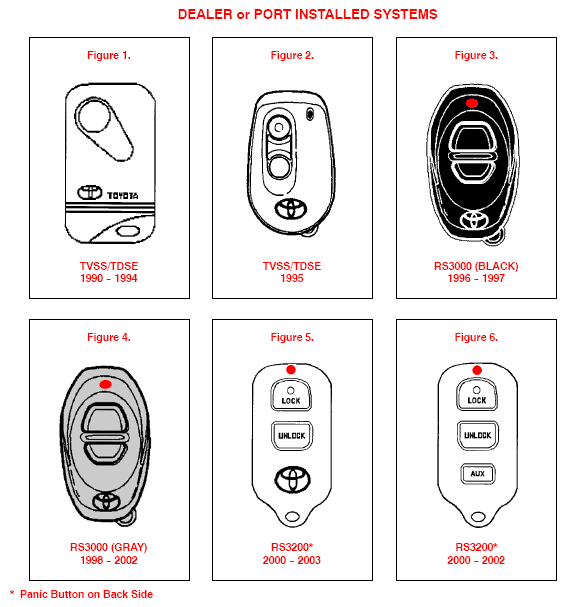

Fig 1: Dealer Or Port Installed Systems
G05453456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

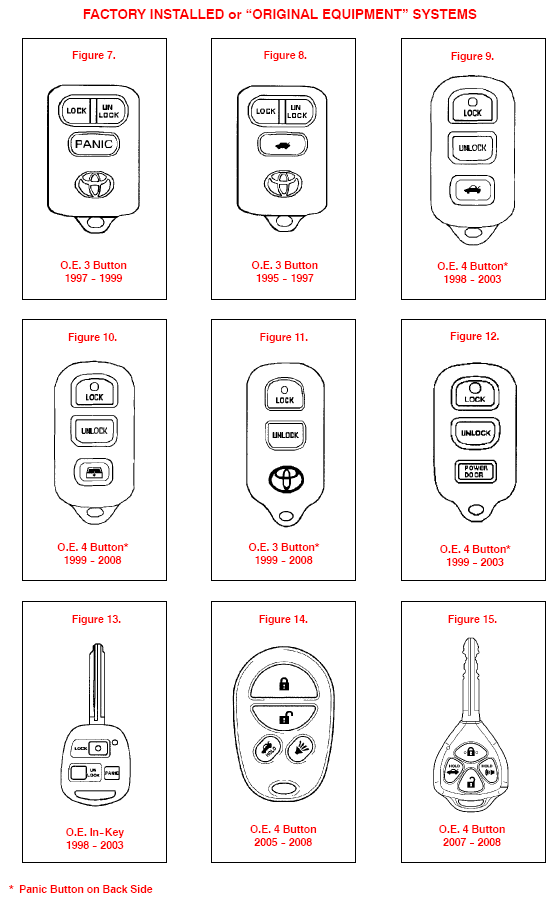

Fig 2: Factory Installed Or "Original Equipment" Systems (1 Of 2)
G05453457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

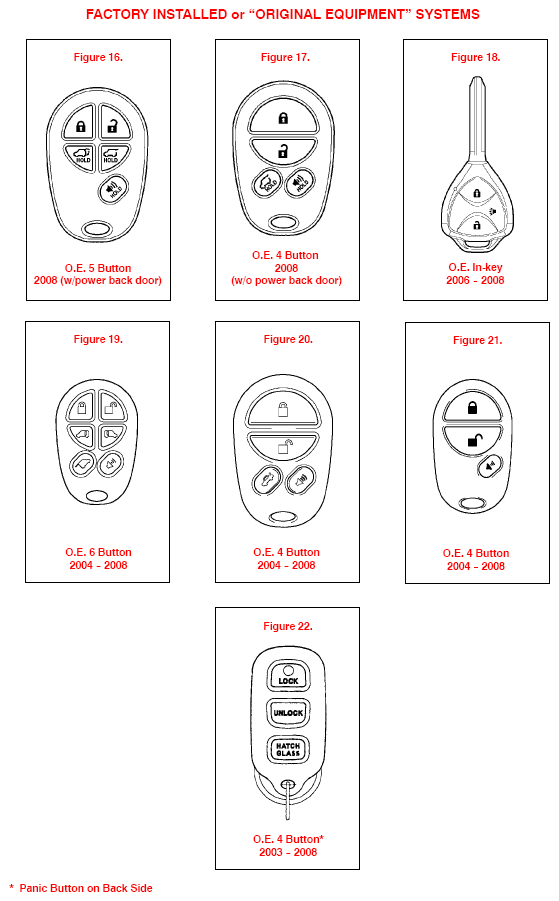

Fig 3: Factory Installed Or "Original Equipment" Systems (2 Of 2)
G05453458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
