Introduction

Some 2007 model year Matrix vehicles are equipped with a compass in the rear view mirror. Use the following procedure to complete initial calibration of the compass during the ROAD TEST section, item 12, of Pre-Delivery Service (PDS).

Applicable Vehicles

• 2007  model year Matrix  vehicles.

Warranty Information

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Compass Calibration Procedure

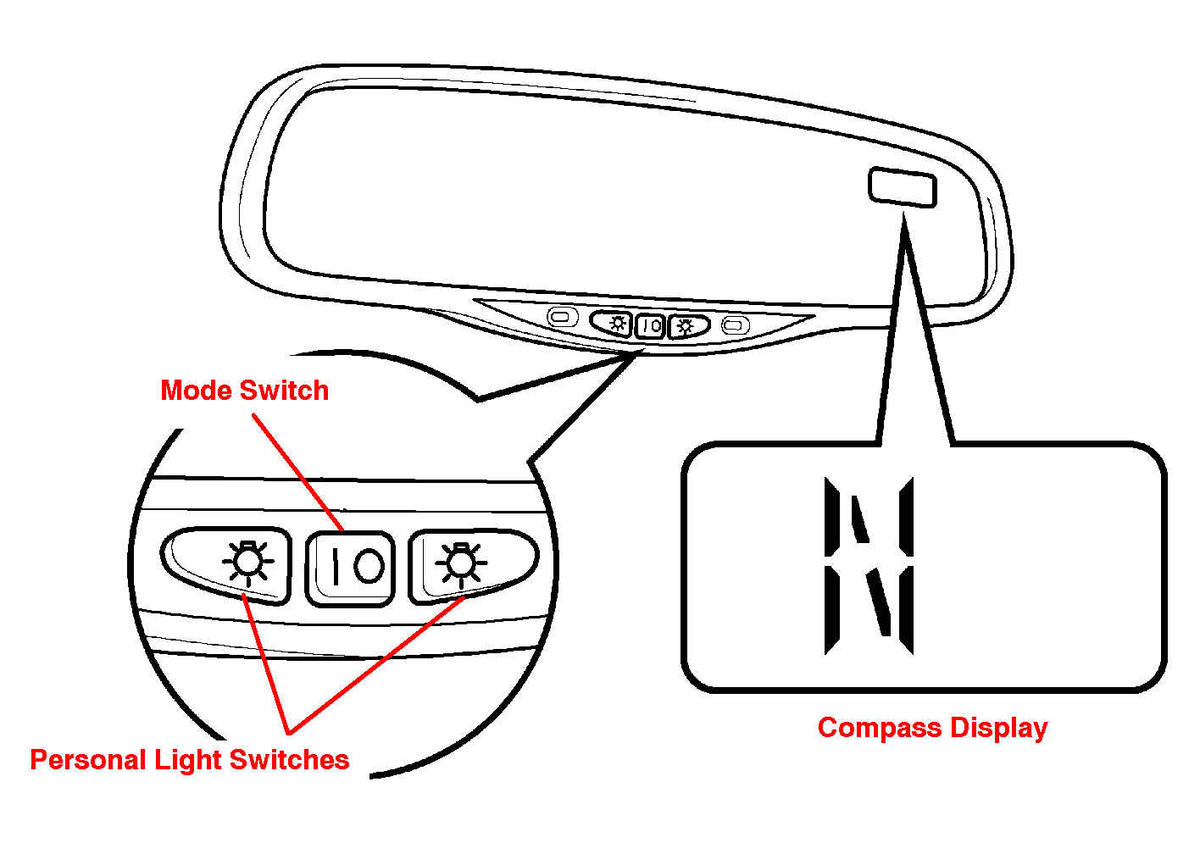

1. Turn the ignition switch to the "ON" position and check that the direction (N, NE, E, SE, S, SW, W, NW) or "C" appears on the compass display.
   Fig 2: Identifying Mode Switch & Direction Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

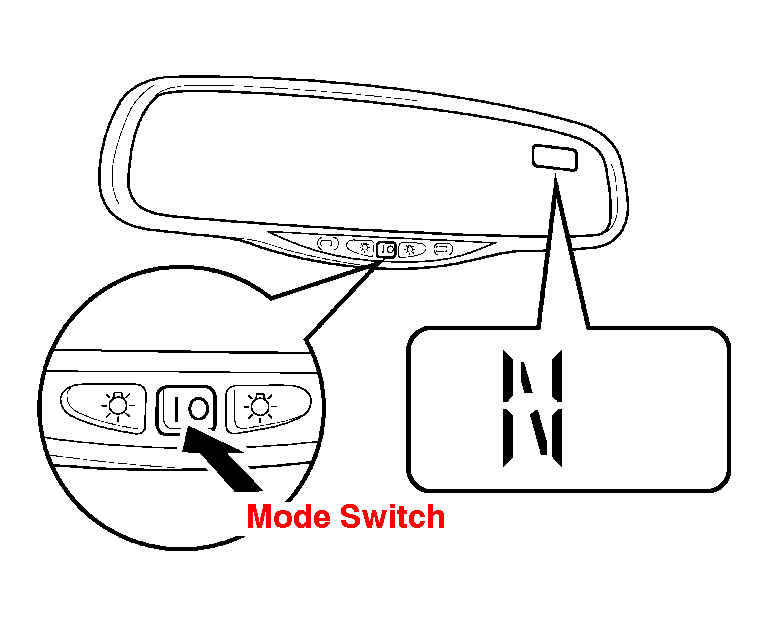

   NOTE: Pushing the mode switch for longer than 3 seconds turns the compass display ON or OFF.

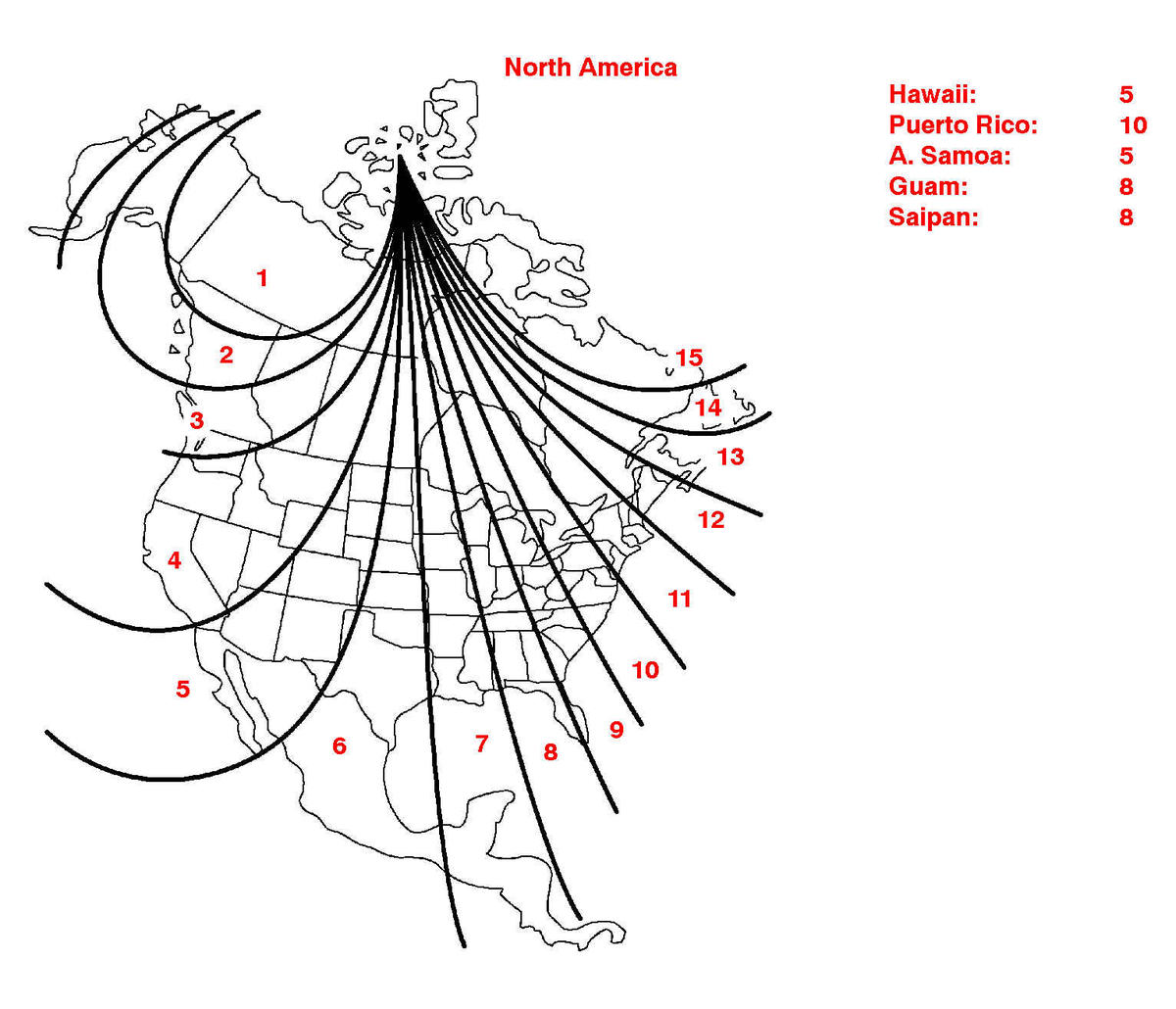

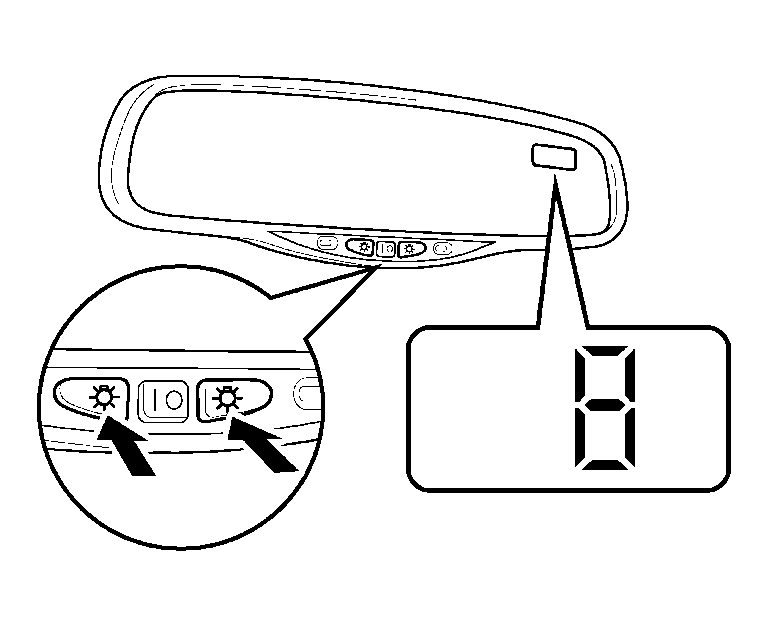

2. Push simultaneously both the right and left personal light switches for longer than 5 seconds until the zone number (1-15) appears on the display. Then push the right or left switch to select the number of the zone where the vehicle is located. See the map below for zone reference.
   Fig 3: Identifying Personal Light Switches & Zone Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 4: Identifying Magnetic Zone Map

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check that the direction or "C" appears several seconds after adjustment.

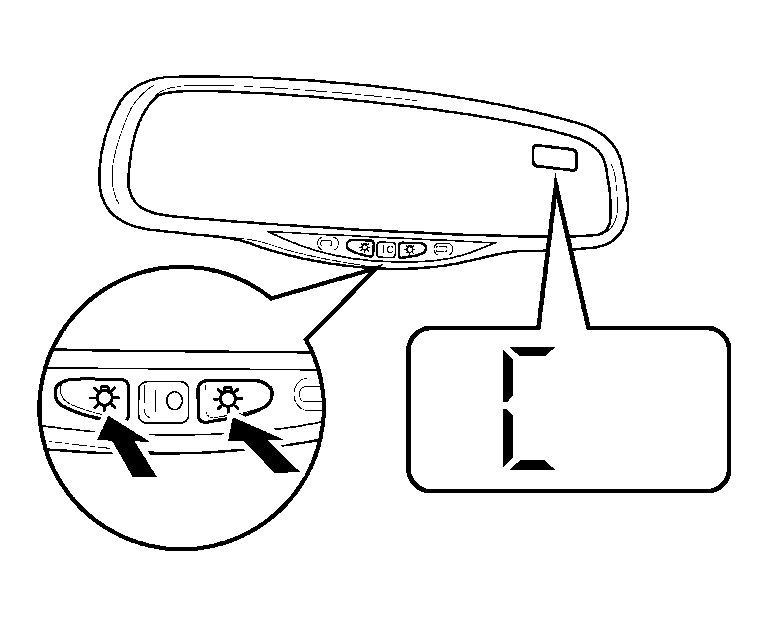

4. Start the engine and push simultaneously both right and left personal light switches for longer than 8 seconds until "C" appears on the display.
   Fig 5: Identifying "C" Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

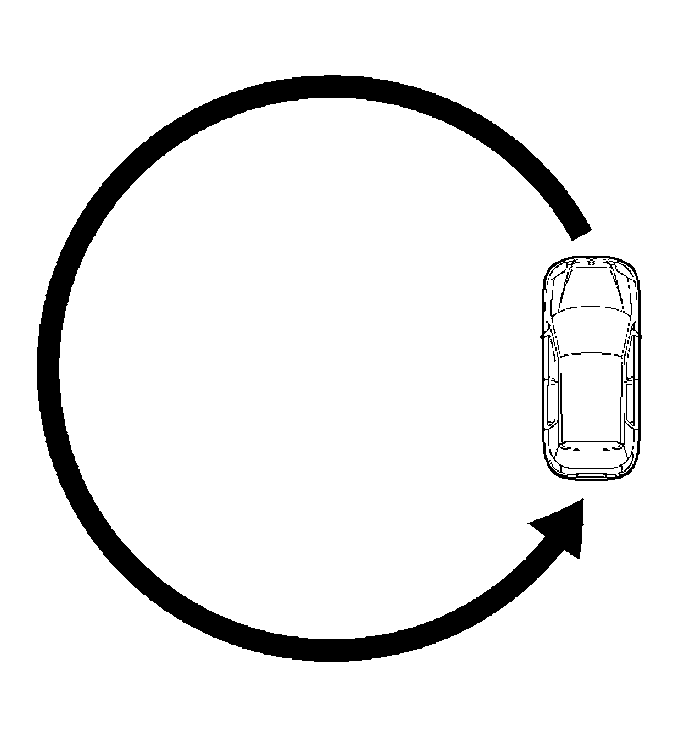

5. Drive the vehicle slowly at 5 mph (8 km/h), or less, in a circle until the direction is displayed. If there is NOT enough space to drive in a circle, drive around the block until the direction is displayed.
   Fig 6: Vehicle Driving In Circle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

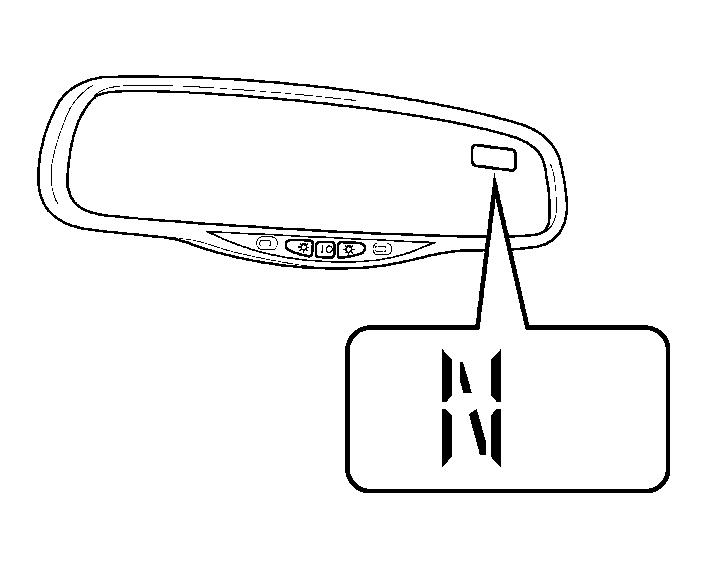

   After performing the above steps, calibration is complete.

   Fig 7: Identifying Calibration Complete Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Do NOT perform calibration of the compass in a place where the earth's magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a crossing, near a large vehicle, etc.)
   • During calibration, do NOT operate electric systems (moon roof, power windows, etc.) as they may interfere with the calibration.
