Initialization Of Tire Pressure Warning System During PDS (PD060-06)
Publication date: 2006-07-26Reference number: PD060-06
INITIALIZATION OF TIRE PRESSURE WARNING SYSTEM DURING PDS
TECHNICAL SERVICE BULLETIN
| TOYOTA: | 2007 Matrix |
| SECTION: | PRE-DELIVERY SERVICE |
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
Introduction
While the vehicle is in motion, the Tire Pressure Warning System (TPWS) monitors the wheel speed signals that are output by the speed sensors for the brake control system. The system informs the driver if it detects low tire pressure in one of the tires.
To operate the Tire Pressure Warning System under normal conditions, the TPWS ECU must be initialized with the tires at the specified tire inflation pressure.
Tire pressure is set high at the assembly plant for transport and storage to prevent tire flat spots. Therefore, after adjusting all the tires to the standard air pressure, please perform initialization of the TPWS ECU at your dealership prior to delivery.
Applicable Vehicles
- 2007 model year Matrix vehicles.
Warranty Information
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
Initialization Procedure
- Adjust all tires to the standard air pressure.FRONT AND REAR TIRE PRESSURE SPECIFICATION
TIRE SIZE FRONT TIRE PRESSURE psi (kgf/cm2 or bar, kPa) REAR TIRE PRESSURE psi (kgf/cm2 or bar, kPa) P205/55R16 89H
P215/50R17 90H
P215/50ZR1732 (2.2, 220) 32 (2.2, 220) P205/55R16 89H (4WD) 35 (2.4, 240) - Turn the ignition switch to the "ON" position with the vehicle stopped.

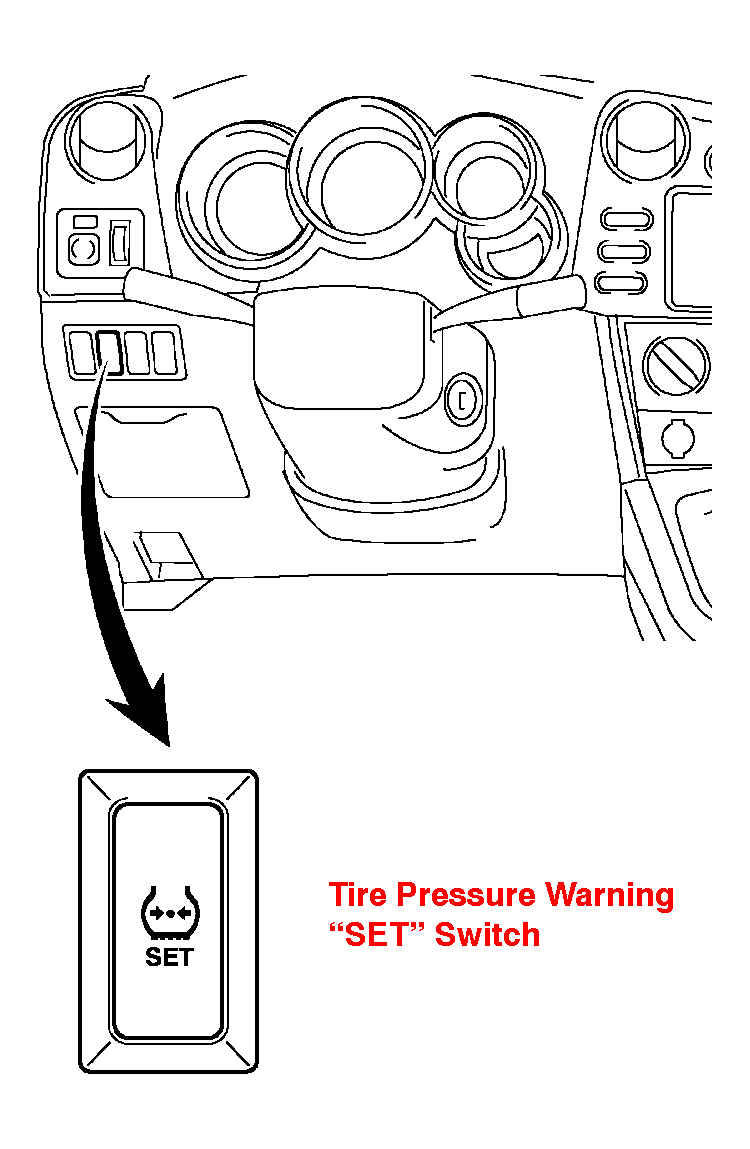

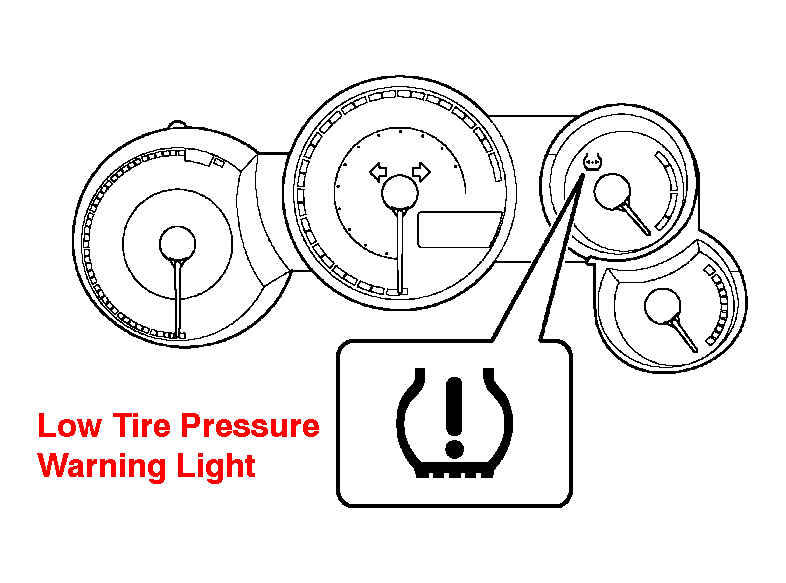

- Push and hold the Tire Pressure Warning "SET" Switch for 3 seconds until the Low Tire Pressure Warning Light blinks 3 times. Ensure that the Low Tire Pressure Warning Light goes OFF.NOTE: If the Low Tire Pressure Warning Light does NOT blink, release the Tire Pressure Warning "SET" Switch and repeat step 3 again.
REFERENCE:
While TPWS initialization is in progress, the tire pressure will be monitored.
The TPWS ECU will start to record vehicle data once the initialization process has started. The data collection process and initialization completion will depend on the vehicle owner's driving patterns, habits, and trip duration. Once the data collection process is complete, the accuracy of tire pressure detection will be increased.
