One-Way Clutch: Components

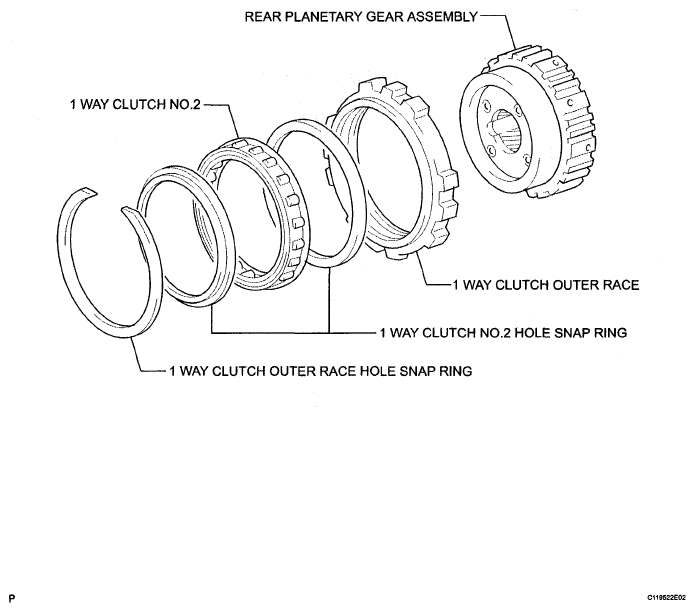

Fig 1: Identifying One-Way Clutch Components
G05234374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
