Passive Arming On/Off Selection, Entry Delay Time Selection

The RS3200 is factory-set to not  PASSIVELY Arm. To change the system's operation for Passive Arming operation, as well as adjust the ENTRY DELAY time, follow the procedure below. For more information on this feature, please refer to PASSIVE (AUTOMATIC) ARMING&DISARMING  .

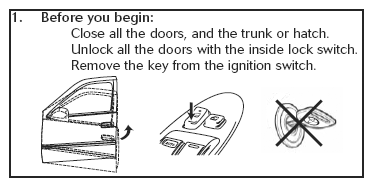

G06741932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

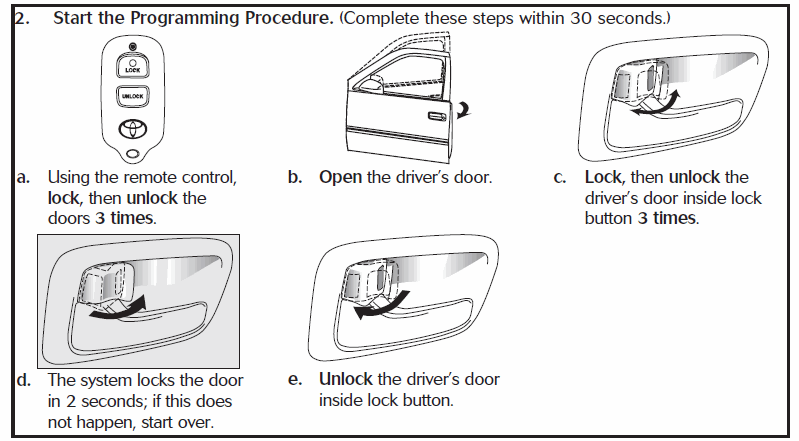

G00498823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

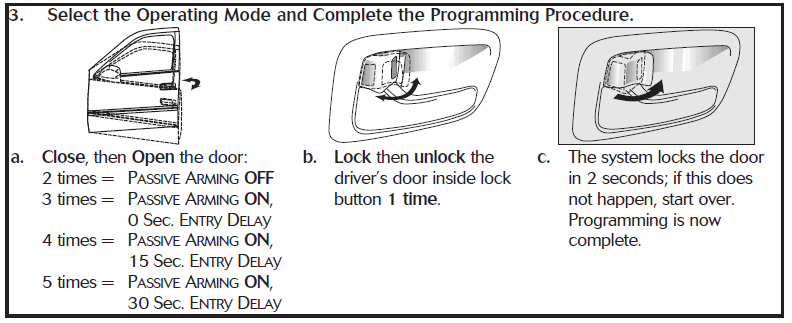

G00498824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
