DTC P0115 Engine Coolant Temperature Circuit; DTC P0117 Engine Coolant Temperature Circuit Low Input; DTC P0118 Engine Coolant Temperature Circuit High Input: Wiring Diagram

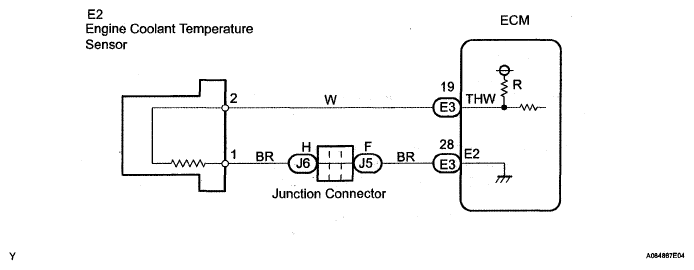

Fig 1: Engine Coolant Temperature Wiring Diagram
G05232719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
