Manual Transaxle Assembly: Components

Fig 1: Manual Transaxle Assembly Replacement Components With Torque Specifications (1 Of 3)
G05234589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

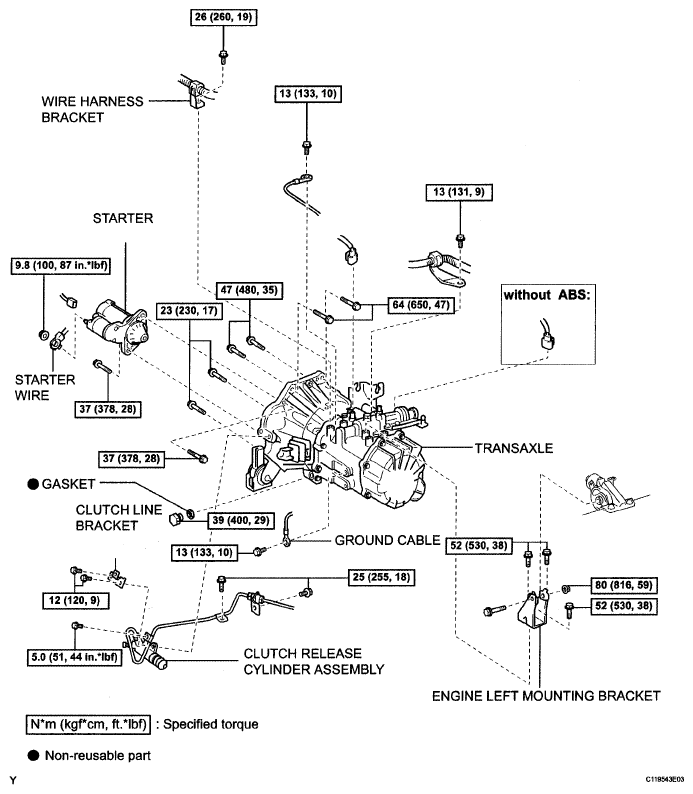

Fig 2: Manual Transaxle Assembly Replacement Components With Torque Specifications (2 Of 3)
G05234590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

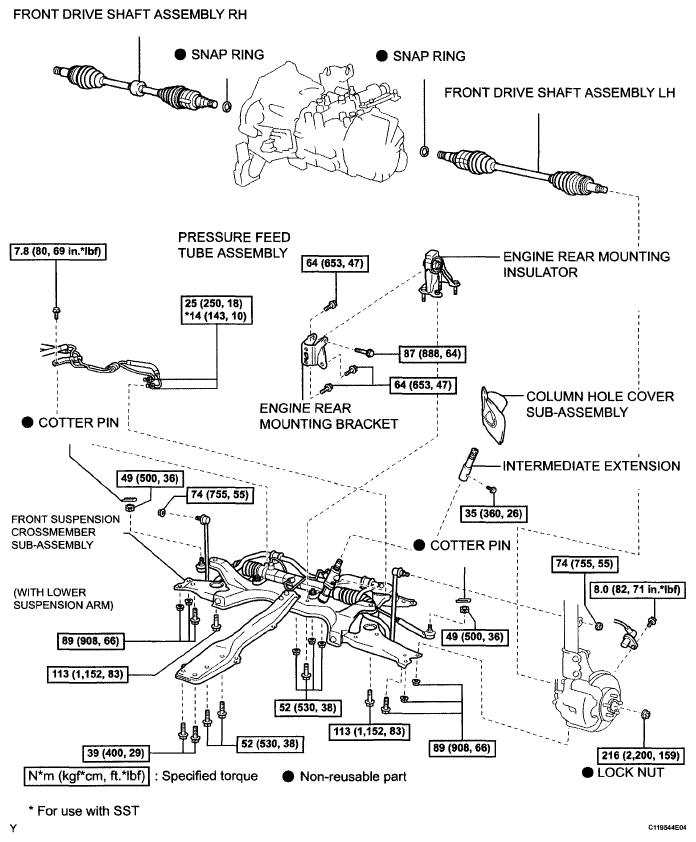

Fig 3: Manual Transaxle Assembly Replacement Components With Torque Specifications (3 Of 3)
G05234591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
