Manual Transaxle Unit: Components

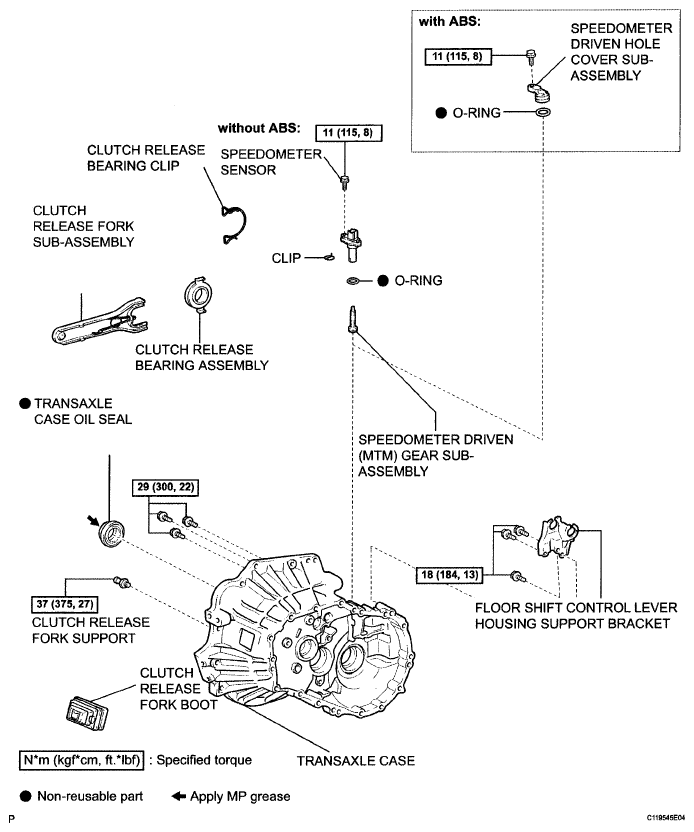

Fig 1: Manual Transaxle Unit Components With Torque Specifications (1 Of 5)
G05234619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

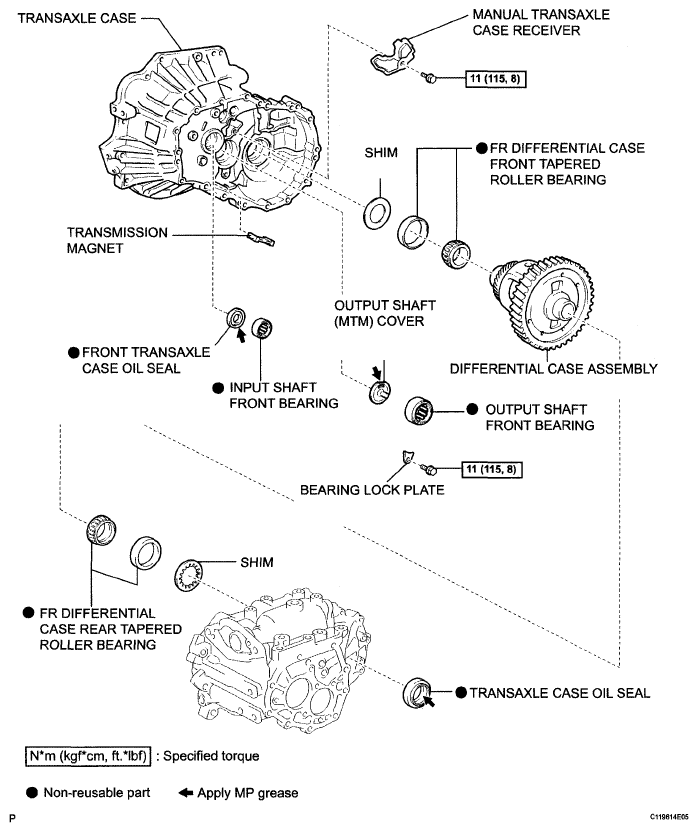

Fig 2: Manual Transaxle Unit Components With Torque Specifications (2 Of 5)
G05234620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

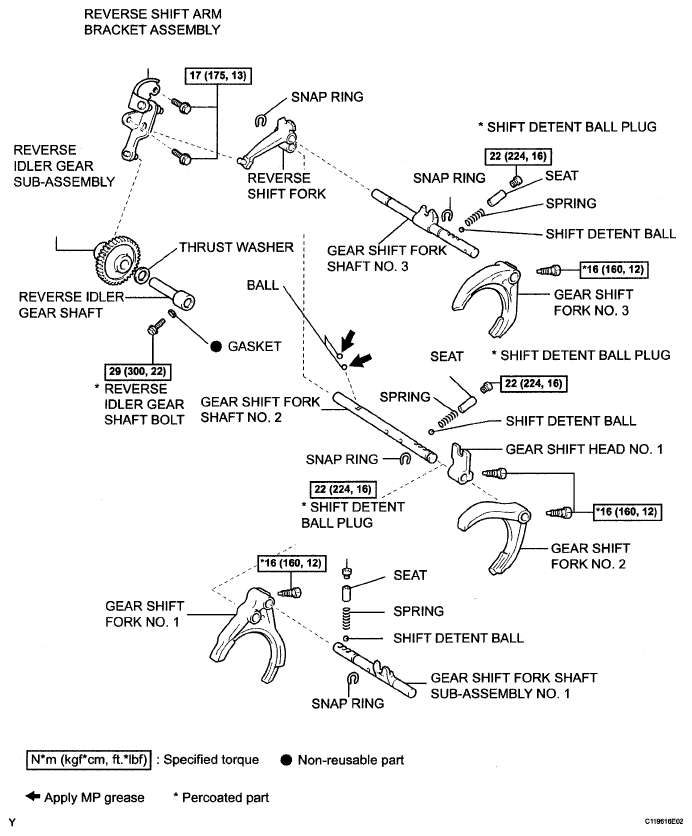

Fig 3: Manual Transaxle Unit Components With Torque Specifications (3 Of 5)
G05234621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Manual Transaxle Unit Components With Torque Specifications (4 Of 5)
G05234622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

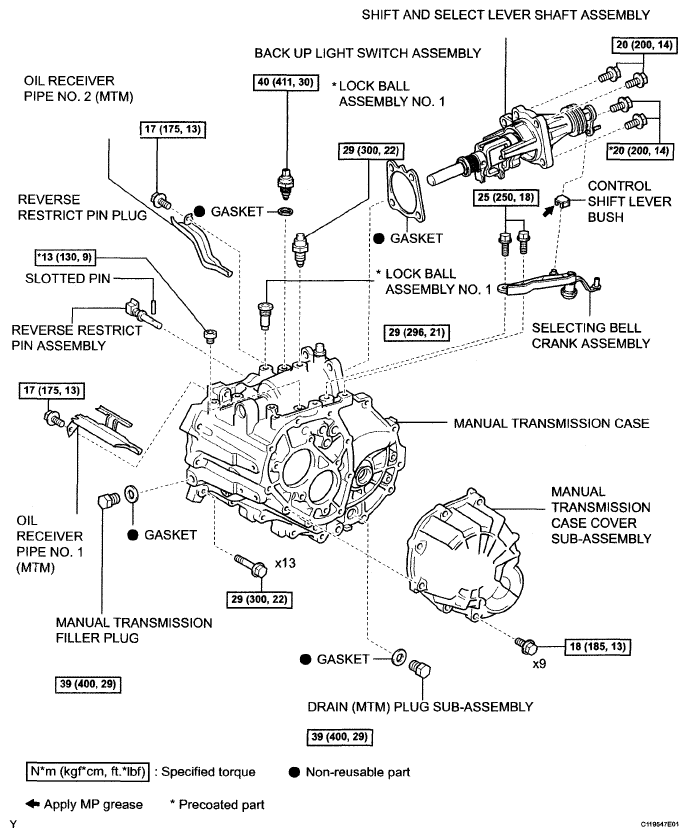

Fig 5: Manual Transaxle Unit Components With Torque Specifications (5 Of 5)
G05194280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
