| TC (E6-20) - E1 (E3-5) |
P-B - BR |
DTC output signal |
Ignition switch on → Connect terminals TC and CG of DLC3 |
10 to 14 V → Below 1 V |
| () D (E5-10) - E1 (E3-5) |
L - BR |
Clutch switch input signal |
Ignition switch on, depress clutch pedal → release clutch pedal |
Below 1 V → 10 to 14 V |
| ST1 - (E5-12) - E1 (E3-5) |
G-0 - BR |
Cruise cancel input signal |
Ignition switch on, depress brake pedal → release brake pedal |
Below 1 V → 10 to 14 V |
| STP (E5-19) - E1 (E3-5) |
G-W - BR |
Stop light switch input signal |
Ignition switch on, depress brake pedal → release brake pedal |
10 to 14 V → Below 1 V |
| CCS (E5-24) - E1 (E3-5) |
G-Y - BR |
Cruise control main switch input circuit |
Ignition switch on
CANCEL switch held ON
SET/COAST switch held ON
RES/ACC switch held ON
MAIN switch held ON |
10 to 14 V
6.6 to 10.1 V
4.5 to 7.1 V
2.3 to 4.0 V
Below 1 V |
| SPD (E5-17) - E1 (E3-5) |
V-W - BR |
Speed signal |
Ignition switch on, rotate driving wheel slowly |
Pulse generation (See

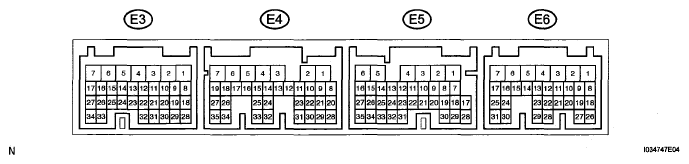

TERMINALS OF ECM
) |
| () D (E5-10) - E1 (E3-5) |
L - BR |
D shift position switch input signal |
Ignition switch on, shift lever D position → any position except D |
10 to 14 V → Below 1 V |
| PI (E5-13) - E1 (E3-5) |
G-R - BR |
Cruise indication signal |
Ignition switch on, MAIN switch OFF → MAIN switch on |
10 to 14 V → Below 1 V |
