Rear Bumper: Components

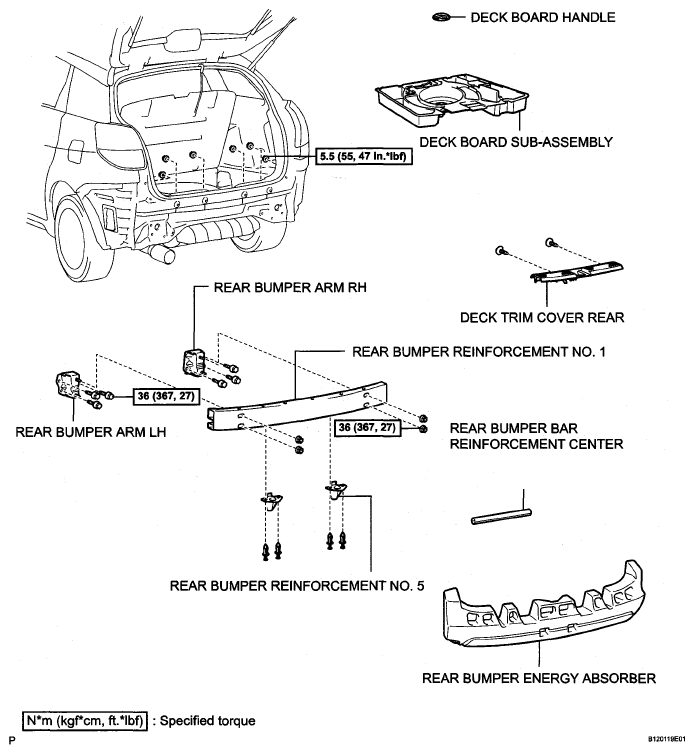

Fig 1: Rear Bumper Replacement Components With Torque Specifications (1 Of 2)
G05237431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

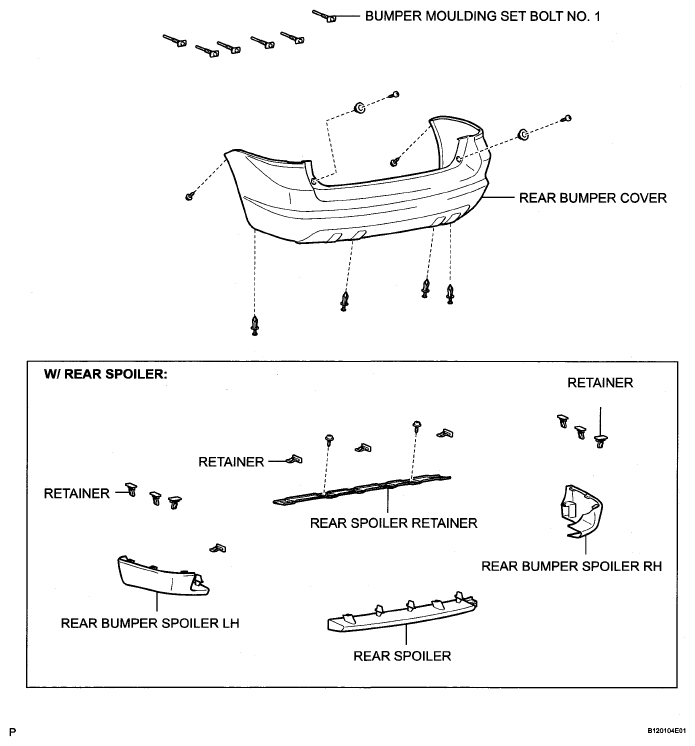

Fig 2: Identifying Rear Bumper Components (2 Of 2)
G05237432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
