Inspection Procedure

HINT:

Read freeze frame data using an intelligent tester or OBD II scan tool. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

INSPECT HEATED OXYGEN SENSOR (HEATER RESISTANCE)

Disconnect the H8 Heated Oxygen (HO2) sensor connector.

Measure the resistance between the terminals of the HO2 sensor connector.

Standard resistance

RESISTANCE SPECIFICATIONS

Tester Connections	Specified Conditions
HT (2) - + B(1)	Between 11 Ω and 16 Ω at 20°C (68°F)
HT (2) - E1 (3)	10 kΩ or higher

Reconnect the HO2 sensor connector.

Fig 1: Identifying HO2 Sensor Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE HEATED OXYGEN SENSOR

OK : Go to Next Step

INSPECT EFI RELAY

Fig 2: Inspecting EFI Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the EFI relay from the engine room R/B.

Check the EFI relay resistance.

Standard resistance

RESISTANCE SPECIFICATIONS

Tester Connections	Specified Conditions
3 - 5	10 kΩ or higher
3 - 5	Below 1 Ω (when battery voltage applied to terminals 1 and 2)

Reinstall the EFI relay.

NG: REPLACE EFI RELAY

OK : Go to Next Step

INSPECT ECM (HT1B VOLTAGE)

Turn the ignition switch to ON.

Measure the voltage between the terminals of the E4 ECM connector.

Fig 3: Identifying E4 ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

STANDARD VOLTAGE SPECIFICATIONS

Tester Connections	Specified Conditions
HT1B (E4-21) - E03 (E4-6)	Between 9 V and 14 V

OK : REPLACE ECM

NG: Go to Next Step

CHECK HARNESS AND CONNECTOR

Check the harness and connector between the ECM and HO2 sensor.

Disconnect the H8 HO2 sensor connector.
Disconnect the E4 ECM connector.

Check the resistance.

Standard resistance (Check for open)

STANDARD RESISTANCE SPECIFICATIONS FOR OPEN

Tester Connections	Specified Conditions
HT (H8-2) - HT1 B(E4-21)	Below 1 Ω

Standard resistance (Check for short)

STANDARD RESISTANCE SPECIFICATIONS (FOR SHORT)

Tester Connections	Specified Conditions
HT (H8-2) or HT1B (E4-21) - Body ground	10 kΩ or higher

Reconnect the HO2 sensor connector.
Reconnect the ECM connector.

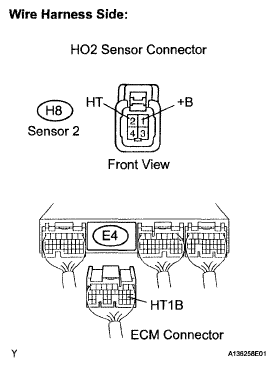

Fig 4: Identifying HO2 Sensor Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the harness and connector between the HO2 sensor and EFI relay.

Inspect the EFI2 fuse.
- Remove the EFI2 fuse from the engine room R/B.
- Check the EFI2 fuse resistance.
  Standard resistance:

  Below 1 Ω
- Reinstall the EFI2 fuse.

  Fig 5: Identifying EFI Relay Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the H8 HO2 sensor connector.
Remove the EFI relay from the engine room R/B.
