Vane Pump: Components

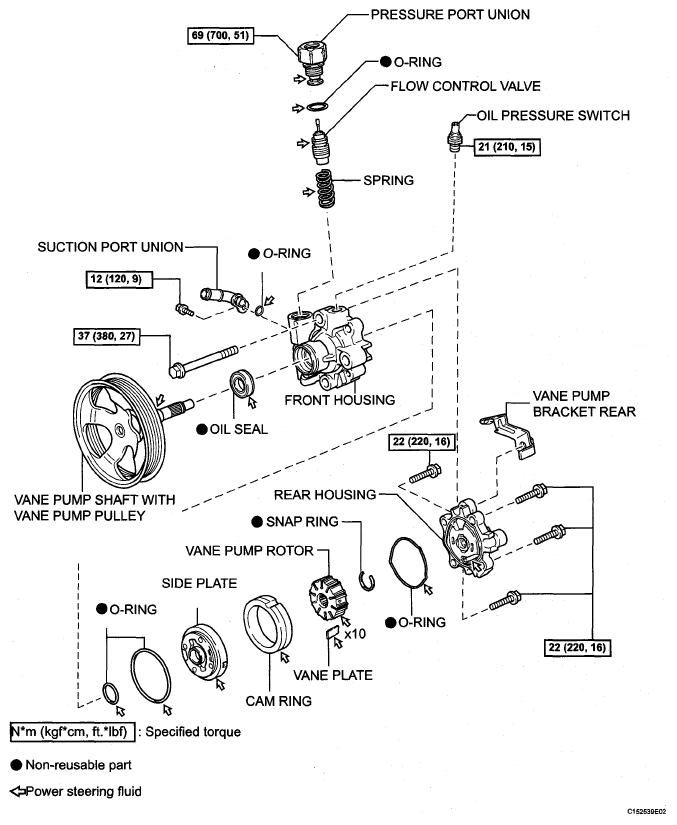

Fig 1: Vane Pump Replacement Components With Torque Specifications
G05236100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
