Transmission Control Cable: Components

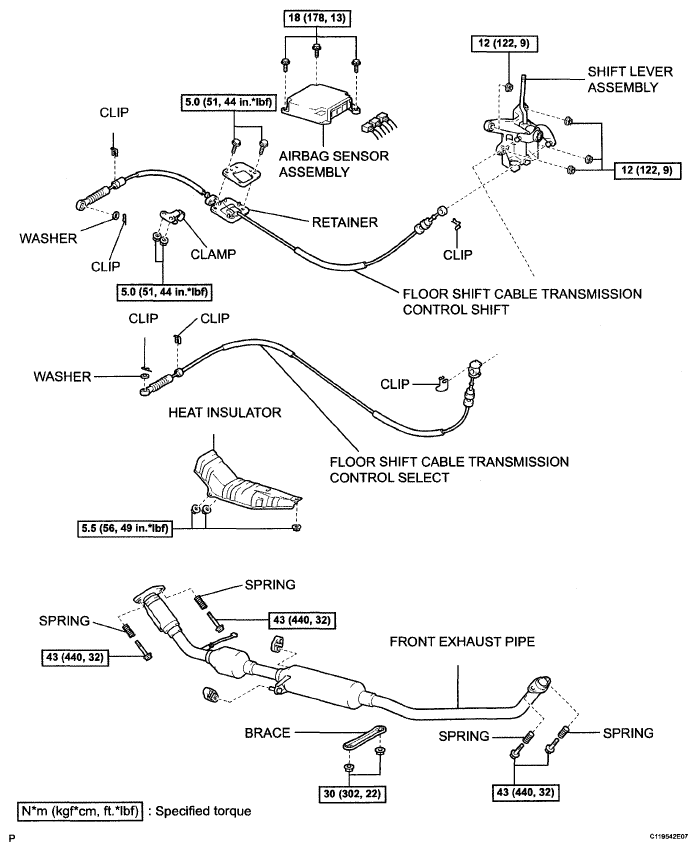

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications
G05234572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
