Light Control Switch Circuit
Light Control Switch Circuit

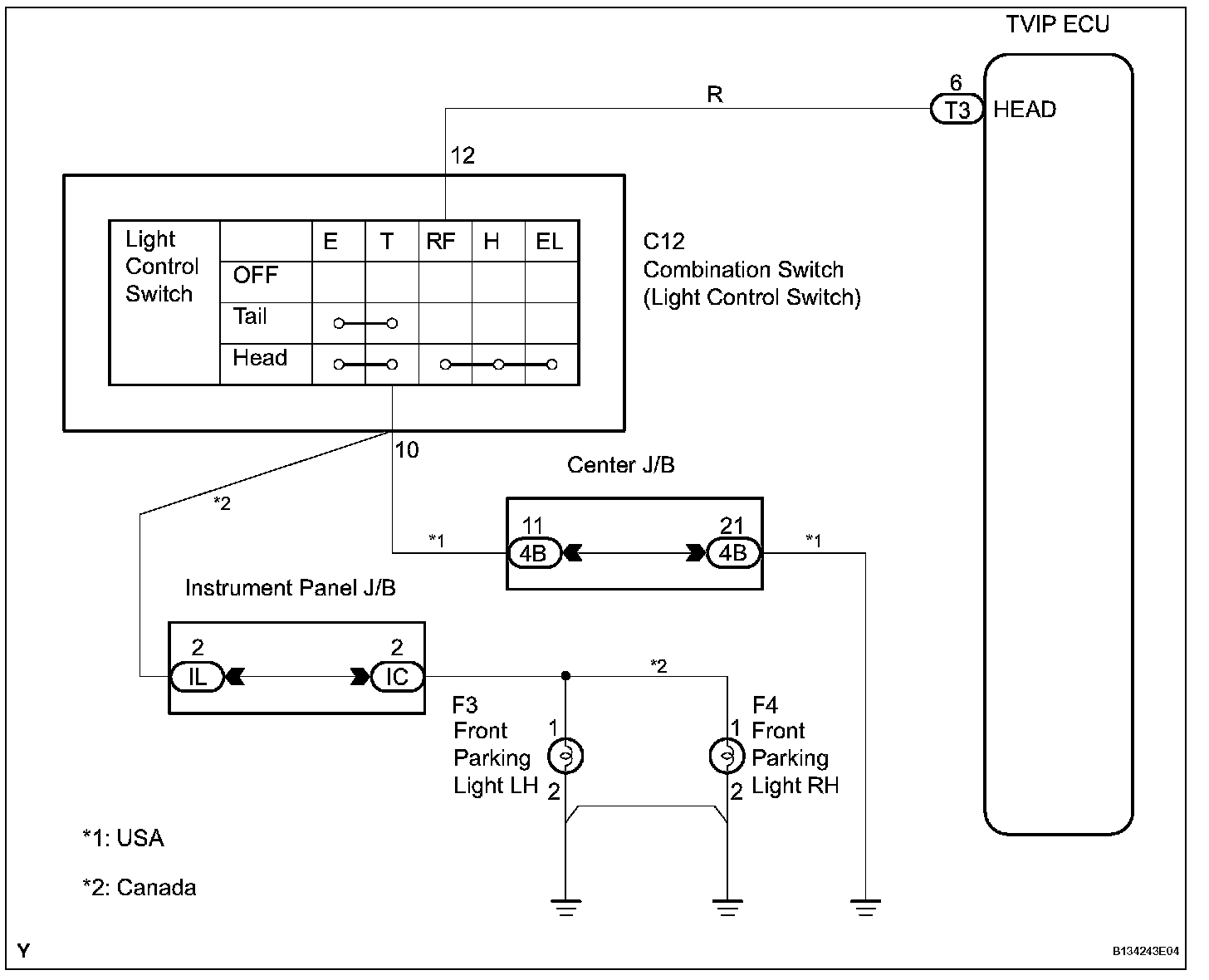

Wiring Diagram:

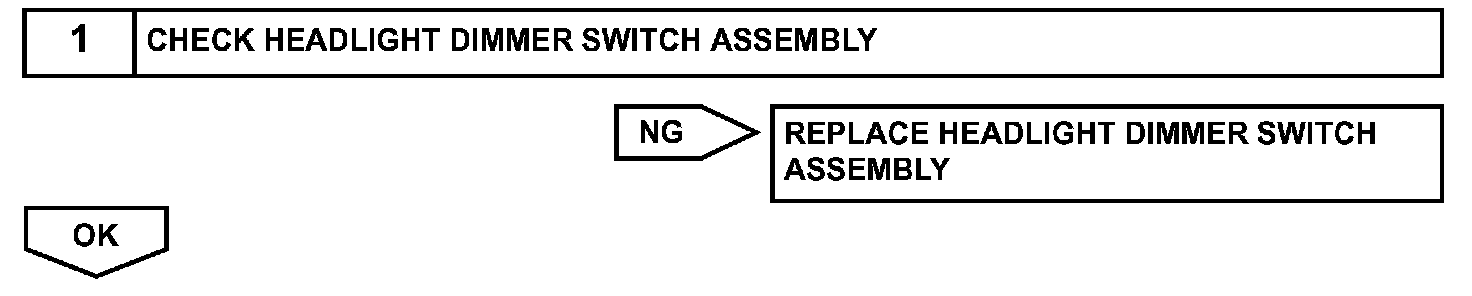

Step 1:

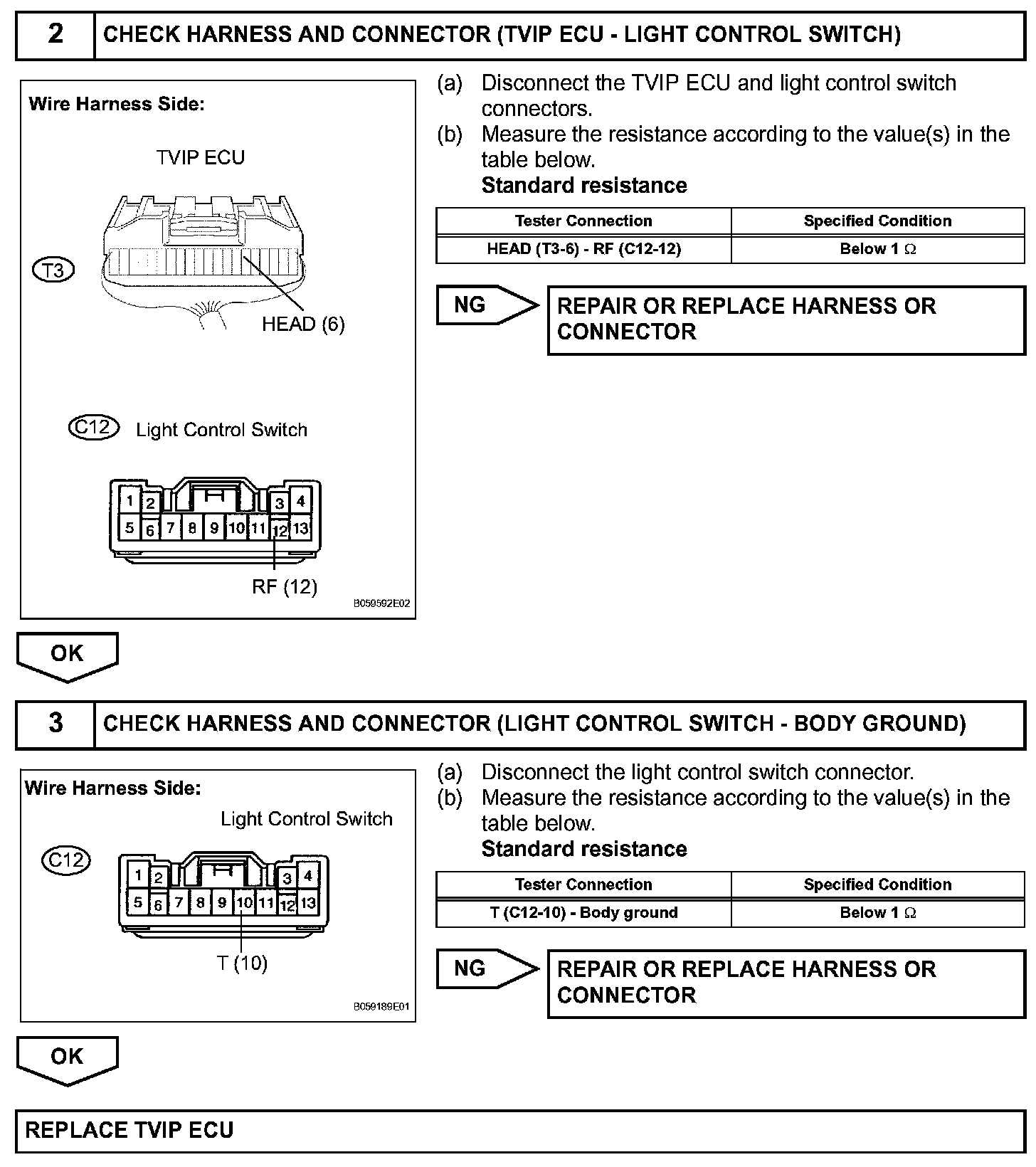

Step 2-3:
INSPECTION PROCEDURE
