Wheel Speed Sensor

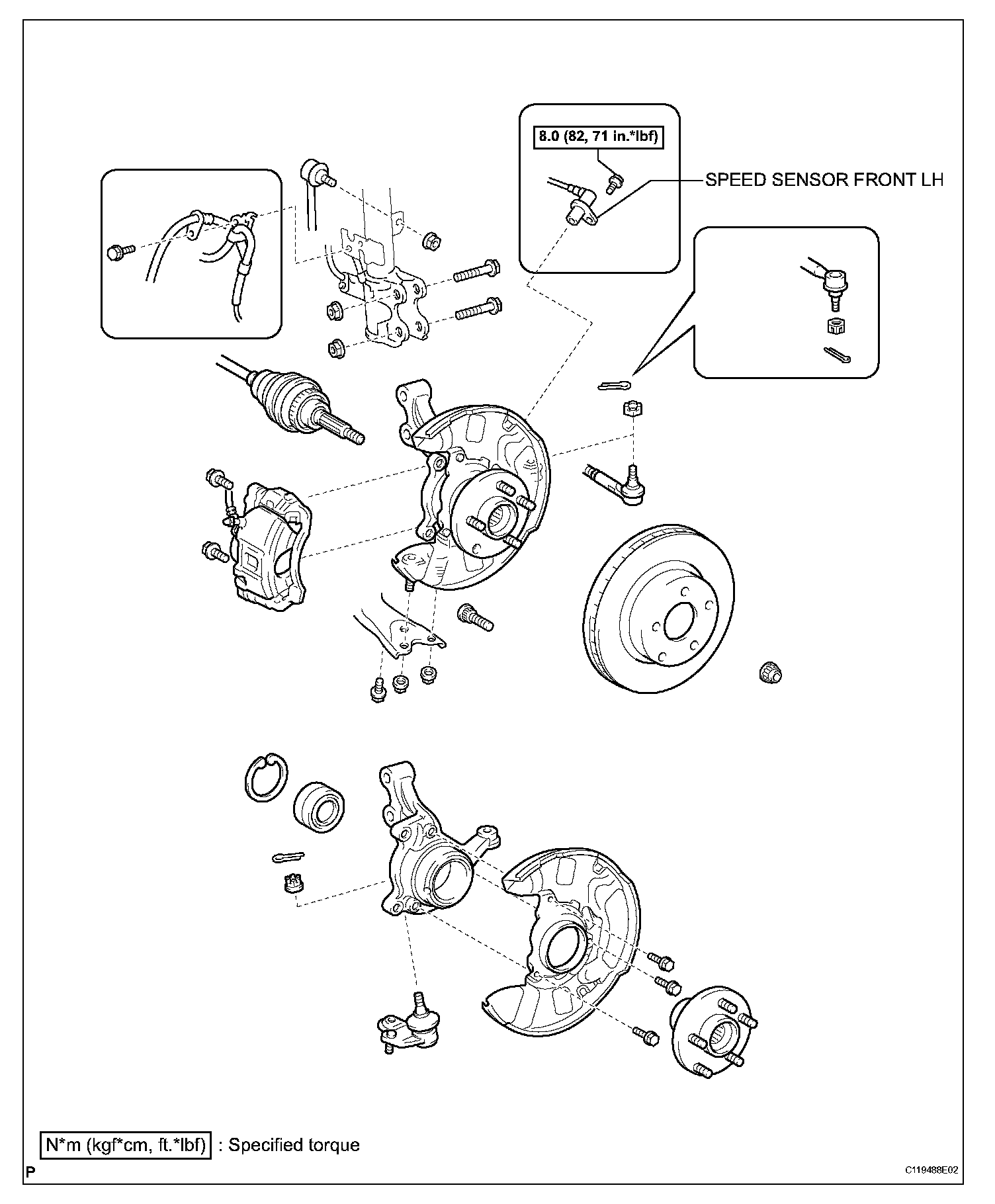

Front Speed Sensor:
Front Speed Sensor:

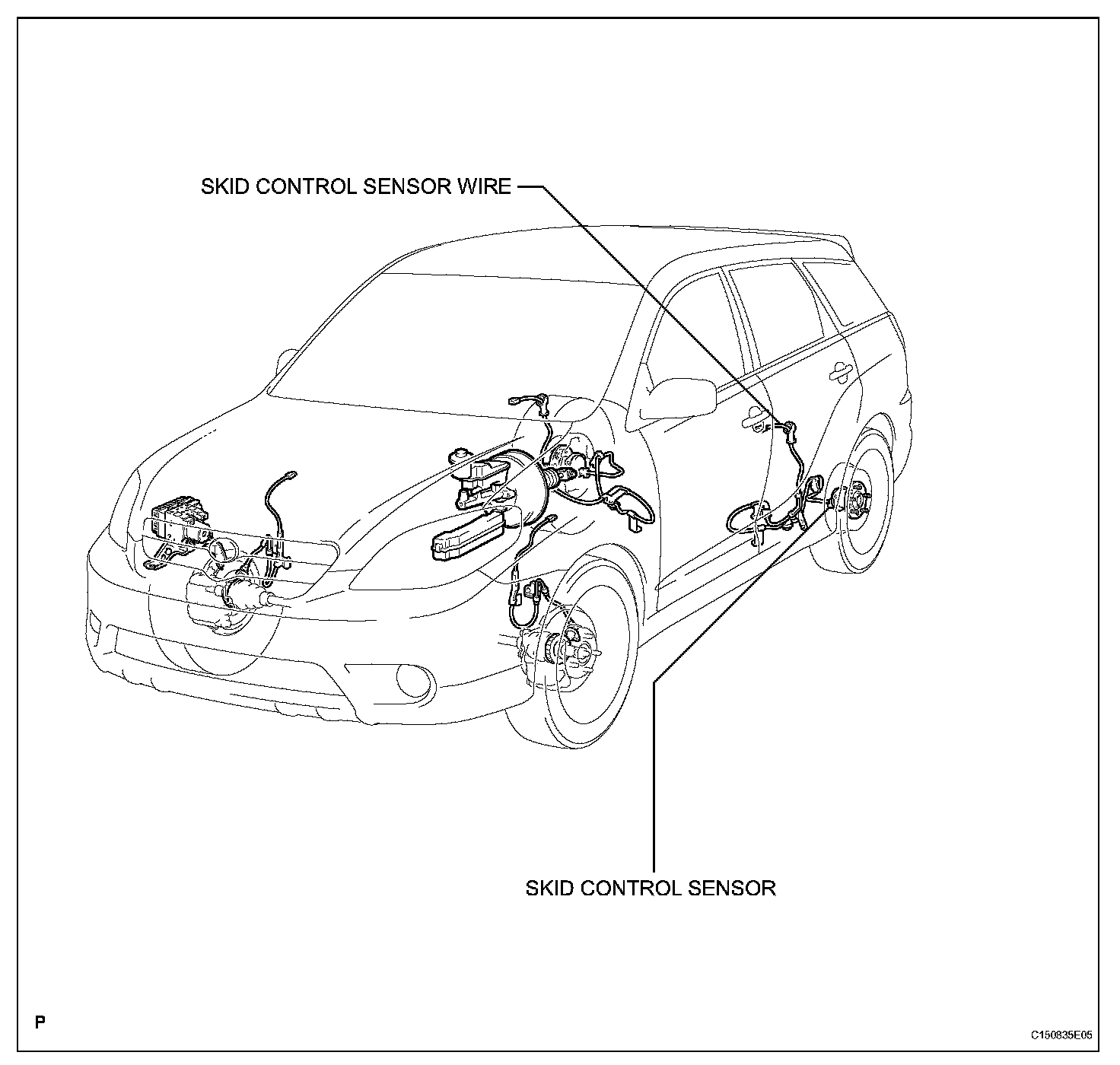

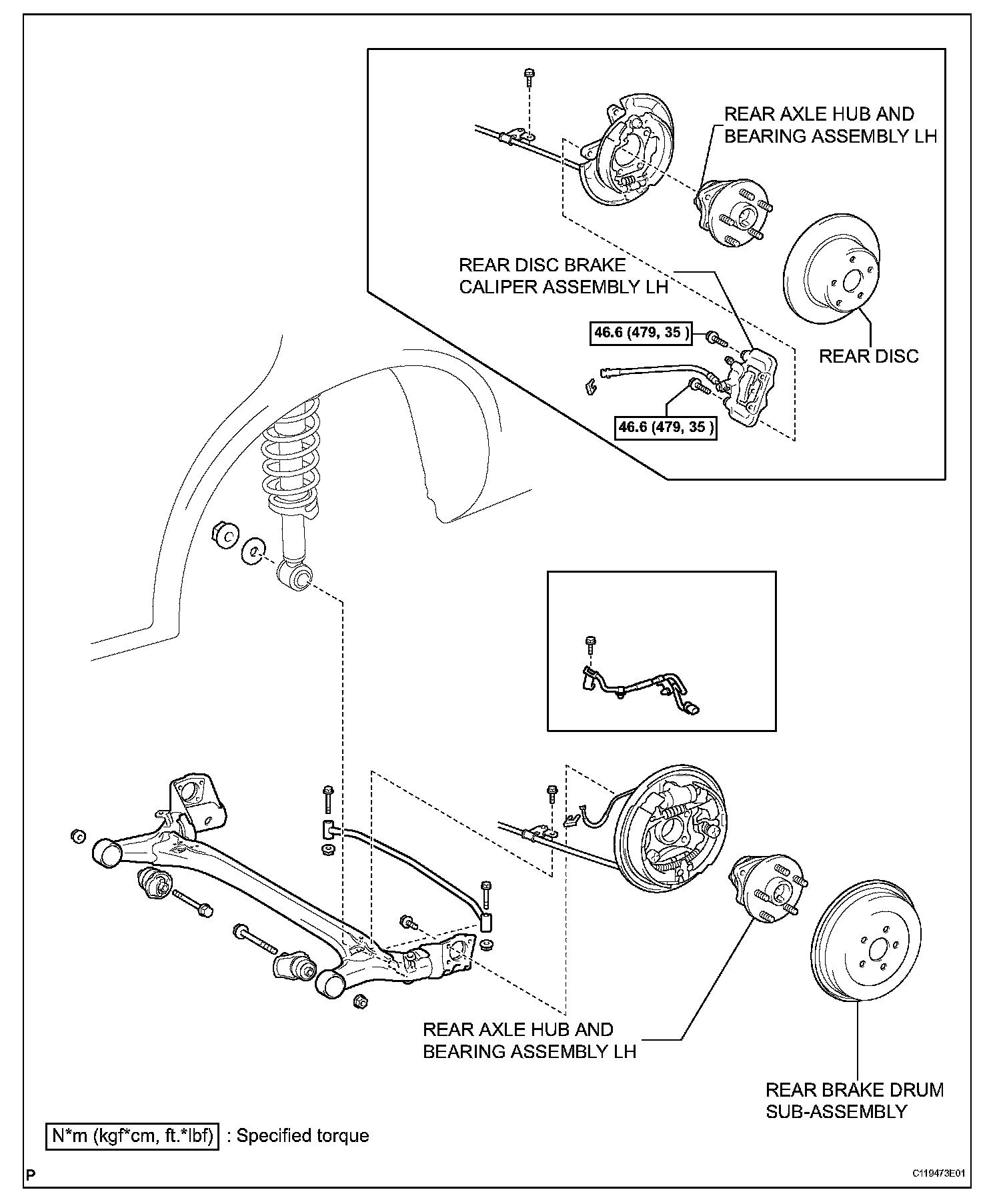

Skid Control Sensor:
Skid Control Sensor:
