Rear Wheel Alignment

NOTICE: For Zero Point Calibration information, please refer to: TSB T-SB-0020-8 (3/25/08).

REAR WHEEL ALIGNMENT

ADJUSTMENT
1. INSPECT TIRES
2. MEASURE VEHICLE HEIGHT

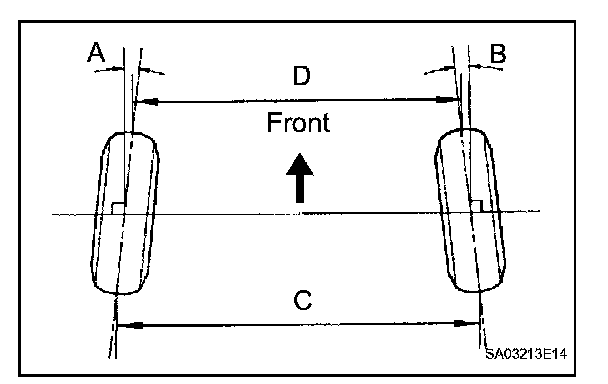

3. INSPECT TOE-IN
If the toe-in is not within the specified range, inspect the suspension parts and replace parts if necessary.

(a) Inspect the toe-in.

Toe-in:

4. INSPECT CAMBER

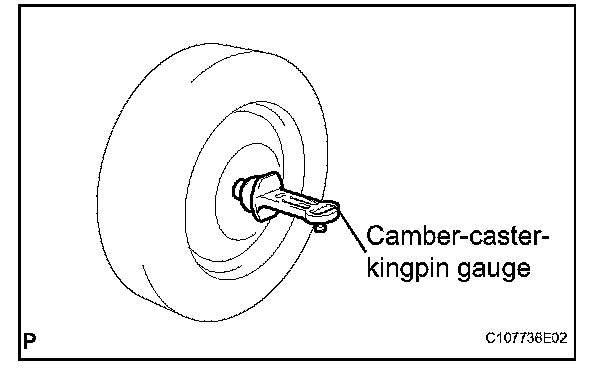

(a) Install a camber-caster-kingpin gauge or put the wheels on a wheel alignment tester.
(b) Inspect the camber.

Camber:

If the measured value is not within the specified range, inspect the suspension parts for damage and wear. Replace parts as necessary because camber cannot be properly adjusted with any damaged or worn parts.
