CAN Main Bus Line for Disconnection

CAN Main Bus Line for Disconnection

DESCRIPTION

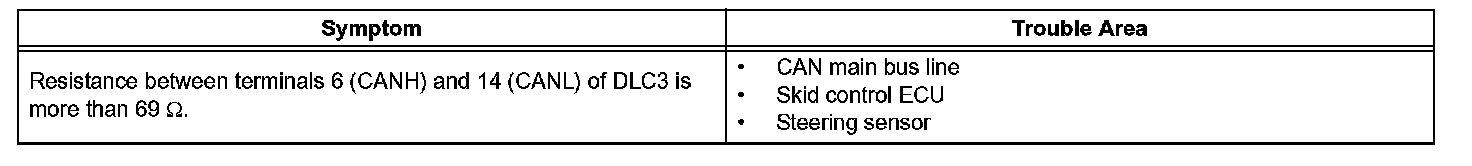

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 ohms.

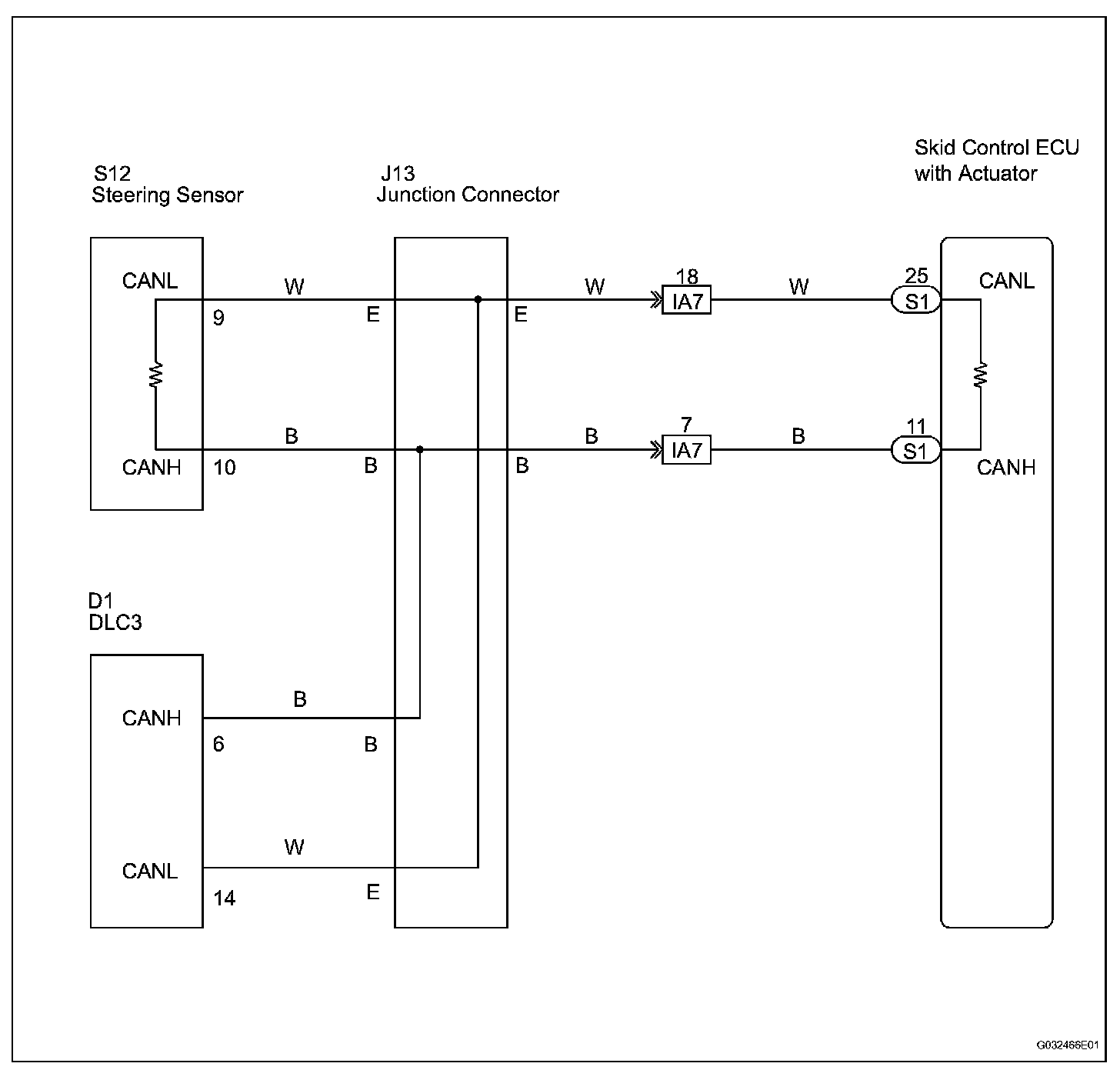

Wiring Diagram:

Step 1-2:

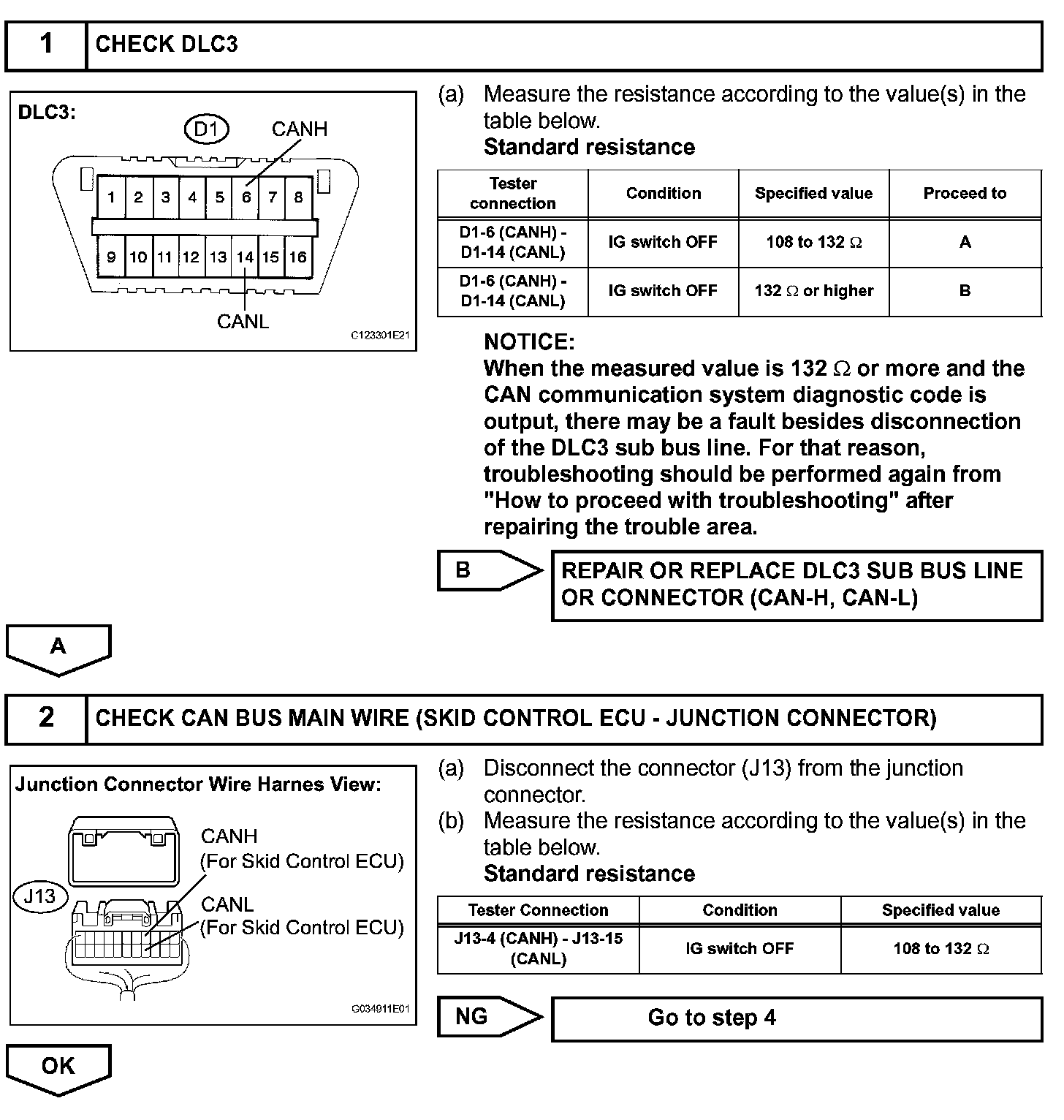

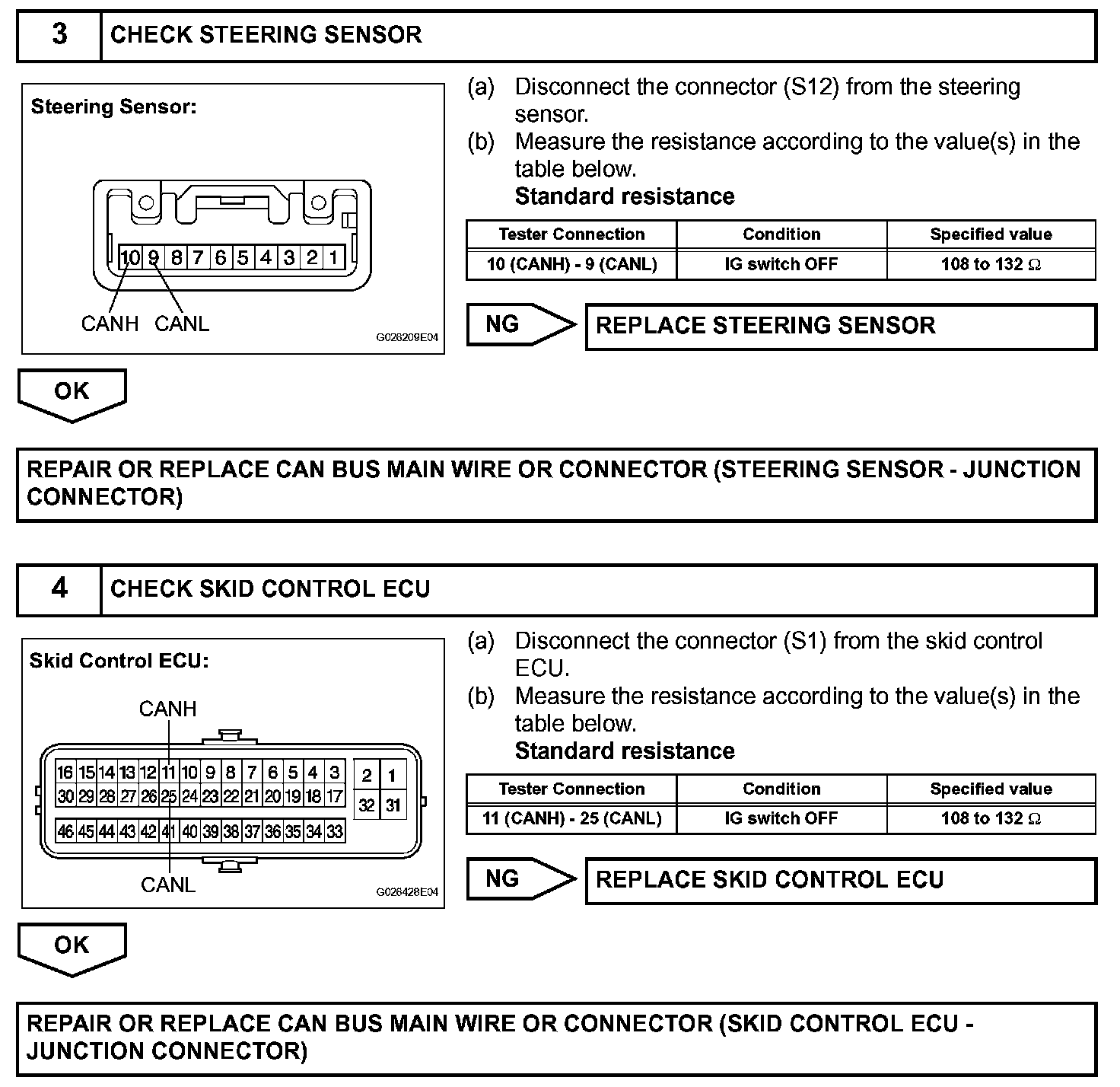

Step 3-4:

INSPECTION PROCEDURE
