Check CAN Bus Line For Short to GND

Check CAN Bus Line for Short to GND

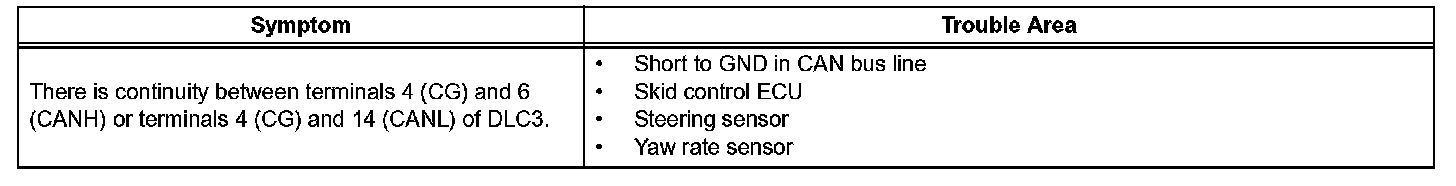

DESCRIPTION




A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 6 (CANH) or terminals 4 (CG) and 14 (CANL) of the DLC3.

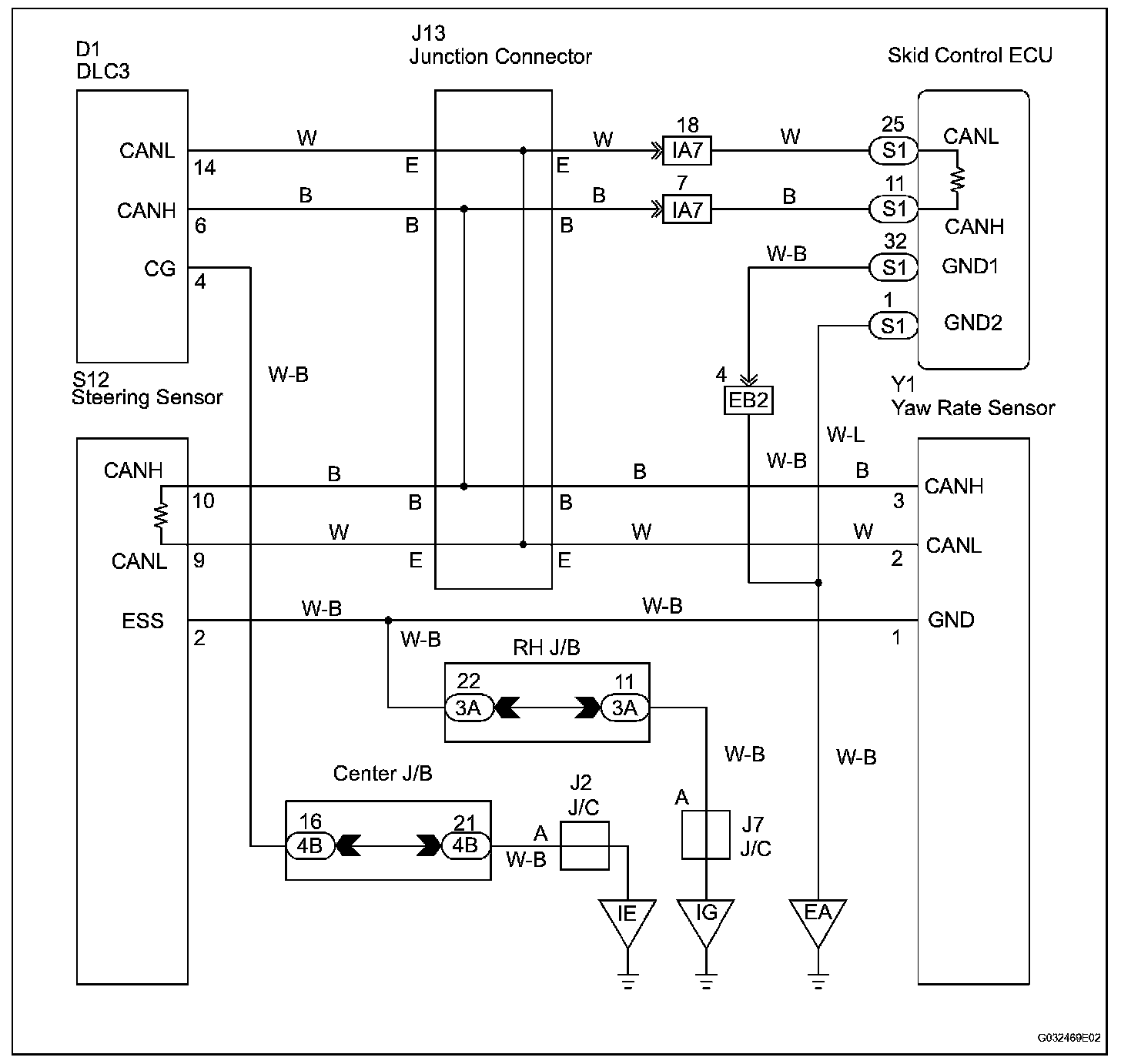

Wiring Diagram:

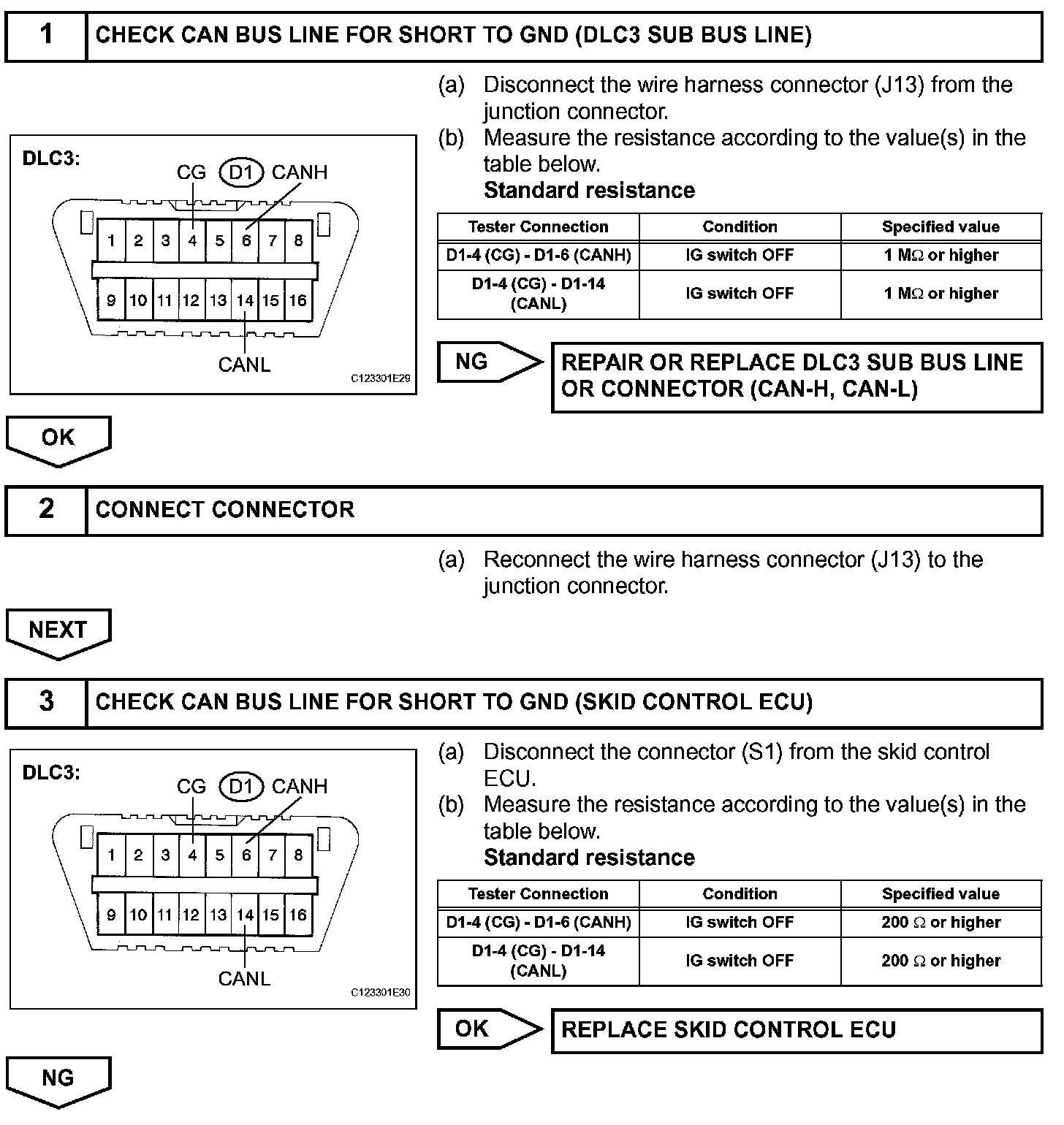

Step 1-3:

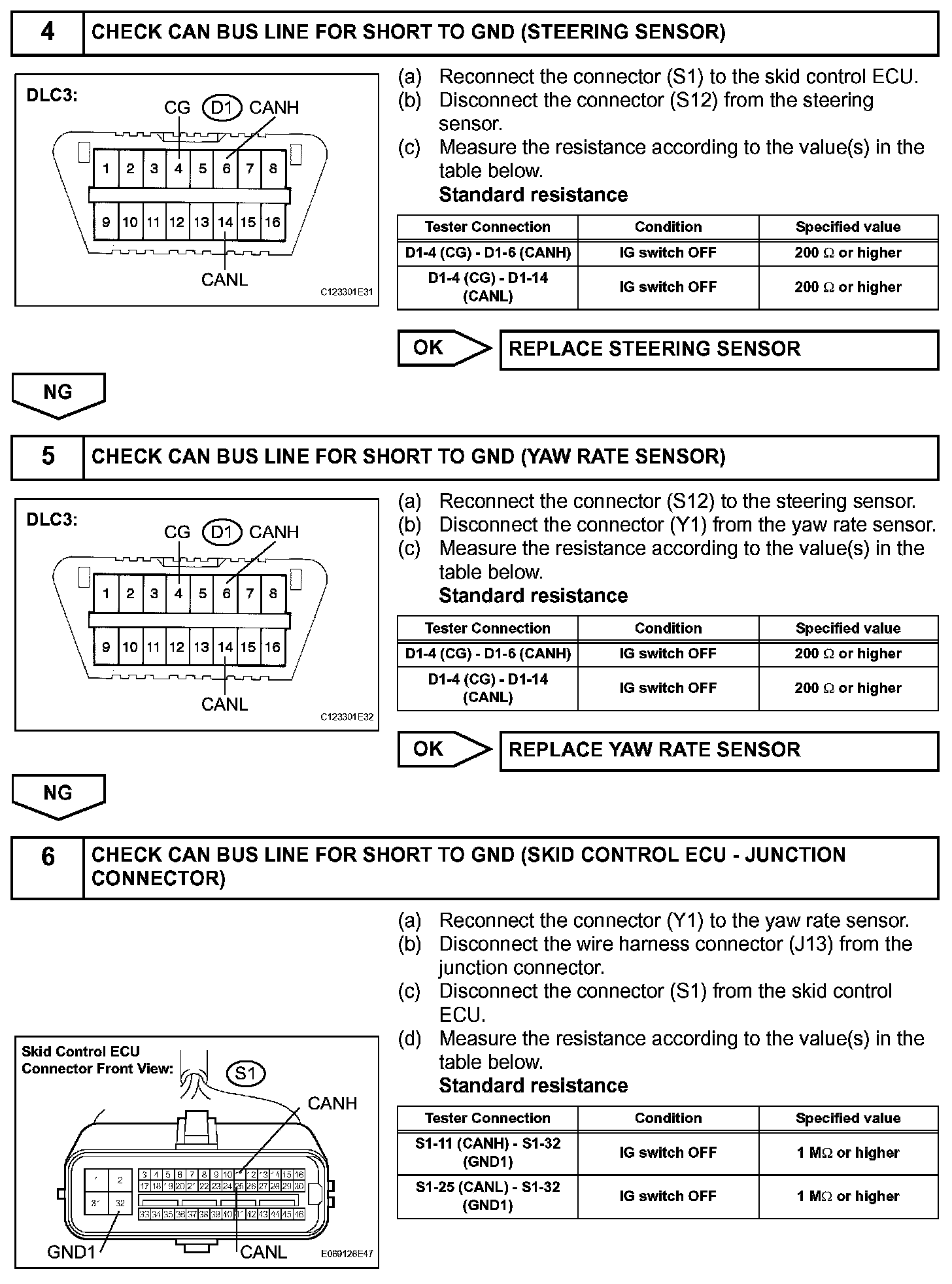

Step 4-6:

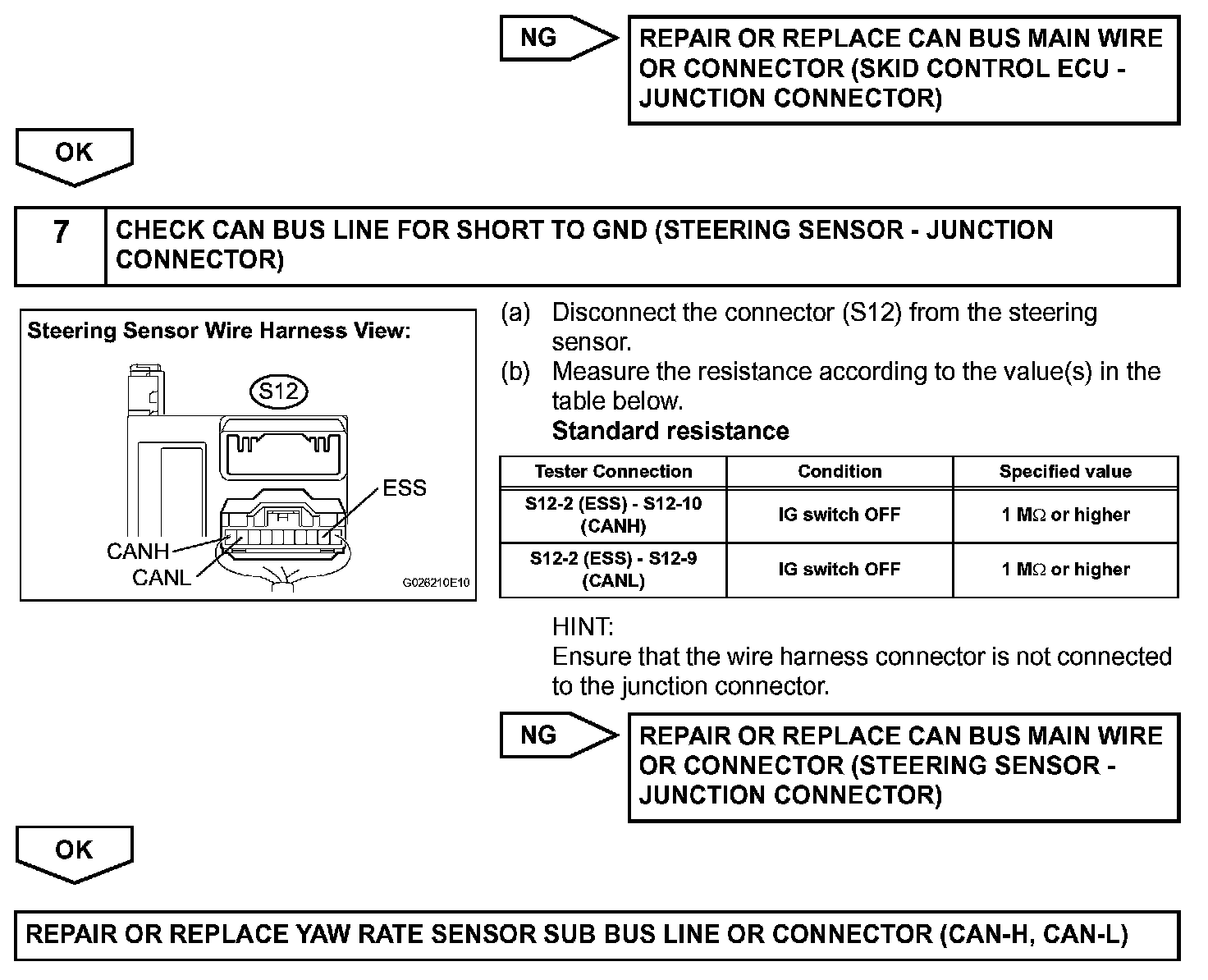

Step 6(continued)-7:

INSPECTION PROCEDURE
