Check CAN Bus Line

Check CAN Bus Line

DESCRIPTION

When any DTC for the CAN communication is output, first measure the resistance between the terminals of the DLC3 and the yaw rate sensor connector to specify the trouble area.

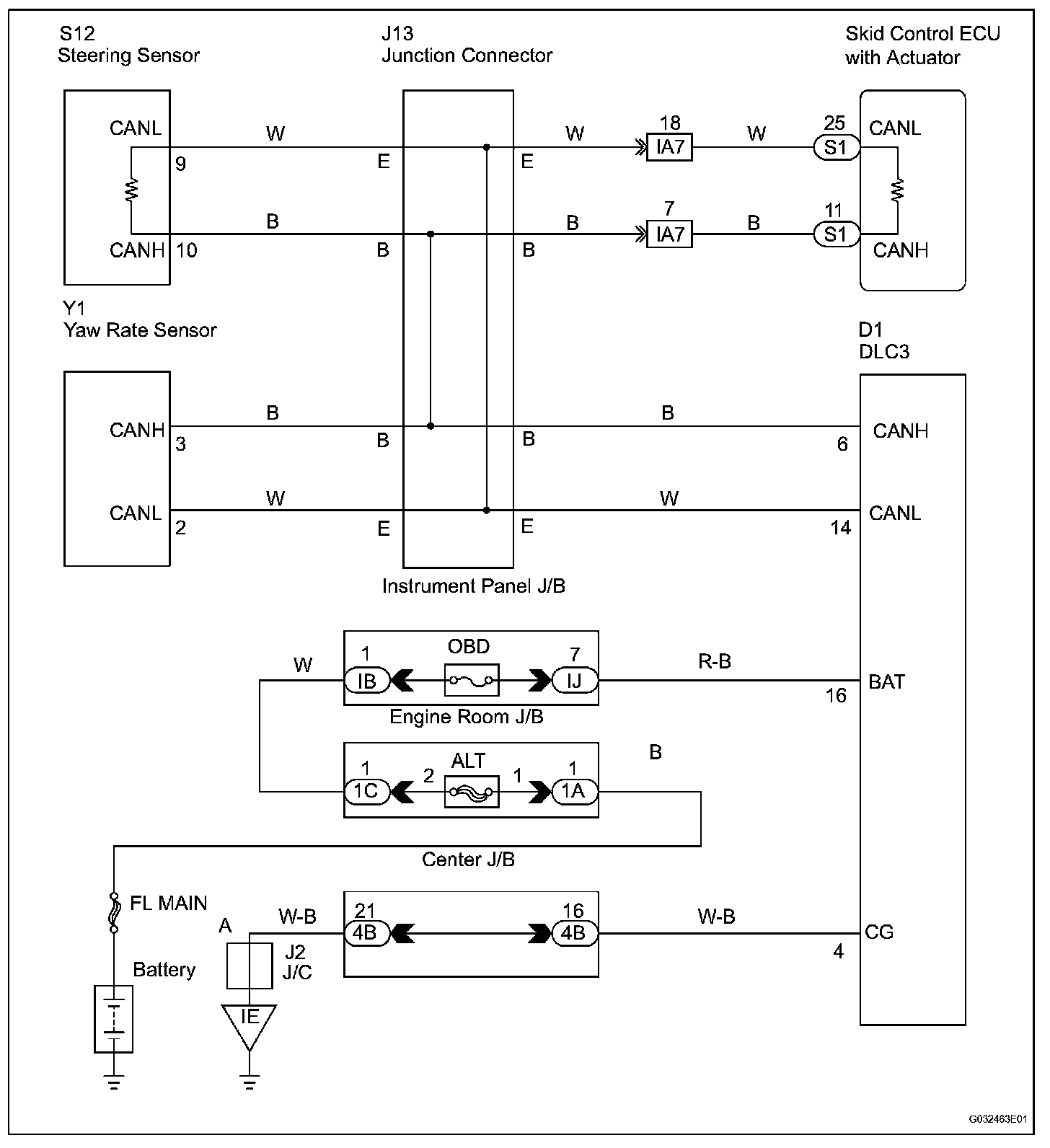

Wiring Diagram:

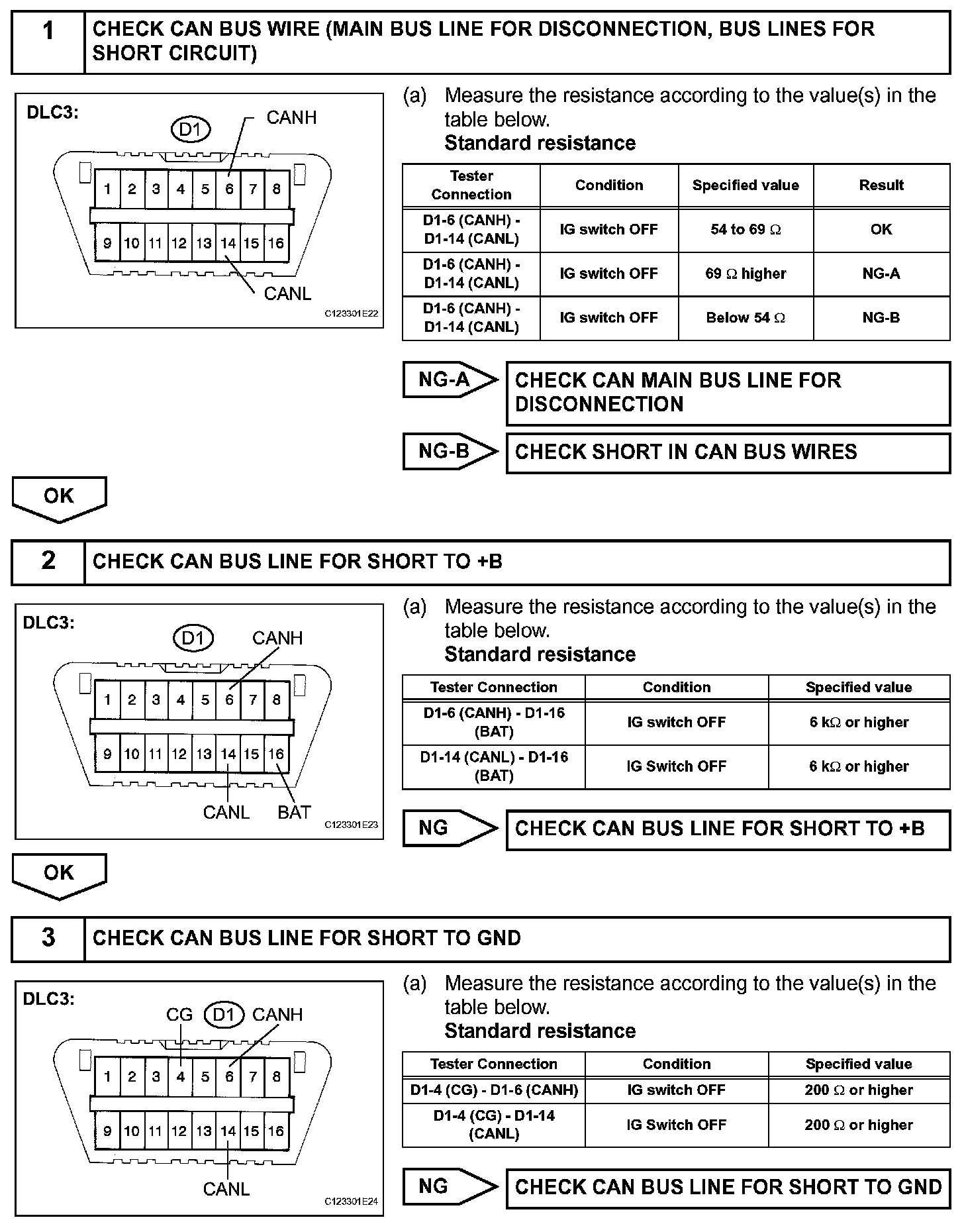

Step 1-3:

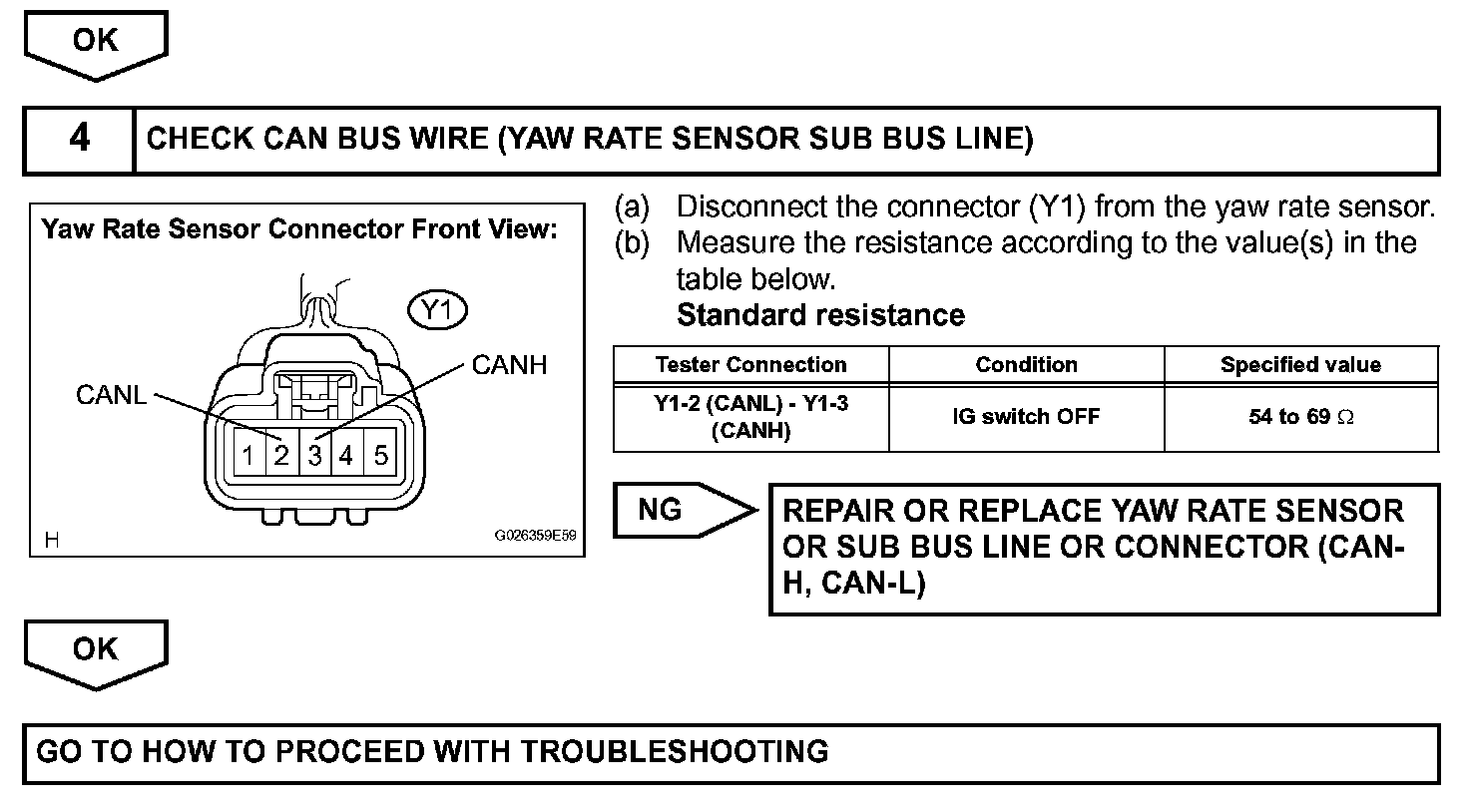

Step 3(continued)-4:

INSPECTION PROCEDURE
