Check CAN Bus Lines For Short Circuit

Check CAN Bus Lines for Short Circuit

DESCRIPTION

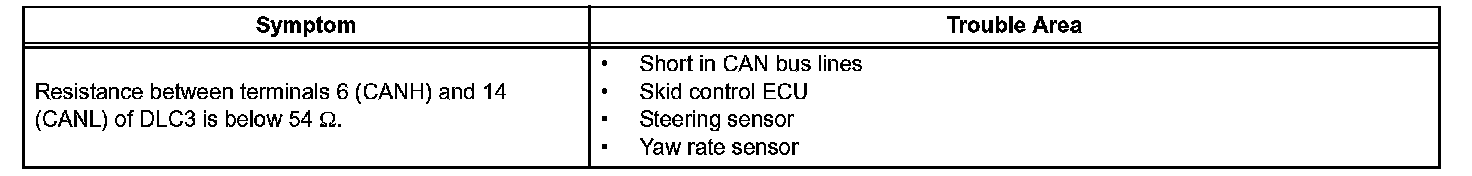

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54.

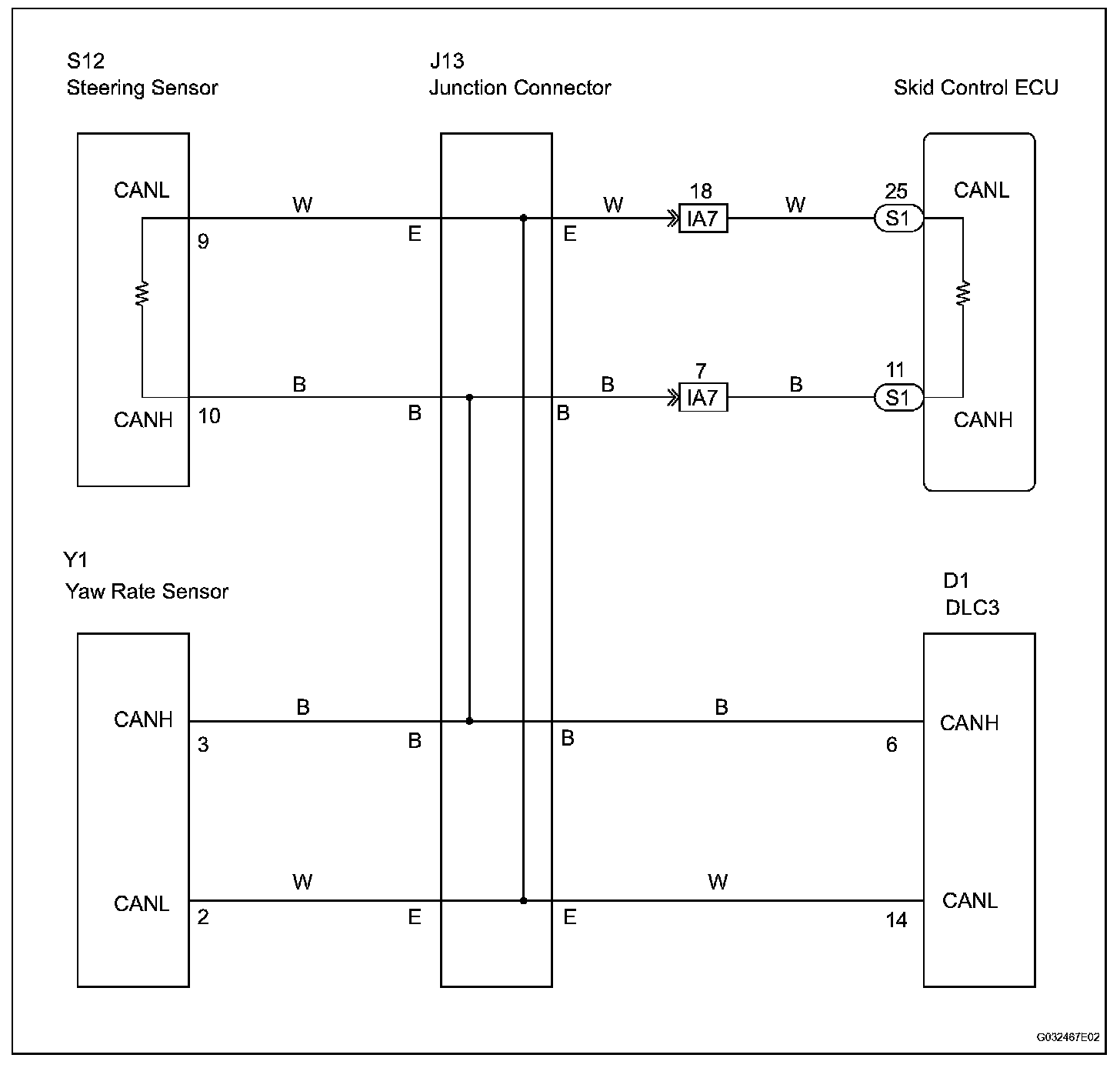

Wiring Diagram:

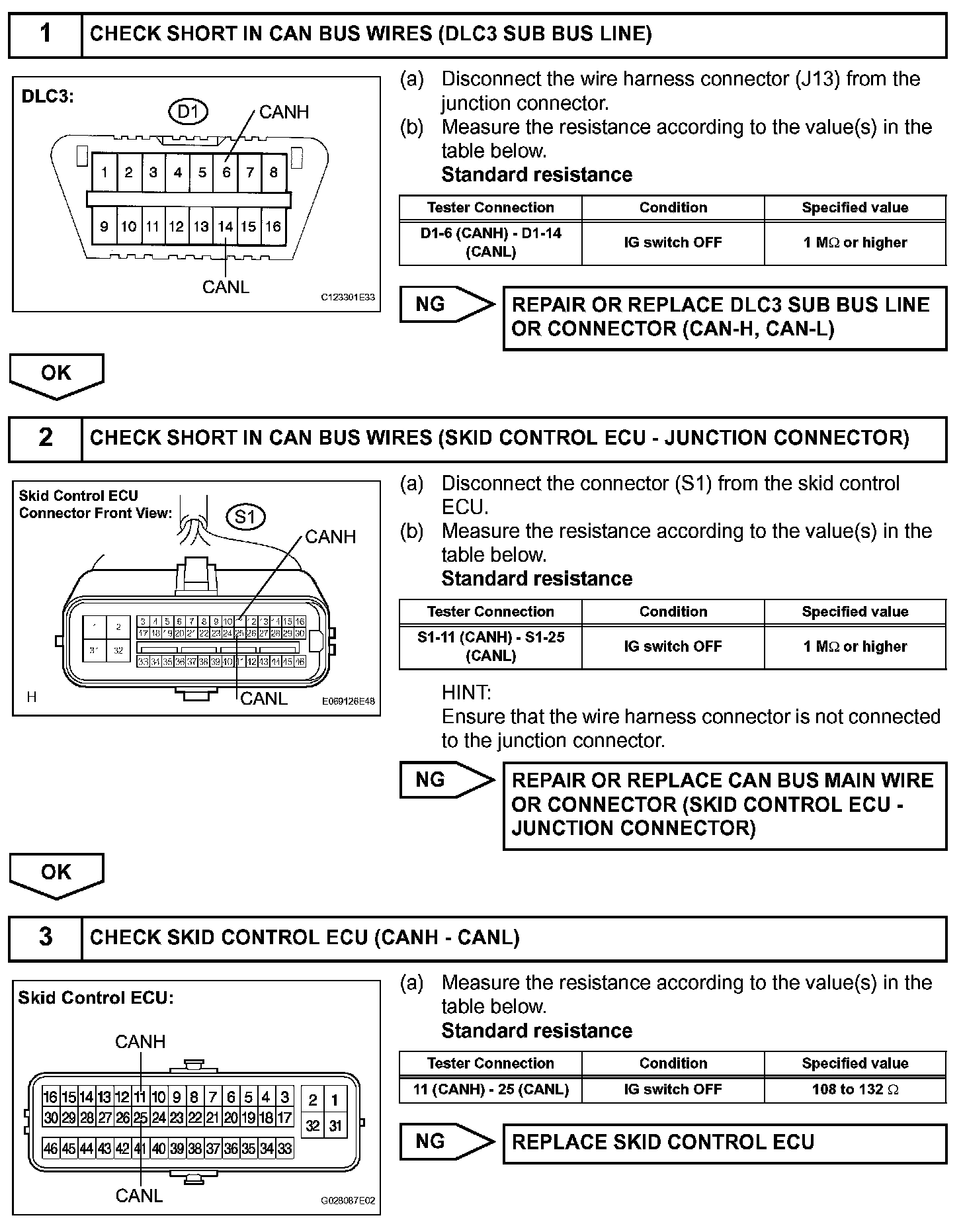

Step 1-3:

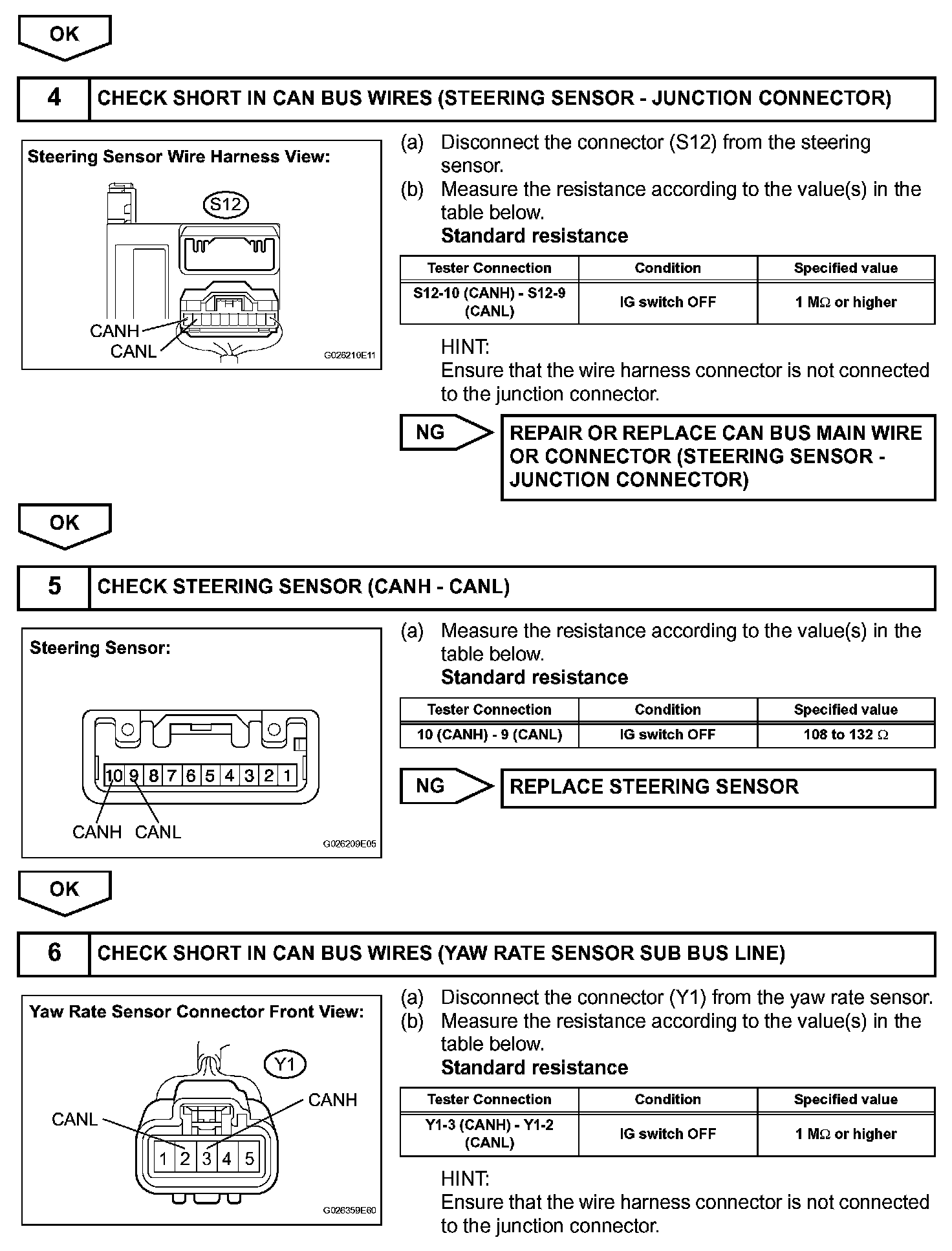

Step 3(continued)-6:

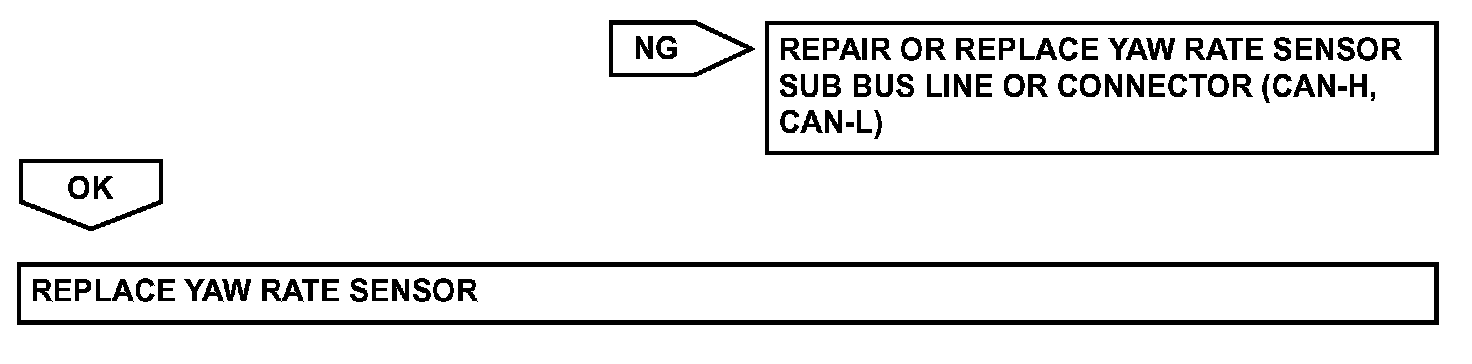

Step 6(continued):

INSPECTION PROCEDURE
