Skid Control ECU Communication Stop Mode
Skid Control ECU Communication Stop Mode
DESCRIPTION

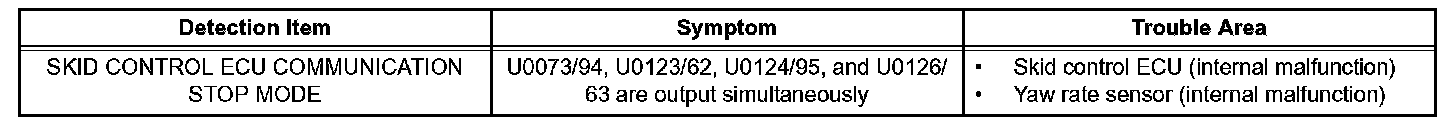

Detection Item:

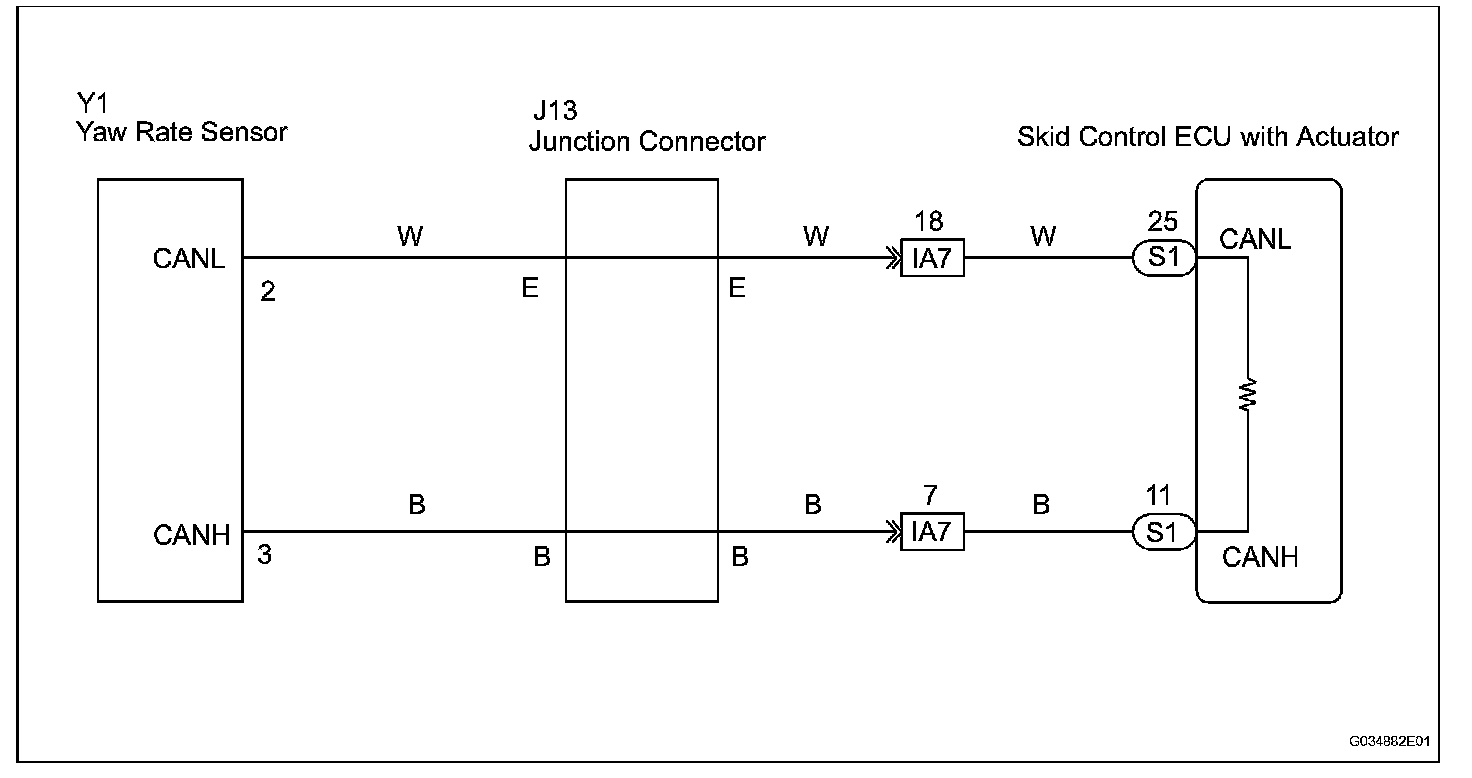

Wiring Diagram:
INSPECTION PROCEDURE

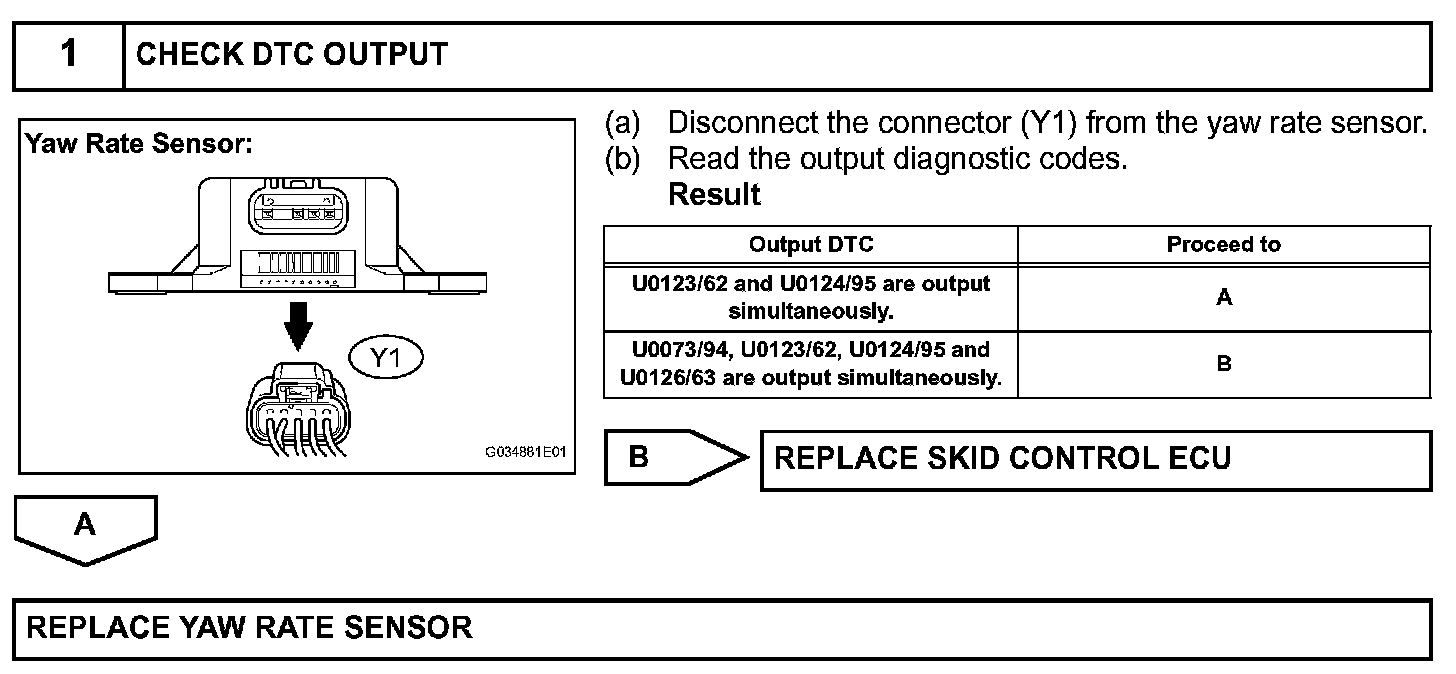

Step 1:
