Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

DESCRIPTION

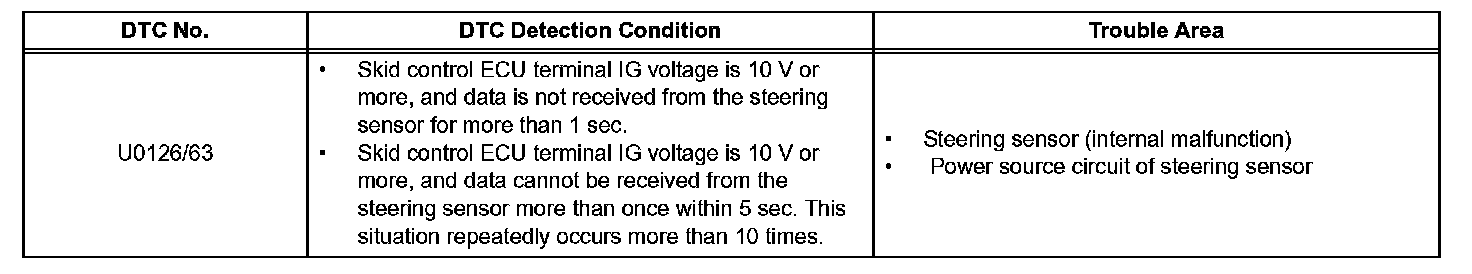

DTC Detection Condition:

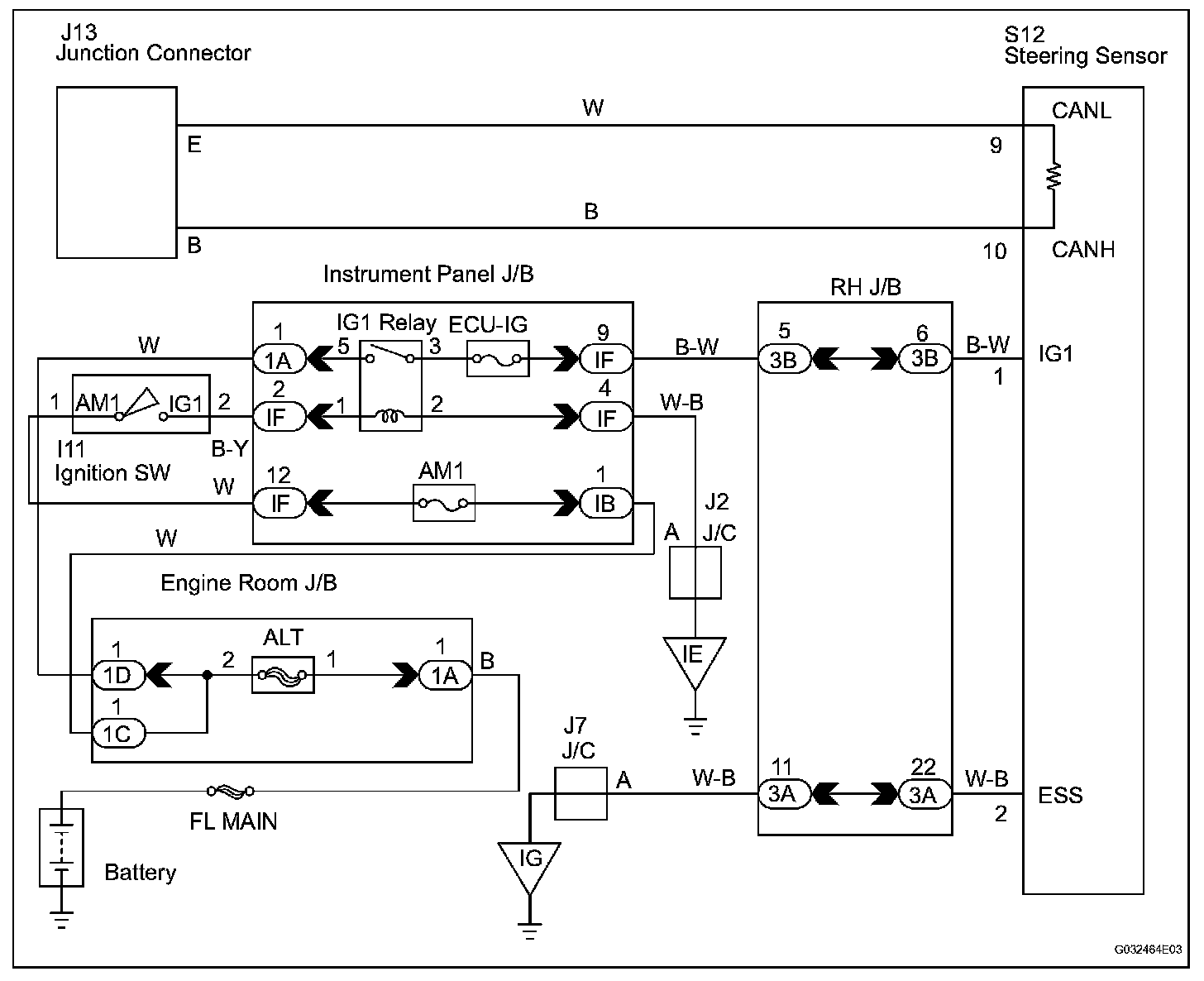

Wiring Diagram:





INSPECTION PROCEDURE

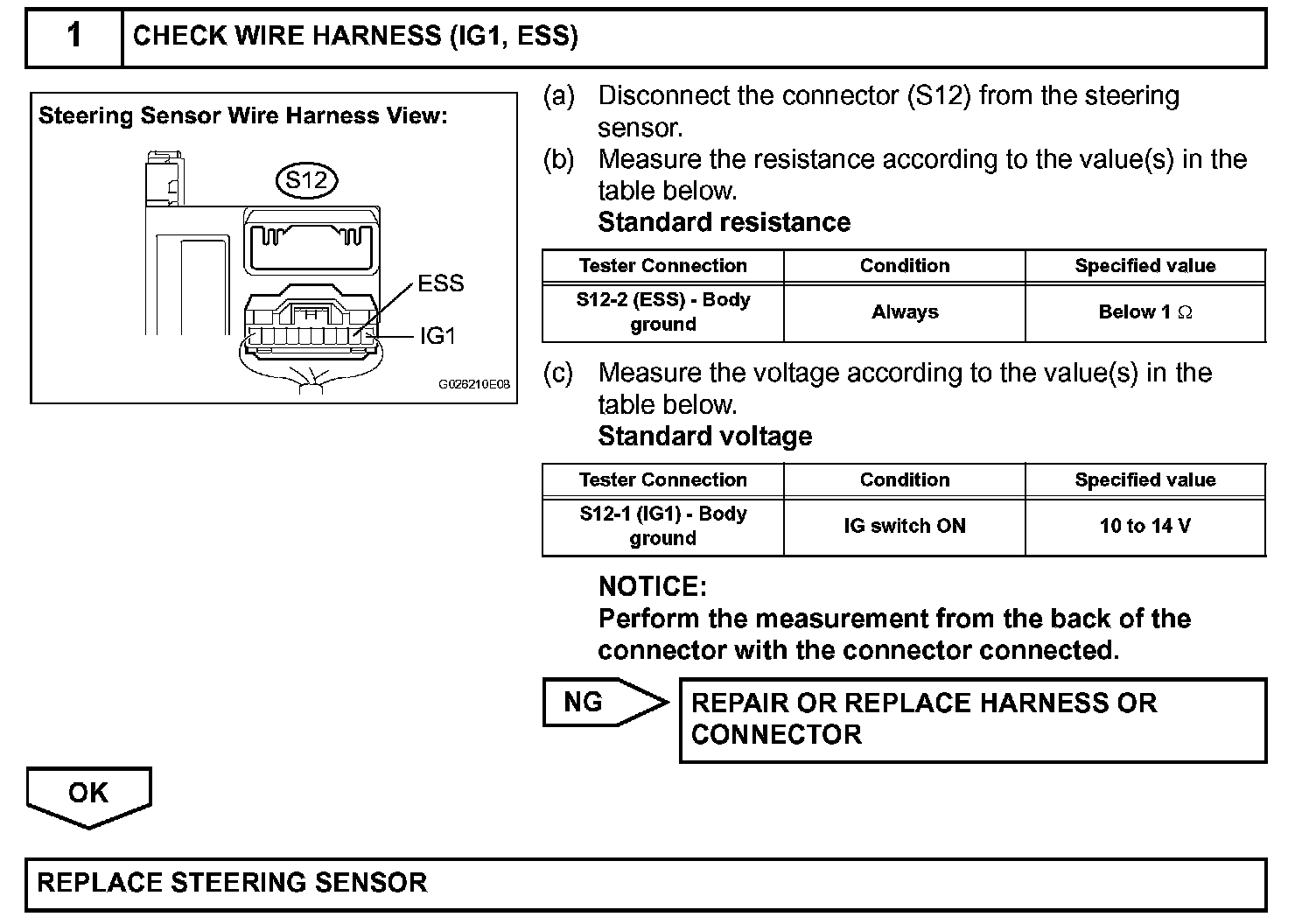

Step 1:
