Disconnection of Male and Female Connectors

DISCONNECTION OF MALE AND FEMALE CONNECTORS

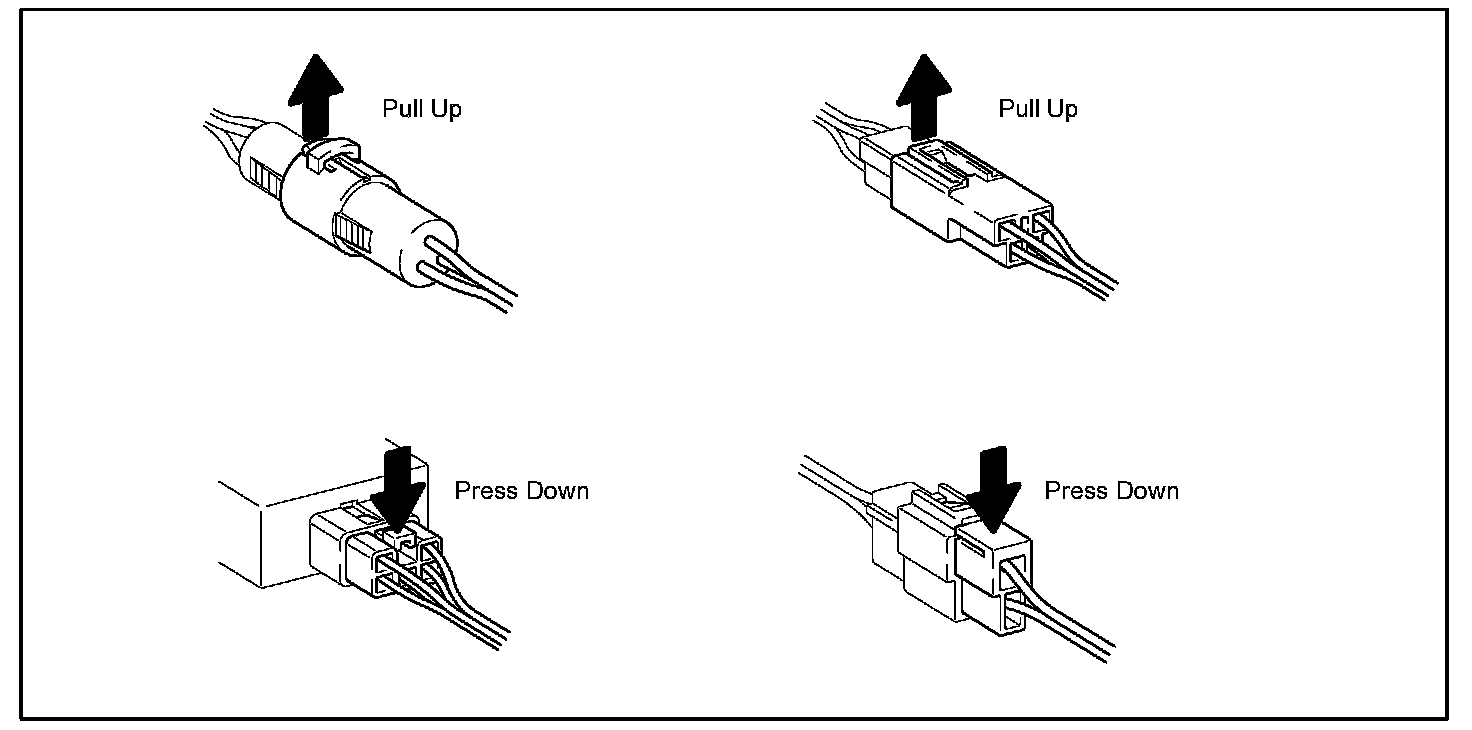

To pull apart the connectors, pull on the connector itself, not the wire harness.

HINT: Check to see what kind of connector you are disconnecting before pulling apart.
