O/D Main Switch Circuit

O/D Main Switch Circuit

DESCRIPTION
The O/D main switch (transmission control switch) is a momentary type switch. When pressing the O/D main switch, the O/D OFF indicator light lights up and the ECM prohibits shifting into O/D, and when pressing it once again, the O/D OFF indicator light goes off and the ECM allows shifting into O/D. Turning the IG switch OFF will reset the O/D OFF indicator light.

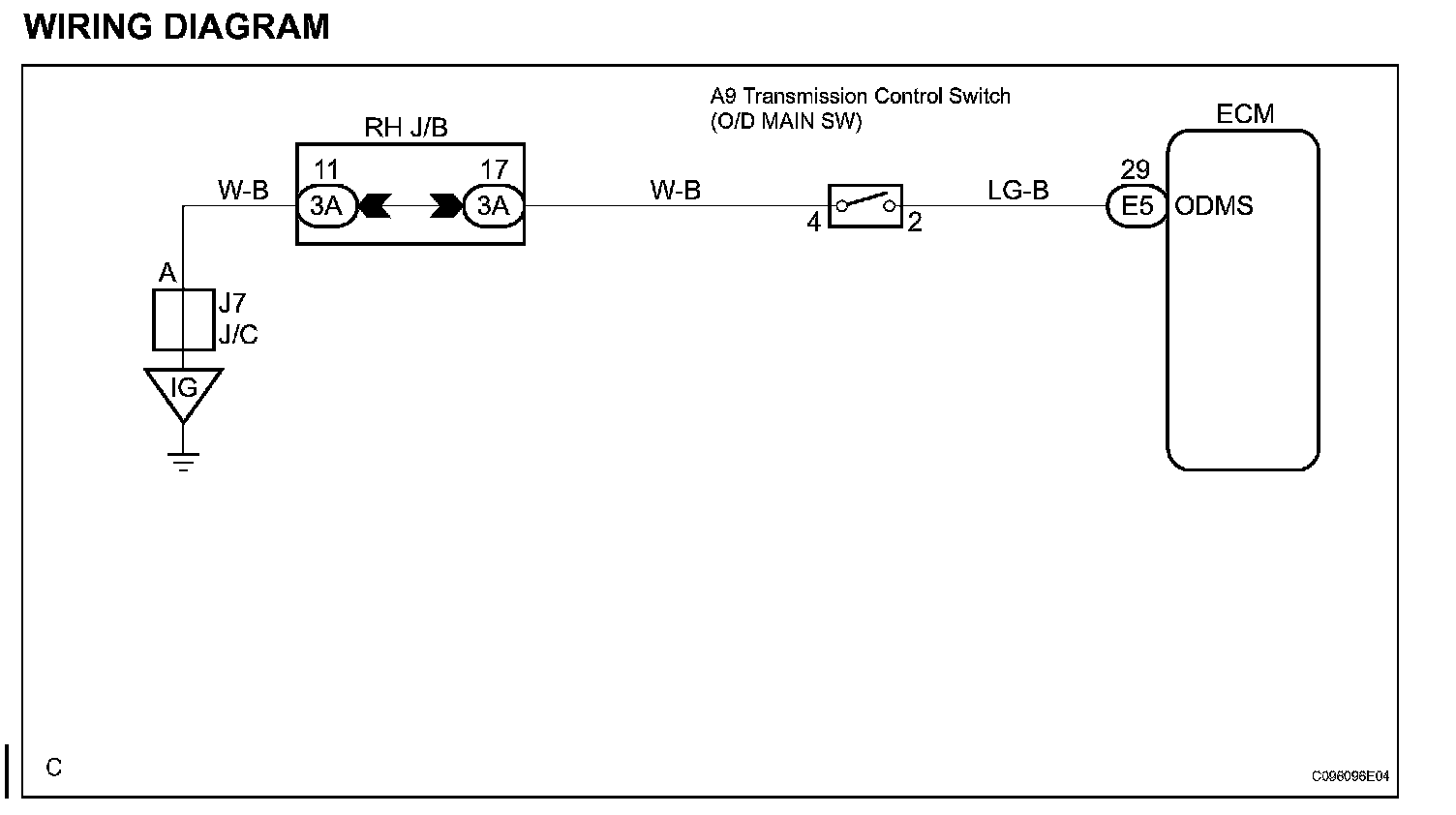

WIRING DIAGRAM:





INSPECTION PROCEDURE

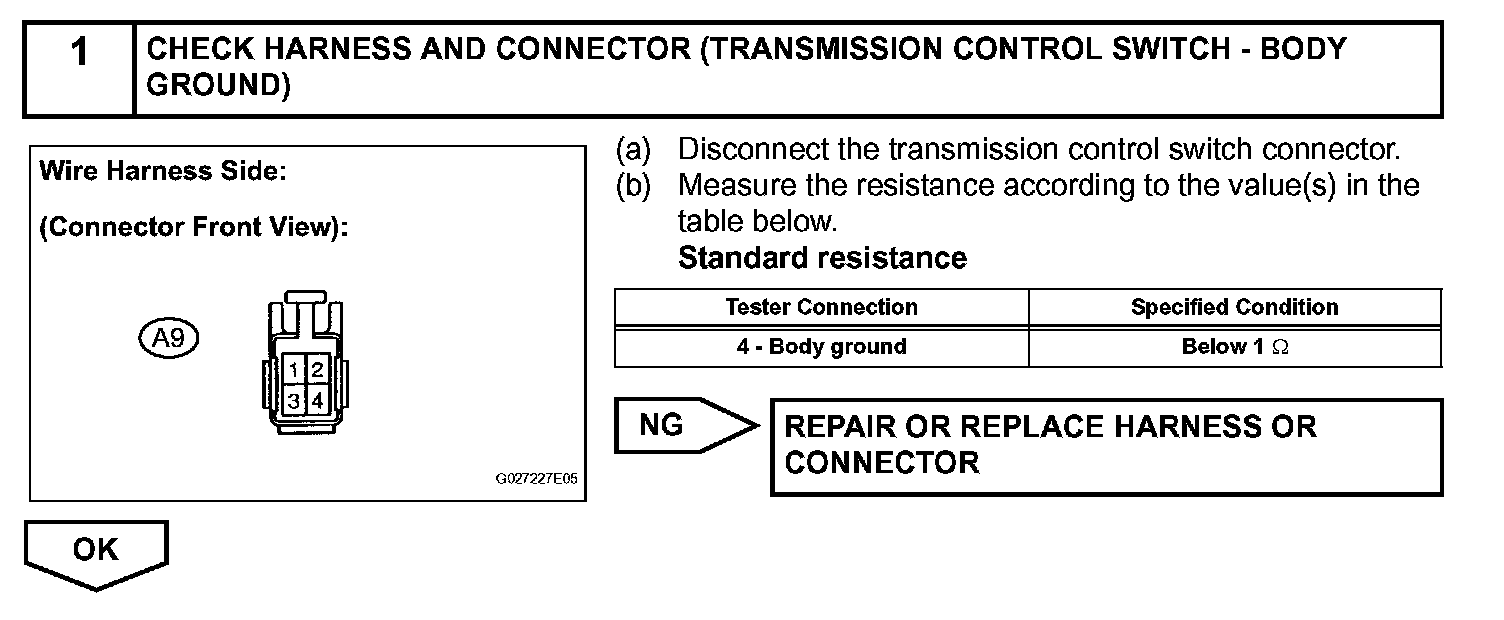

Step 1:

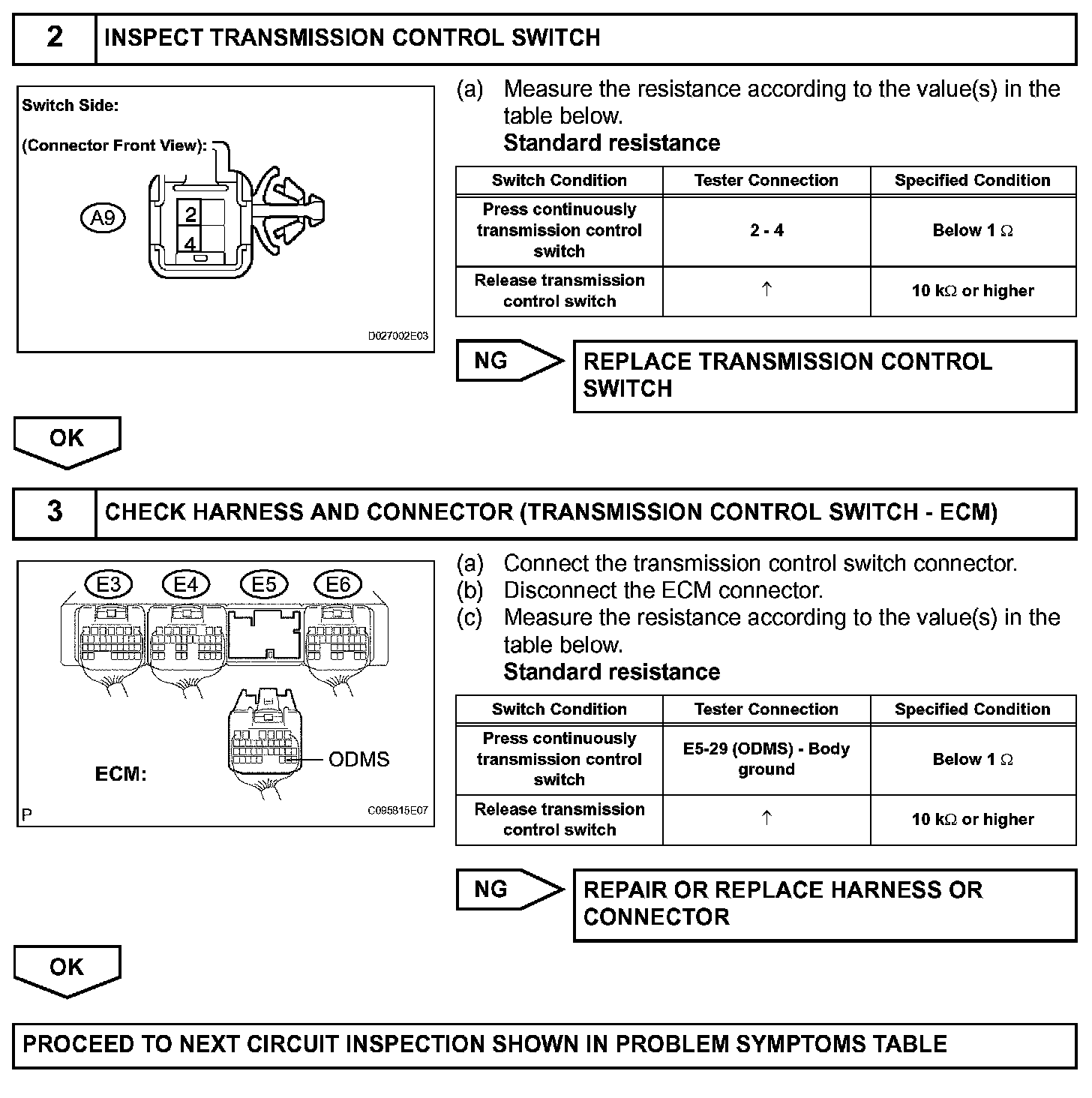

Step 2-3:
