Alignment

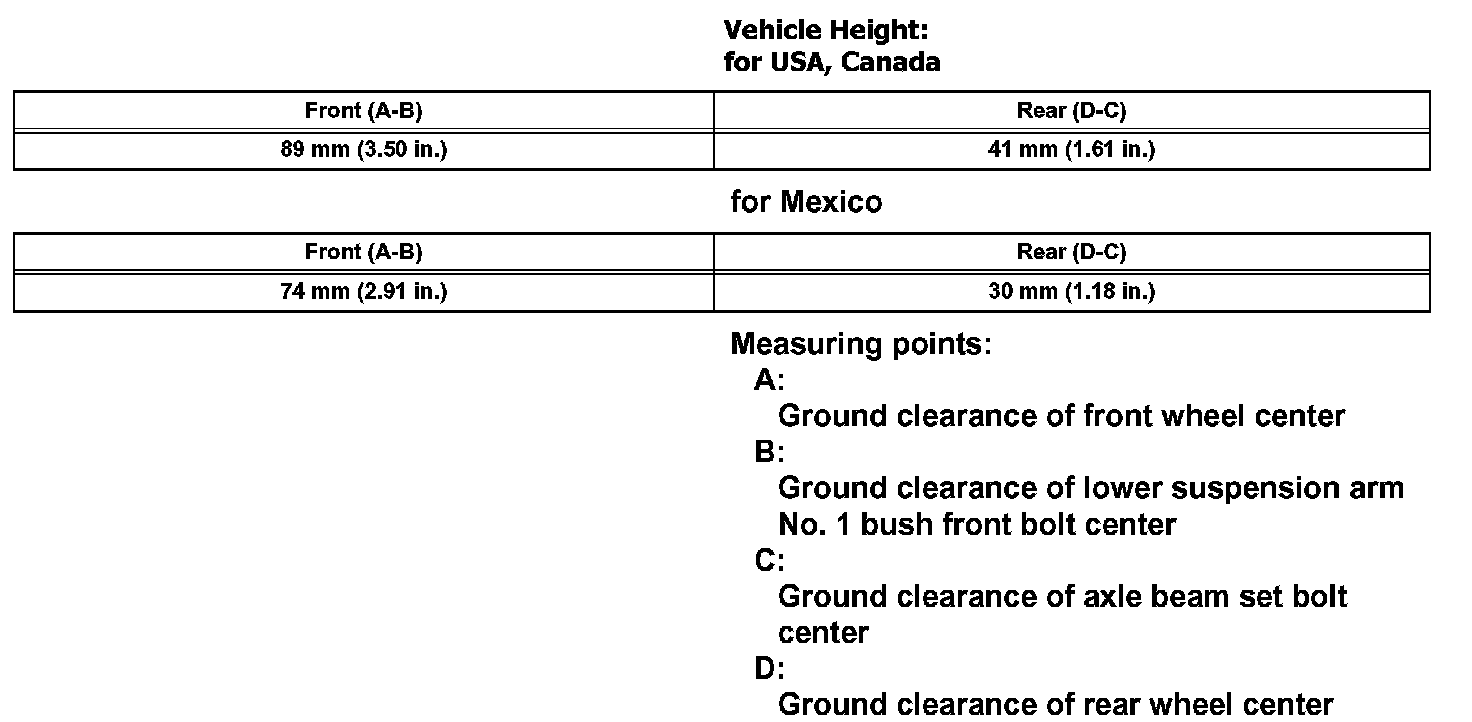

FRONT VEHICLE HEIGHT

Vehicle Height:

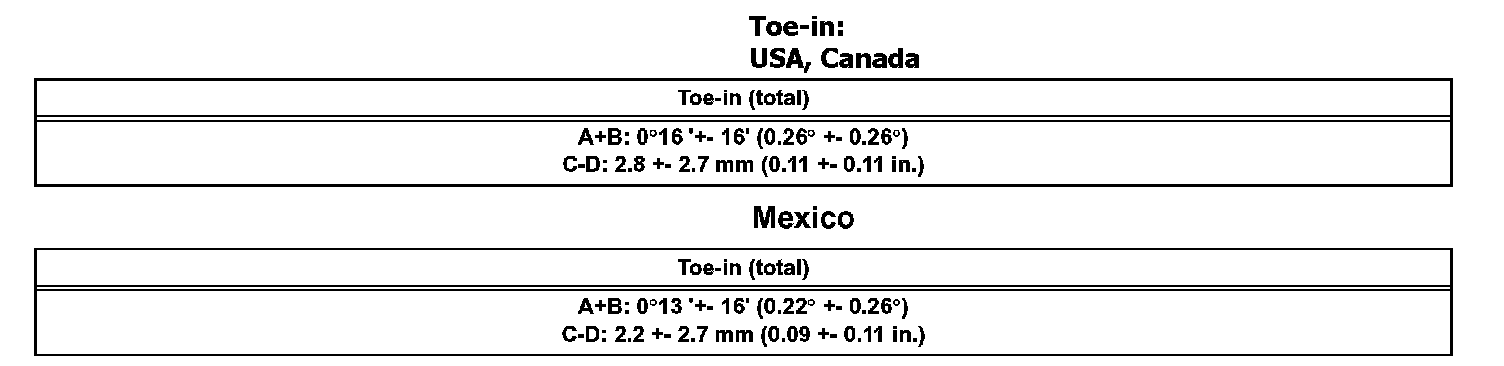

FRONT TOE-IN

Toe-in:

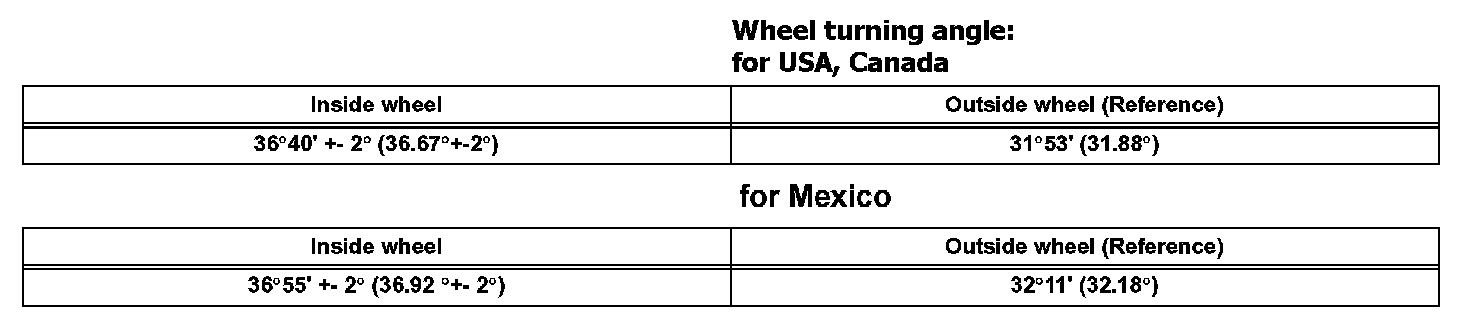

FRONT WHEEL ANGLE

Wheel turning angle:

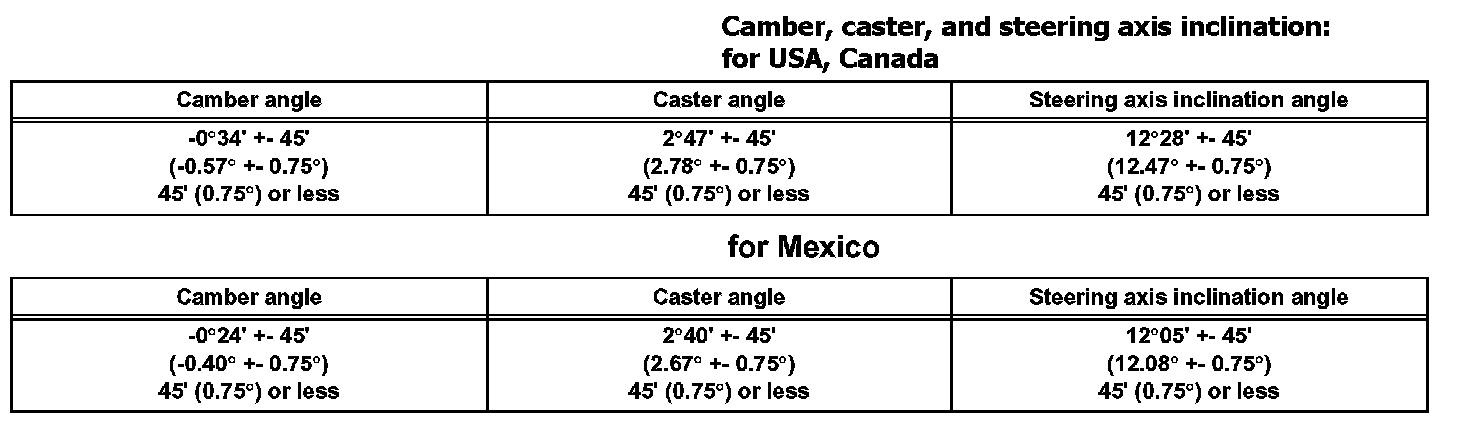

FRONT CAMBER, CASTER AND STEERING AXIS INCLINATION

Camber, caster, and steering axis inclination:

FRONT CAMBER

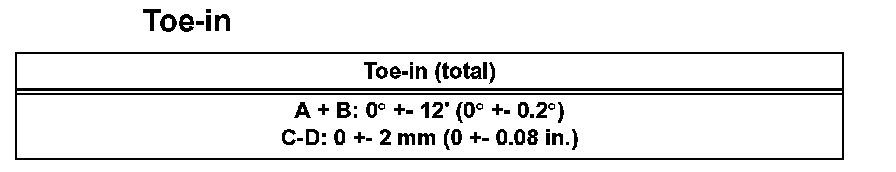

REAR TOE-IN

Toe-in:

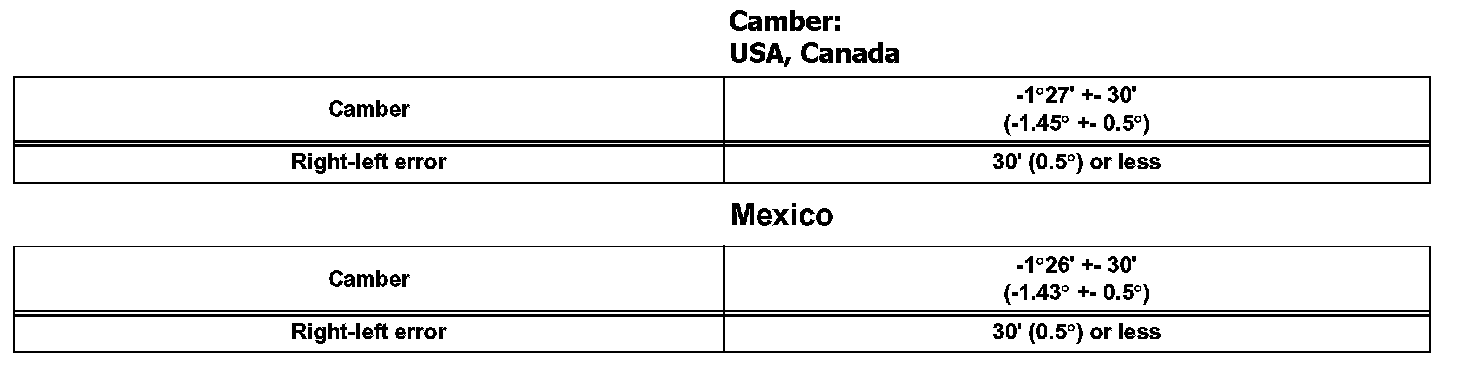

REAR CAMBER

Camber:
